Steele Products SP-GG750E - Manual (Page 37)

Owner’s Manual
36
Parts List

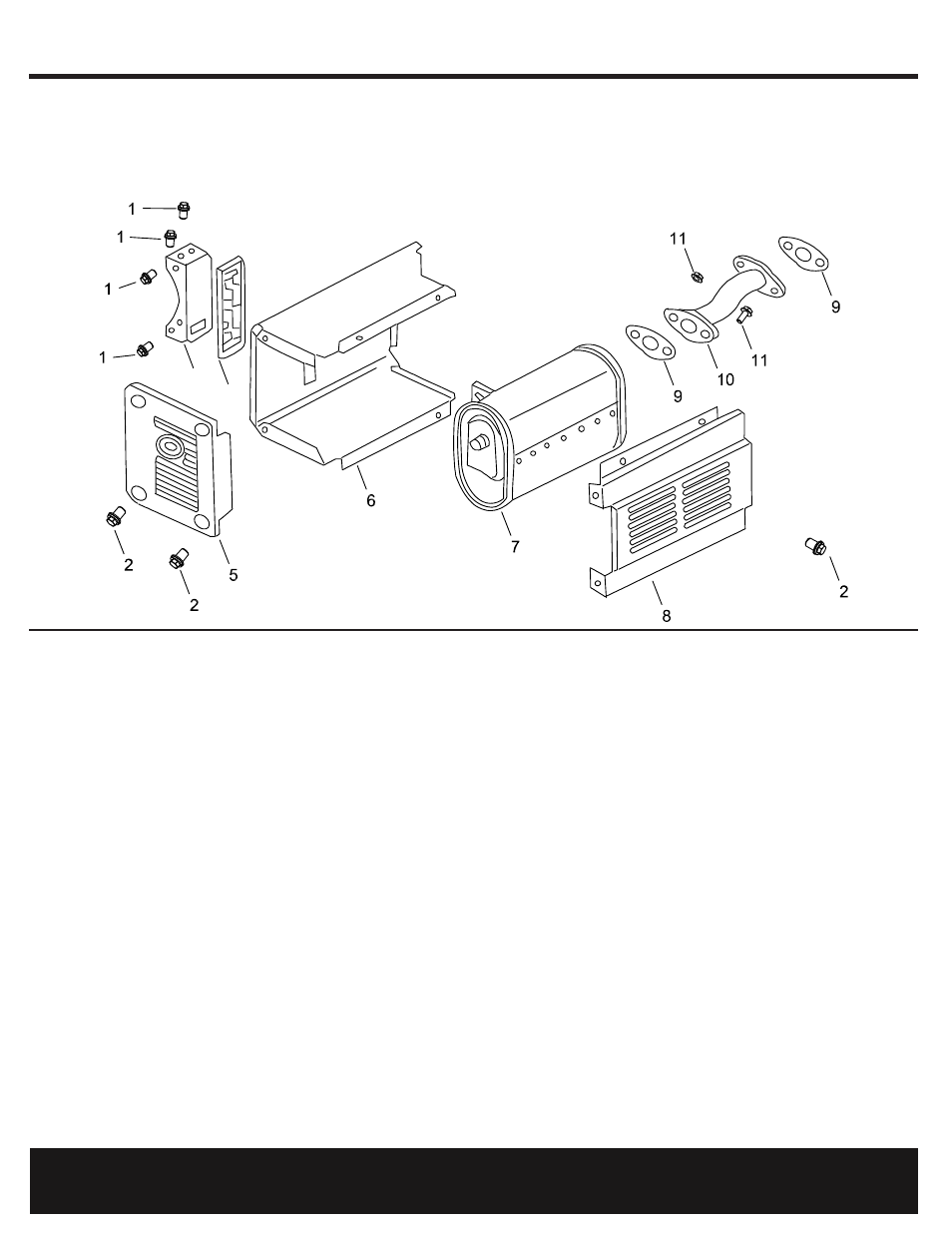

Muffler Assy.
N
APA Part No. Description Part. No
APG3009-N-01-JD FLANGE BOLT (M8 X 16) JD3800-B-01
APG3009-N-02-JD FLANGE BOLT (M6 X 12) JD3800-B-02
APG3009-N-03-JD MUFFLER STAY COMP. JD3800-B-03
APG3009-N-04-JD MUFFLER PROTECTOR SEAL JD3800-B-04
APG3009-N-05-JD MUFFLER SIDE PROTECTOR JD3800-B-05
APG3009-N-06-JD MUFF. INNER PROTECTOR COMP. JD6500-A-01
APG3009-N-07-JD MUFFLER COMP, JD6500-A-02
APG3009-N-08-JD MUFF. OUTER PROTECTOR COMP. JD3800-B-08
APG3009-N-09-JD EX. PIPE GASKET JD3800-B-09
APG3009-N-10-JD EX PIPE COMP. JD3800-B-10
APG3009-N-11-JD FLANGE BOLT (M8 X 25) JD3800-B-11
APG3009-N-12-JD FLANGE NUT (M8) JD3800-B-12
3
4
