1. Firmware Version of Firmware
2. Rating VA Rated Power Capacity of UPS
3. Rating Voltage Rated Power Voltage of UPS
4. Rating Frequency Connected Frequency Rating of UPS
5. Rating Battery Rated Battery Voltage Used by UPS
6. Input Frequency AC Utility Frequency
7. Input Voltage AC Utility Voltage
8. Output Source Indicating Bypass or On Battery
9. Alarm To Set Situation for Alarm
10. Voltage Sensitivity To Improve Transfer Time and Avoid
Effect of I/P Distortion
11. Outlet Relay ON/OFF Set Delay Time to Control Outlet Relay
On/Off
12. Next Shutdown Time to Next Scheduled Shutdown
13. Next Restart Time to Next Restart
14. AC Source Input Power Source of UPS
15. Battery Condition of Battery
16. Loading Load Percentage of UPS
17. Battery Level Indicates the Remaining Power
Percentage of Battery
18. Selectable Transfer Voltage Change Transfer Voltage
19. Diagram Input & Output Power Flow of UPS
20. Picture General Outlook of UPS
RS232 Pin definition:
NC - - - - - - - - - - - - - - -1 6 - - - - - - - - - - - - - - - -NC
TXD - - - - - - - - - - - - - -2 7 - - - - - - - - - - - - - - - -NC
RXD - - - - - - - - - - - - -3 8 - - - - - - - - - - - - - - - -NC
NC - - - - - - - - - - - - - - -4 9 - - - - - - - - - - - - - - - -NC
Signal Ground - - - - - - -5
*pin2: PC receives line RS232 data from UPS.
*pin3: PC transmits line RS232 data to UPS.
*pin5: signal ground.
*other: not used.
HARDWARE:
BAUD RATE - - - - - - - - - 2400 bps
DATA LENGTH - - - - - - - - - - 8 bits
STOP BIT - - - - - - - - - - - - - - 1 bit
PARITY - - - - - - - - - - - - - - NONE
CABLING:
COMPUTER UPS
RX (pin2) TX (pin2)
TX (pin3) RX (pin3)
GND (pin5) GND (pin5)

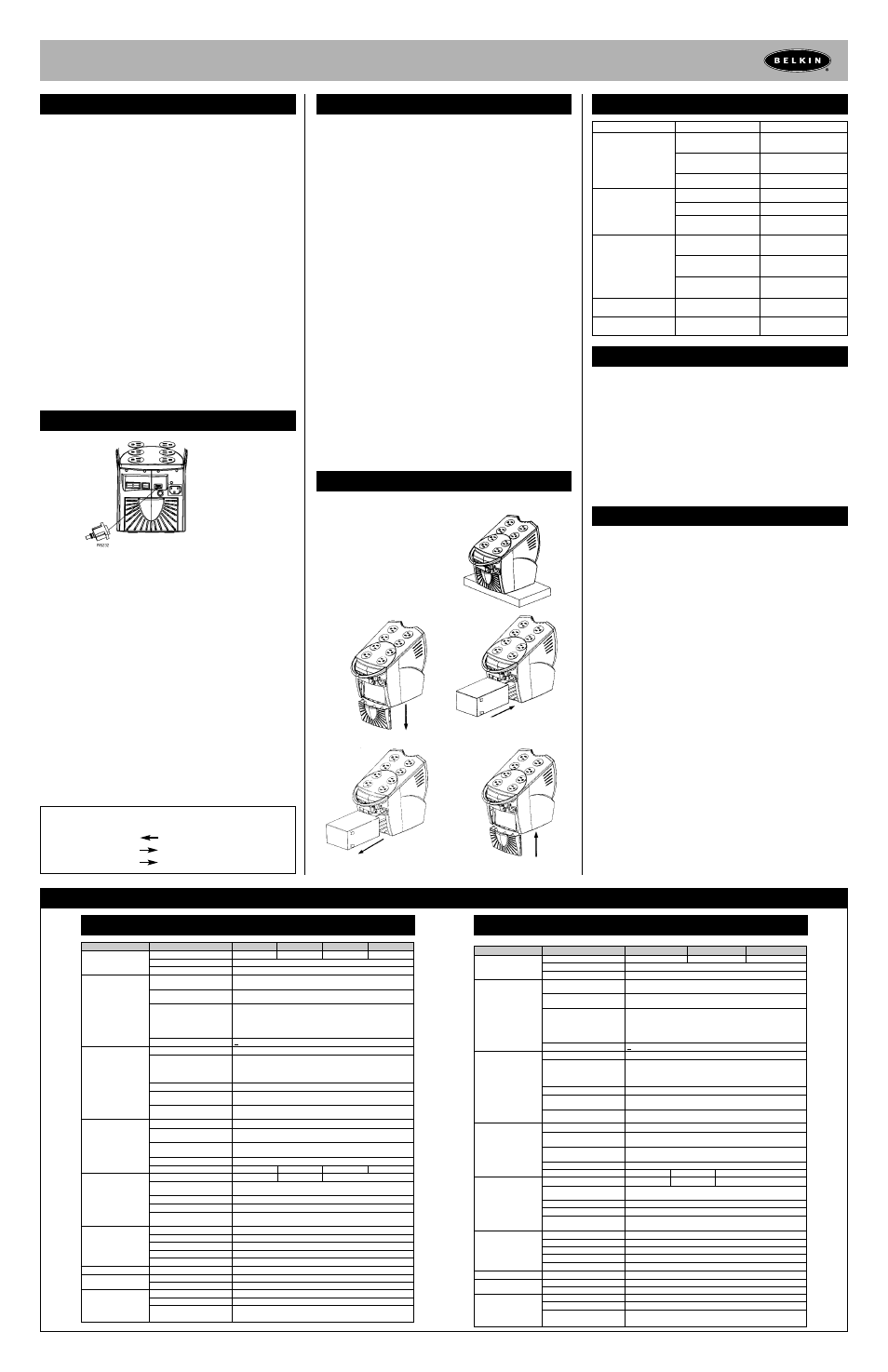

RS232 Interface Port
Battery Replacement
Battery replacement is a safe procedure. You may leave the UPS On and equipment
connected during this procedure. Do not replace the battery when the UPS is “On
Battery”. See page 15 for diagram illustrations.
1. Set the UPS at the edge of a table (Diagram A).
2. Slide the battery compartment cover down (Diagram B).
3. Grasp the tab attached to the battery and slide the battery partially out.
Then grab the battery firmly and remove; the battery wires will disconnect
as the battery is pulled out (Diagram C).
4. Carefully insert the new battery halfway into the UPS. Avoid pinching the
wires (Diagram D).
5. Connect the wires to the new battery according to the following
configuration:
Red wire to red terminal
Black wire to black terminal
6. Carefully insert the battery terminals.
7. Slide the battery compartment cover back into place (Diagram E).
The old battery must be recycled. Deliver the battery to an appropriate recycling facility
or return it to Belkin in the packing carton that came with your new battery. Additional
recycling information is provided with your new battery.
Battery Replacement
Refer Servicing to
qualified service
personnel or contact
Belkin Components.
Diagram A
Diagram B
Slide the battery
compartment cover.
Diagram D
Slide the battery back in.
Avoid pinching
the wires.
Diagram C
Slide the battery
partially out
.
Diagram E
Slide the battery
cover into place.
Battery Replacement (continued)
11.0 Storage Conditions
Store the UPS covered and upright in a cool, dry location, with its battery
fully charged. Before storing, charge the UPS for at least 4 hours.
Disconnect any cables connected to the computer interface port to avoid
unnecessary drainage of the battery.
11.1 Extended Storage
During extended storage in environments where the ambient temperature
is -15°C to +30°C, charge the UPS battery every 6 months.
During extended storage in environments where the ambient temperature
is +30°C to +45°C, charge the UPS battery every 3 months.
PROBLEM POSSIBLE CAUSE SOLUTION
On/off/test/button not pushed or Press the on/off/test button
pushed less than 3 seconds more than 3 seconds
Battery voltage less than 10V Recharge the UPS at least
4 hours
UPS fault Contact service personnel
Power cord loose Replug the power cord
AC breaker is burned out Replace the breaker
Line voltage too high, too low, Normal condition
or black out
Battery not fully charged Recharge the UPS at least
4 hours
UPS is overloaded Remove some unnecessary
loads
Charger fault or Replace battery
other reason
Overload Remove the non-critical loads
Battery failure Replace battery
The UPS continuously
beeps
UPS not on
LED not lit
UPS always at
battery mode
Back-up time too short
Red LED lit
Troubleshooting
Storage
INPUT Capacity 325VA(211W) 425VA(255W) 525VA(315W) 625VA(375W)
Voltage 187 Vac - 280 Vac
Frequency 50Hz or 60Hz ±3Hz (auto sensing)
OUTPUT Voltage Simulated sine wave, 230Vac±8%
(on battery)
Frequency
50Hz or 60Hz ±1Hz
(on battery)
MODEL 325VA 425VA 525VA 625VA
Voltage
Regulation
AVR Smart boost increases 14.8% of voltage if input is 213 to 187 Vac.
Smart trim reduces 12.8% of voltage if input is 247 to 280 Vac
UPS output cut off immediately or input breaker protection
Transfer Time < 4 milliseconds, including detection time
Spike Protection PROTECTION
AND FILTERING
Overload Protection
Modem/Network Single Line (2-Wire, RJ11) Network (UTP, RJ45) compatible jacks, one
input/two output except F6C325 (Series)
Unit Input Breaker for overload and short circuit protection
UPS automatic shutdown if overload exceeds 130% in AC mode and
100% in back-up mode. UPS alarms continuously in > 107% or
<130% in AC mode.
Short Circuit
Depending on computer load...
Type
Protection Automatic self-test and discharge protection, replace
battery indicator
Typical
Recharge Time 4 hours (to 90% of full capacity)
Sealed, maintenance-free lead acid BATTERY
PHYSICAL
ALARM
ENVIRONMENT
INTERFACE
CONFORMANCE
Full/half load
Back-up Time
Net Weight
Dimension
(mm) WDH
Input inlet
Output outlet (UPS)
11.4"x9.6"x12.8"
5.5kg/12.3lbs.
5-17 min 5-24 min.
6kg/13.23lbs 5-32 min 5-41 min.
10A/250V*1pcs, EN60320
10A/250V*4pcs; EN60320/F
10A/250V*4pcs; EN60320/F
Output outlet (Bypass)
Battery Back-Up Slow beeping sound (about 15 sec. interval)
Rapid beeping sound (about 1 sec. interval)
Battery Low
Overload
Fault
Battery test
RS232 Interface
Safety
Surge
Ambient operation
Audible noise
Continuous beeping sound (about 1 sec. interval)
10 sec. beeping sound continuously
Slow beeping sound (about 15 sec. interval)
-15°C – 40°C (with battery)
-15°C – 70°C (without battery)
RS232 Port (except F6C325-Series)
CE, TUV, BSI, NF
Meet IEEE C62.41. Category A standard
0~95%, humidity non-condensing, 0~40°C
<40dBA (1 meter from surface)
150 Joules
6.5kg/14.33lbs.
Storage condition
RS232 Series
INPUT Capacity 350VA(277W) 500VA(300W) 650VA(390W)
Voltage 187 Vac - 280 Vac
Frequency 50Hz or 60Hz ±3Hz (auto sensing)
OUTPUT Voltage Simulated sine wave, 230 Vac±8%
(on battery)
Frequency
50Hz or 60Hz ±1Hz
(on battery)
MODEL 350VA 500VA 650VA
Voltage
Regulation
AVR Smart boost increases 14.8% of voltage if input is 213 to 187 Vac.
Smart trim reduces 12.8% of voltage if input is 247 to 288 Vac
UPS output cut off immediately or input breaker protection
Transfer Time < 4 milliseconds, including detection time
Spike Protection PROTECTION
AND FILTERING
Overload Protection
Modem/Network Single Line (2-Wire, RJ11) Network (UTP, RJ45) compatible jacks, one
input/two output
Unit Input Breaker for overload and short circuit protection
UPS automatic shutdown if overload exceeds 130% in AC mode and
100% in back-up mode. UPS alarms continuously in > 107% or
<130% in AC mode.
Short Circuit
Depending on computer load...
Type
Protection Automatic self-test and discharge protection, replace
battery indicator
Typical
Recharge Time 4 hours (to 90% of full capacity)
Sealed, maintenance-free lead acid BATTERY
PHYSICAL
ALARM
ENVIRONMENT
INTERFACE
CONFORMANCE
Full/half load
Back-up Time
Net Weight
Dimension
(mm) WDH
Input inlet
Output outlet (UPS)
11.4"x9.6"x12.8"
5.5kg/12.3lbs.
5-20 min 5-30 min.
6kg/13.23lbs 5-45 min
10A/250V*1pc, EN60320
10A/250V*4pcs; ENG60320/F
10A/250V*4pcs; ENG60320/F
Output outlet (Bypass)
Battery Back-Up Slow beeping sound (about 15 sec. interval)
Rapid beeping sound (about 1 sec. interval)
Battery Low
Overload
Fault
Battery test
USB Interface
Safety
Surge
Ambient operation
Audible noise
Continuous beeping sound (about 1 sec. interval)
10 sec. beeping sound continuously
Slow beeping sound (about 15 sec. interval)
-15°C – 40°C (with battery)
-15°C – 70°C (without battery)
USB Port
CE, TUV, BSI, NF
Meet IEEE C62.41. Category A standard
0~95%, humidity non-condensing, 0~40°C
<40dBA (1 meter from surface)
150 Joules
6.5kg/14.33lbs.
Storage condition
USB Series
CE Declaration of Conformity
We, Belkin Components, declare under our sole responsibility that the F6C325u-
220V, F6C425u-220V, F6C525u-220V, F6C625u-220V, to which this declaration
relates, is in conformity with Generic Emissions Standard EN50081-1 and with
Generic Immunity Standard EN50082-1 1992 to which this declaration relates, is
in conformity with Generic Emissions Standard EN50081-1 and with Generic
Immunity Standard EN50082-1 1992.
Belkin Components Two-Year Product Warranty
Belkin Components warrants this product against defects in materials and
workmanship for two years. If a defect is discovered, Belkin will, at its option,
repair or replace the product at no charge, provided it is returned during the
warranty period, with transportation charges prepaid, to the authorized Belkin
dealer from whom you purchased the product. Proof of purchase may be
required.
This warranty does not apply if the product has been damaged by accident,
abuse, misuse, or misapplication; if the product has been modified without the
written permission of Belkin; or if any Belkin serial number has been removed or
defaced.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU
OF ALL OTHERS, WHETHER
ORAL OR WRITTEN, EXPRESSED OR IMPLIED. BELKIN SPECIFICALLY
DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT
LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
No Belkin dealer, agent, or employee is authorized to make any modification,
extension, or addition to this warranty.
BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY,
OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO
LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPROGRAMMING,
OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH
BELKIN PRODUCTS.
Specifications (USB Series)
UPS Uninterruptible Power Supply User Manual
P73446-B • Page 2
The RS232 communication port
provides the following features:
1.
Monitoring charger status
2. Monitoring battery status
and condition
3. Monitoring inverter status
4. Monitoring UPS status
5. Monitoring the utility status
6. Providing the power switch function for the computer to turn on/off the
utility on schedule. To save power, UPS data will be provided at 2400 baud
rate and is made up of 8-bit, 1-stop-bit, and no parity-bit. All the information
is provided in ASCII format.
The average life of a battery is 3-5 years before ever needing to be replaced.
EcoPower Battery Replacement Program ™
In the event that the UPS needs a battery replacement, Belkin offers its EcoPower
Battery Replacement Program
™ . This program offers a battery replacement and full
service check on your UPS to ensure it is working properly to protect your connected
devices. It also ensures that the battery in the UPS is discarded properly in an effort to
keep our environment clean. All participants in the program will receive a two-year
extended product warranty. Please call Belkin Components for detailed information
regarding the cost of the program and shipping procedures.
USB Interface Port
Specifications
