2
Deciding on a Mode for Initial AirStation Configuration
Ạ Wired Connection (recommended)
ạ Wireless Connection
Do not connect the AirStation to your existing network
until configuration of the AirStation is complete!
Step Ẅ
Connect your computer to the AirStation
Buffalo recommends using a wired connection, meaning your computer is physically
connected to the
AirStation with a CAT5 cable plugged into any one of the four
10/100M Ethernet LAN port. This type of setup will eliminate possible setup prob-
lems due to any issues with the wireless adapter on the computer being used to
configure the
AirStation.
A Web browser version 4.5 or later should be used to configure the
AirStation.

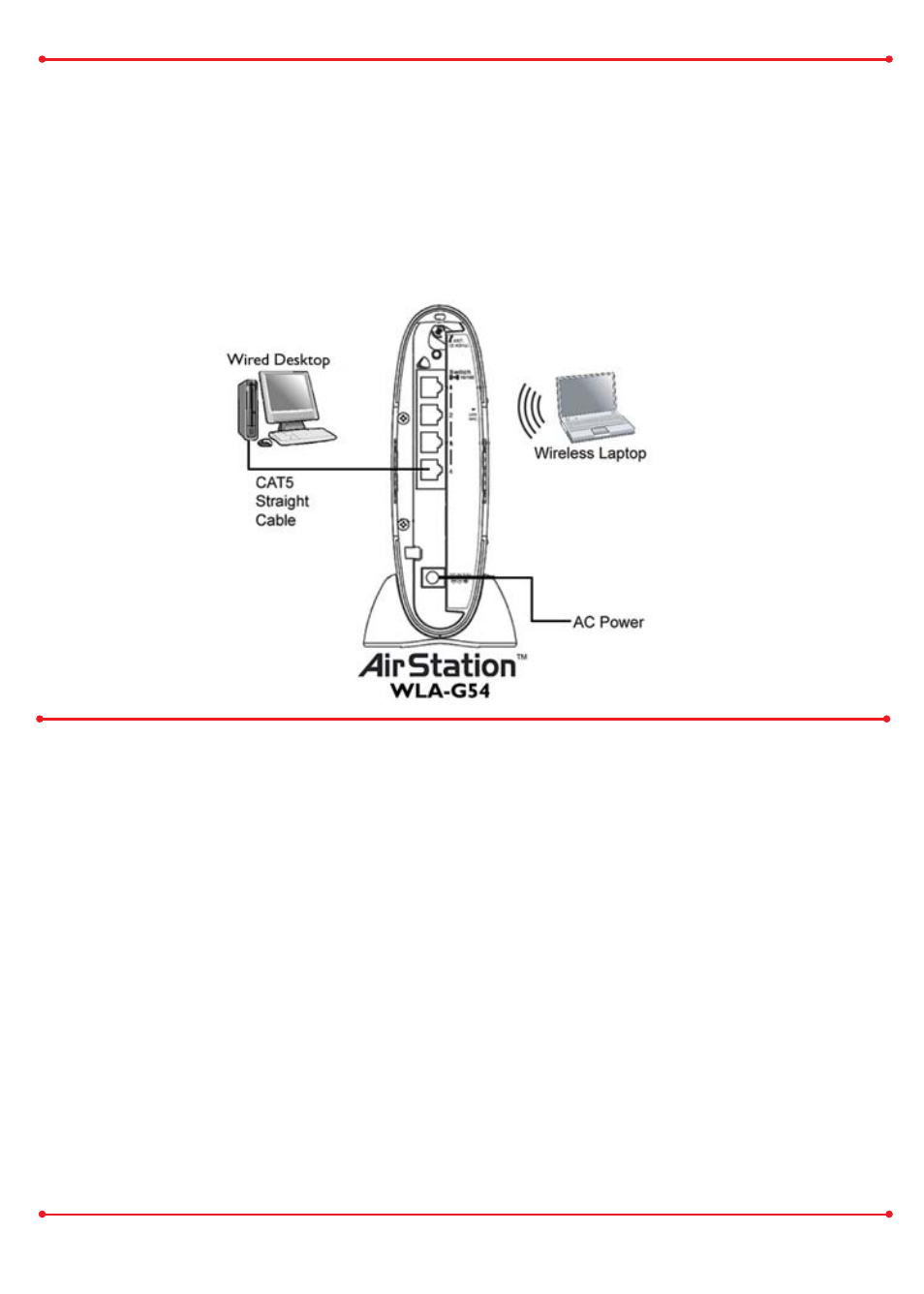

Using the provided CAT5 Ethernet Cable, connect one end into any one of the
four (4) 10/100M Ethernet ports on the AirStation and the other to your comput-
er’s available Ethernet port. Figure shown above.
Ạ ạ
Ạ Wired Configuration
