Setting up – Bose Wave Radio User Manual

Page 11

CD changer, tape
deck, or VCR

Audio output jacks

If there are two sets of
outputs (fixed and
variable), use fixed so
that the volume can
be controlled from the
Wave Radio/CD.

AUX IN jacks

Television or
computer

Audio output jacks

If there are two sets of
outputs (fixed and
variable), use fixed so
that the volume can
be controlled from the
Wave Radio/CD.

AUX IN jacks

Stereo cable with
male-to-male RCA
plugs

AUX IN jacks

Bose

Lifestyle

music system

Powered speakers
with volume
control

Speaker system input
(as described in the
speaker owner’s
manual)

LINE OUT jacks

Headphone jack

For best sound, set
the player volume
control to approxi-
mately

of maximum

volume.

Portable tape player

AUX IN jacks

One miniplug-to-
stereo audio cable

Use the audio input
cable that came with
your speakers.

If your powered speaker audio input
cable has three connectors on each
end, use only the two connectors that
look alike to connect to the Wave
Radio/CD outputs. DO NOT USE THE
THIRD CONNECTOR.

Connecting speakers to the LINE OUT
jacks (fixed output) does not shut off
the Wave Radio/CD speakers, although
they can be MUTED while listening to
the external speakers.

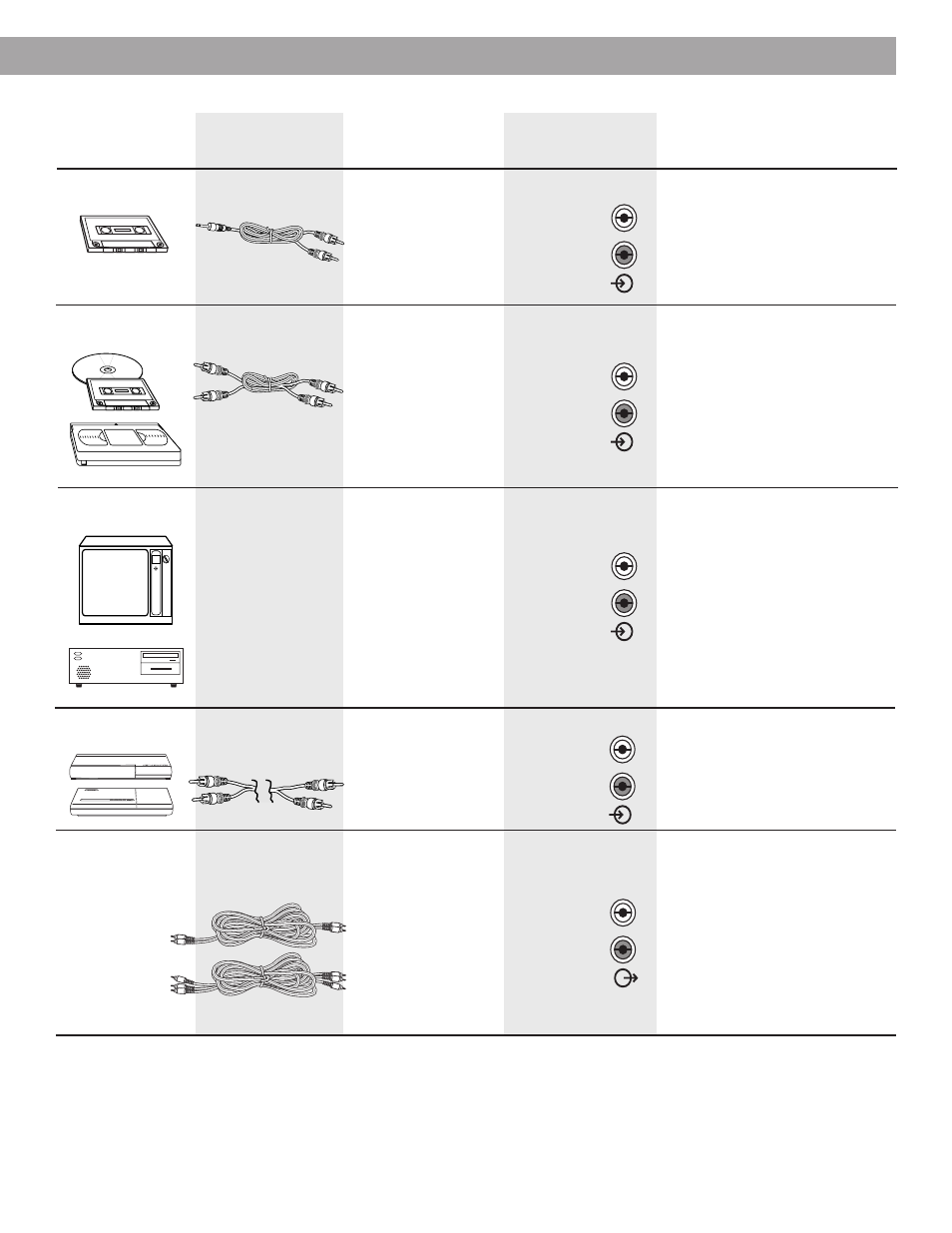

Setting Up

Connection at

Component

Cable

component

Wave Radio/CD

Note

Use a standard RCA
cable for a TV with
stereo output jacks.

Use a standard Y
adapter for a TV with a
single (mono) audio
output jack.

You may need a special
adapter (such as a
miniplug stereo audio
cable) for a TV with a
headphone outlet.

TAPE (REC) jacks

One stereo audio
cable

You can record from your Wave

Radio/CD using the connections from
the LINE OUT jacks.

To make sure the sound seems to
come from the screen, place the
Wave Radio/CD within a few feet of
the TV. If there is any interference
with the TV picture, move the Wave
Radio/CD farther away.

CAUTION:

To prevent interference

with the screen image, keep the
Wave Radio/CD at least 12 inches
from the TV, a computer, or other
monitors.

AUX

LINE

OUT
