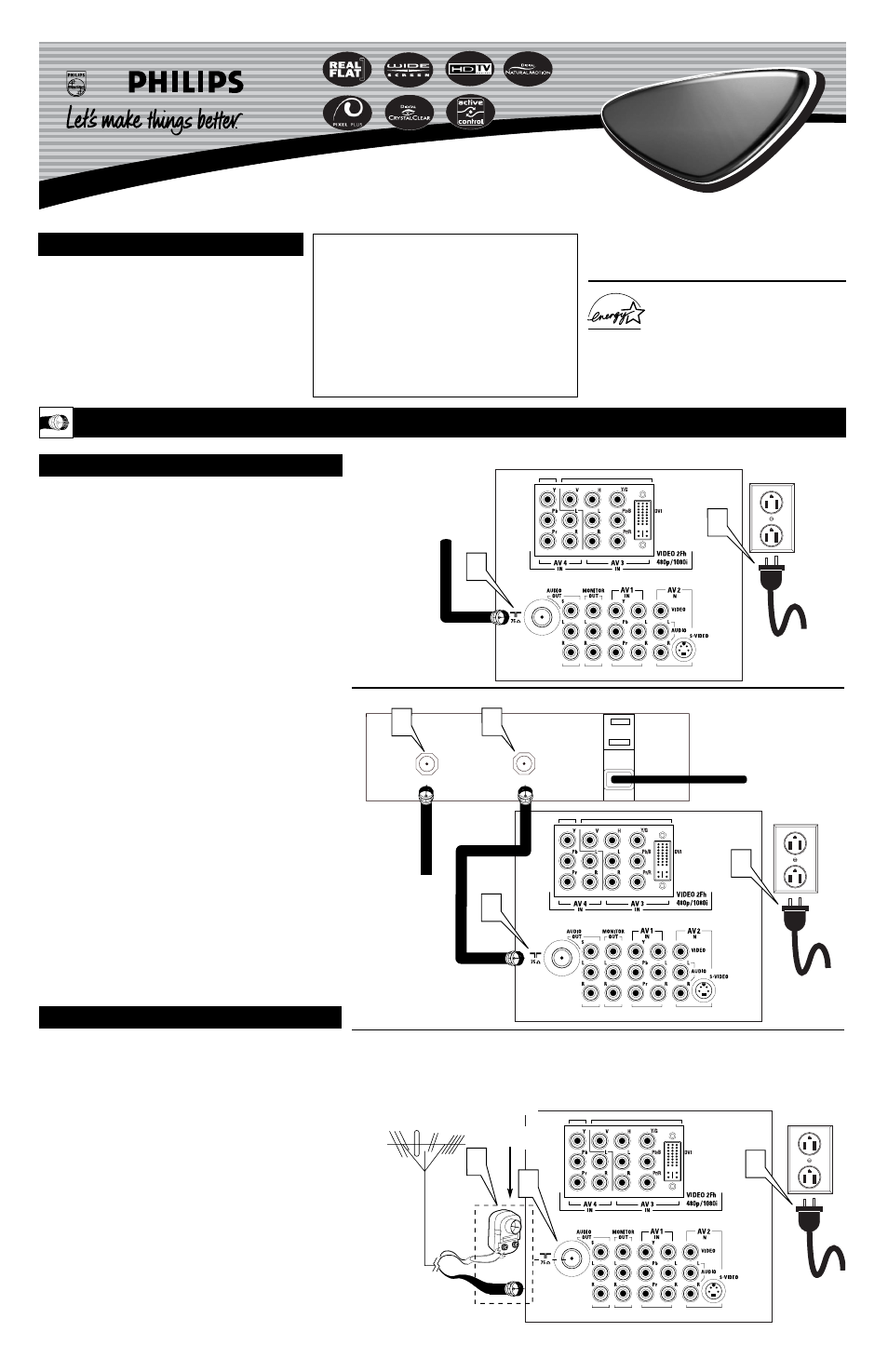

background image

Quick Use and Setup Guide

B

ASIC

TV C

ONNECTIONS

1

2

Important Notice/Warning . . . . . . . . . . . . . . . . . . . . . .1
Making Basic TV Connections
Basic Cable TV Connections . . . . . . . . . . . . . . . . . . . .1
Basic Antenna TV Connections . . . . . . . . . . . . . . . . . .1
Basic TV and Onscreen Menu Operation . . . . . . . . . . .2
Remote Battery Installation . . . . . . . . . . . . . . . . . . . . .3
Remote Control Button Descriptions . . . . . . . . . . . . . .3
Using the Language Control . . . . . . . . . . . . . . . . . . . . .4
How to Automatically Program Channels . . . . . . . . . .4
How to Use the Demo Feature . . . . . . . . . . . . . . . . . . .4

IMPORTANT

NOTE: This owner's manual is used with

several different television models. Not all
features (and drawings) discussed in this
manual will necessarily match those found
with your television set. This is normal and
does not require that you contact your deal-
er or request service.

Color TV

Color TV

C

ONTENTS

Y

our Cable TV input into your home may be a single (75
ohm) cable or a converter box installation. In either

case, the connection to the TV is very easy. Follow the steps
below to connect your cable signal to your new television.

If your cable signal comes directly from a round 75

coaxial

cable use the following steps:

1

Connect the open end of the round Cable Company sup-

plied cable to the 75

Ω input on the TV. Screw it down finger

tight.

2

Plug the television into the wall outlet and turn the TV on.

Refer to the AUTOPROGRAM feature to program all the
available channels on your cable signal.

If your cable signal comes from a cable box, use the following
steps:

3

Connect the open end of the round Cable Company sup-

plied cable to the cable signal IN(put) plug on the back of
the Cable Box.

4

Using a separate round coaxial cable, connect one end to the

OUT(put) plug on the back of the Cable Box.

5

Connect the other end of the round coaxial cable to the

75

Ω input on the back of the television. Screw it down finger

tight.

6

Plug the television into the wall outlet and turn the TV on.

Refer to the TUNER and AUTOPROGRAM features on page
4 of this Quick Use Guide. TUNER should be set to the
CABLE option. AUTOPROGRAM can be set to program all
the available channels on your cable signal into the televi-
sion’s memory.

C

ABLE

TV

OUTPUT

INPUT

5

6

3

4

Direct Cable
Connection:

Cable Box Connection:

Cable signal coming from

Cable Company (Round

75

Ω coaxial cable)

Jack Panel

Back of TV

AC Power

Wall Outlet

Power Plug

from back of TV

Jack Panel Back

of Cable Box

Cable Signal IN from

the Cable Company

Round 75

Coaxial Cable

Jack Panel

Back of TV

AC Power

Wall Outlet

Power Plug

from back of TV

A

combination antenna receives normal broadcast chan-
nels (VHF 2–13 and UHF 14–69). Your connection is

easy because there is only one 75

(ohm) antenna plug on

the back of your TV, and that’s where the antenna goes.

1

If your antenna has a round cable (75 ohm) on the end,

then you're ready to connect it to the TV.
If your antenna has flat, twin-lead wire (300 ohm), you
first need to attach the antenna wires to the screws on a
300- to 75-ohm adapter.

2

Push the round end of the adapter (or antenna) onto the

75

Ω (ohm) plug on the back of the TV. If the round end of

the antenna wire is threaded, screw it down finger tight.

3

Plug the television into the wall outlet and turn the TV

on. Refer to the TUNER and AUTOPROGRAM features on
page 4 of this Quick Use Guide. TUNER should be set to the
ANTENNA option. AUTOPROGRAM can be set to program
all the available channels on your cable signal into the televi-
sion’s memory.

A

NTENNA

TV

1

3

2

Antenna Connection:

Jack Panel, Back of TV

Power Plug

from back

of TV

AC Power

Wall Outlet

Round 75

Ω Coaxial

Cable from Antenna

Twin

Lead Wire

300 to 75-ohm

Adapter

Outdoor or Indoor Antenna

(Combination VHF/UHF)

The combination antenna receives normal

broadcast channels 2-13 (VHF) and 14-69 (UHF).

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD DO NOT EXPOSE THIS UNIT TO
RAIN OR EXCESSIVE MOISTURE.

As an Energy Star® Partner, Philips

Consumer Electronics has determined this

product meets the Energy Star® guidelines

for energy efficiency. Energy Star® is a U.S. registered

mark. Using products with the Energy Star® label can

save energy. Saving energy reduces air pollution and

lowers utility bills.

Cable Box

Power Cord

The signal coming

from the box will

be MONO.
