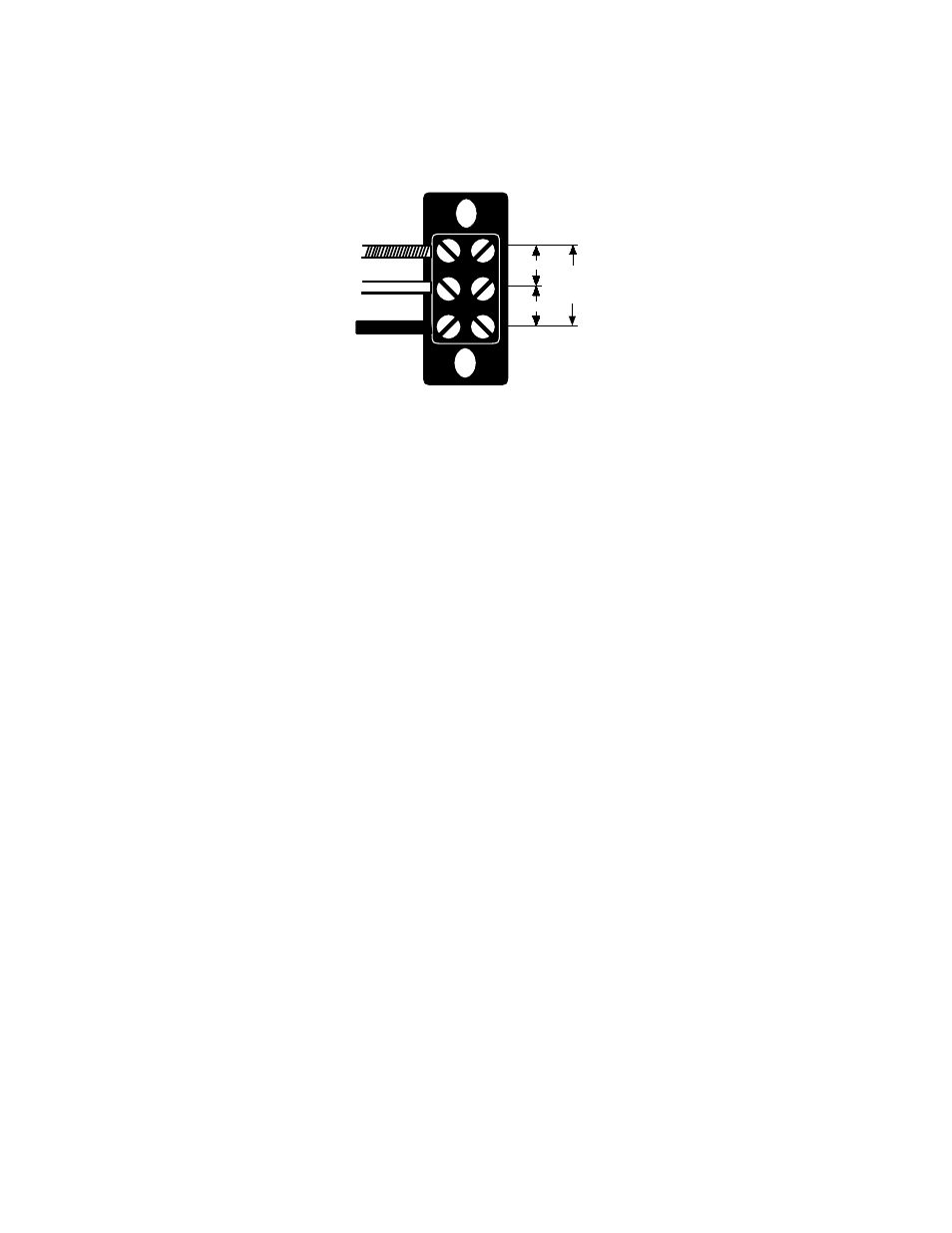

L2 WHITE/VIOLET

WHITE

NEUTRAL

L1 BLACK

120 V.A.C.

120 V.A.C.

208 OR 240 V A.C.

P1841

Requirements for brewers without an attached cord set are as follows:

ELECTRICAL REQUIREMENTS

WARNING - The brewer must be disconnected from the power source until specified in Initial Set-Up.

Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit requirements.

120/208 & 120/240 volt ac models

Note: This electrical service consists

of 3 current carrying conductors

(Neutral, L1 and L2) and a separate

conductor for earth ground.

ELECTRICAL HOOK-UP

CAUTION: Improper electrical installation will damage electronic components.

1. An electrician must provide electrical service as specified.

2. Using a voltmeter, check the voltage and color coding of each conductor at the electrical source.

3. Remove the front panel beneath the sprayheads.

4. Feed the cord through the strain relief and connect it to the terminal block.

5. Connect the brewer to the power source and verify the voltage at the terminal block before proceeding.

Replace the front panel.

6. If plumbing is to be hooked up later be sure the brewer is disconnected from the power source. If plumbing

has been hooked up, the brewer is ready for Initial Set-Up.

37614 062107
