Product Diagrams

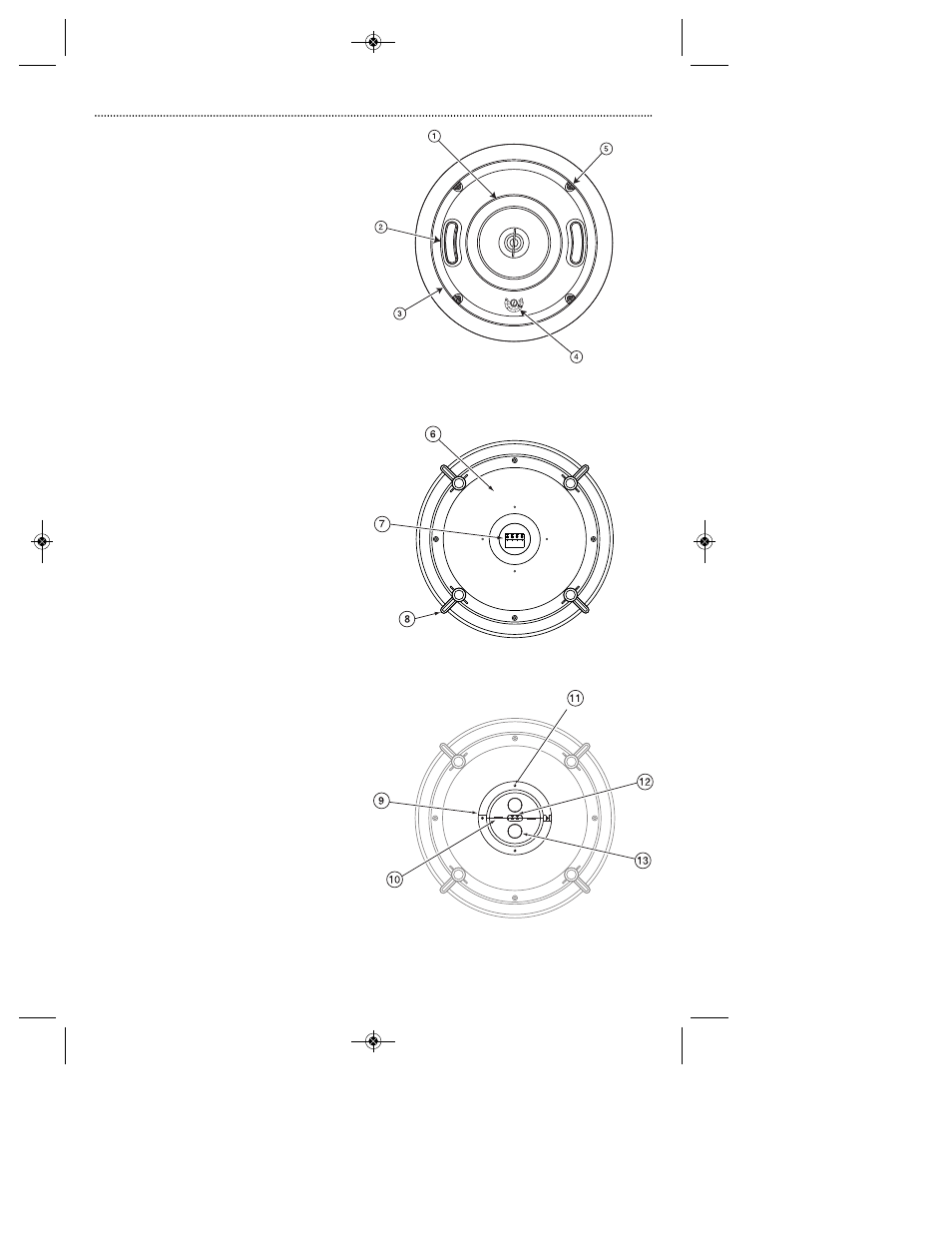

Front Drawing (grille removed)
1. Coaxial Driver Assembly
2. Bass Tuning Vents (x2, HFCS1;
x1, HFCS1LP)
3. Grille Retention Groove
4. Power Tap Selection Switch
5. Mounting Clamp Screws (x4)
Rear Drawing
6. Metal Back Can
7. Snap-Lock Input Connector
8. Mounting Clamps (x4)
Rear Drawing (terminal cover)
9. Terminal Covers (2 identical halves)
10. Eyelets (x2)
11. Mounting Screws (x4)
12. Wire Exit Slot
13. Conduit Knockout (x2)
Front Drawing
(grille removed)
Rear Drawing
Rear Drawing
(terminal cover)
