Briggs & Stratton 01806 - Manual (Page 35)

2650 PSI Pressure Washer
3

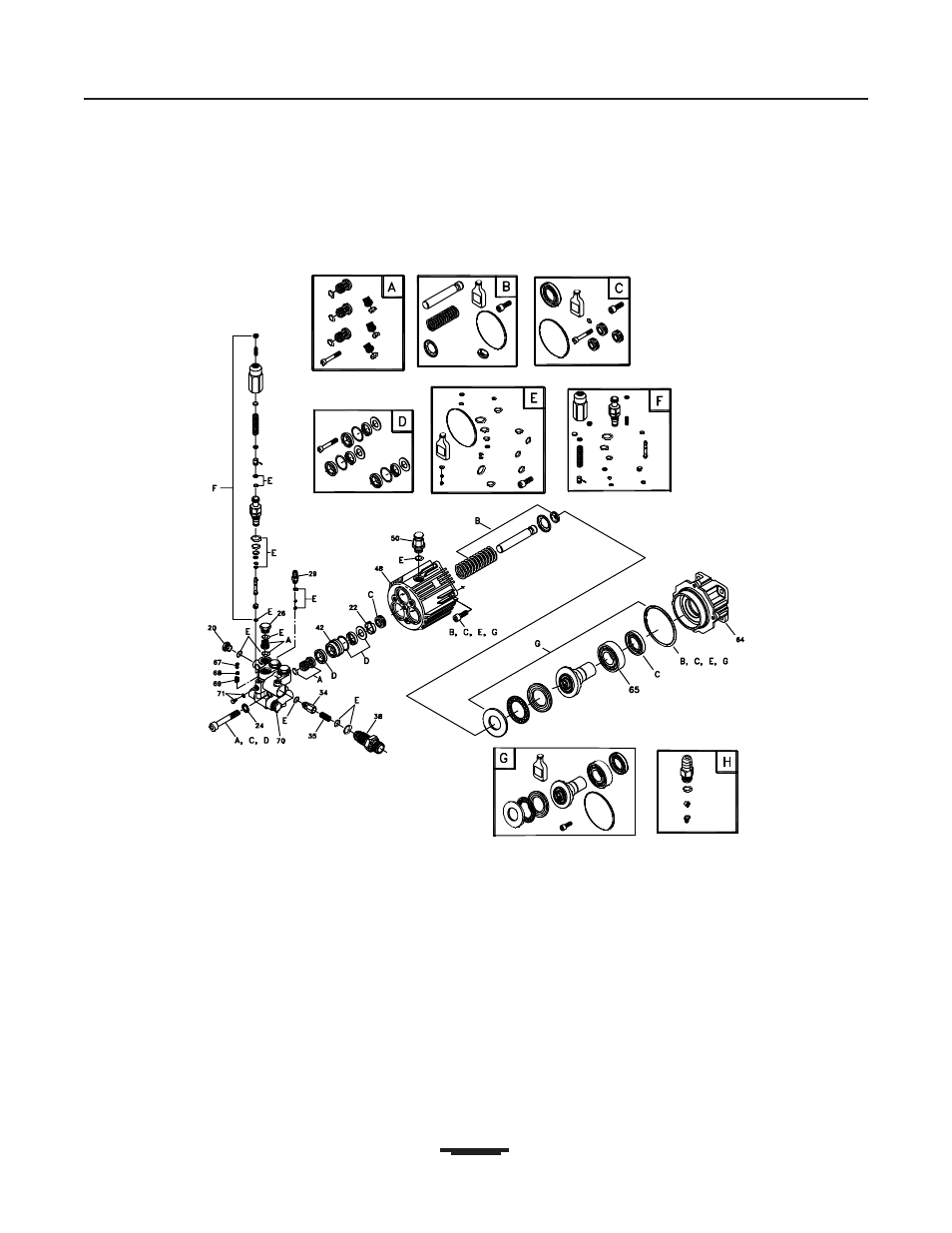

EXPLODED VIEW AND PARTS LIST - PUMP
Item Part # Description
20 190638GS PLUG
22 190639GS SPACER
24 190640GS WASHER
26 190641GS PLUG
29 190642GS HOSE TAIL
34 190643GS JET
35 190644GS SPRING
38 190645GS INJECTOR, Detergent
42 190646GS PISTON, Guide
48 190647GS HOUSING
50 191441GS VENT, CAP
64 193124GS FLANGE
65 193125GS BALL BEARING
67 190651GS GRUB SCREW
68 190652GS BALL
Item Part # Description
69 190653GS SPRING
70 190654GS PUMP HEAD
71 190655GS GRUB SCREW & WASHER
72 190656GS OIL BOTTLE
A 190657GS KIT, CHECK VALVE
B 190658GS KIT, PISTON SET
C 193129GS KIT, SEAL OIL
D 190660GS KIT, SEAL HIGH PRESSURE
E 190677GS KIT, O-RINGS
F 193126GS KIT, UNLOADER
G 193127GS KIT, CAM & BEARING
H 192914GS KIT, CHEMICAL INJECT
NOTE: Item letters A - H are service kits and include all
parts shown within the box.
