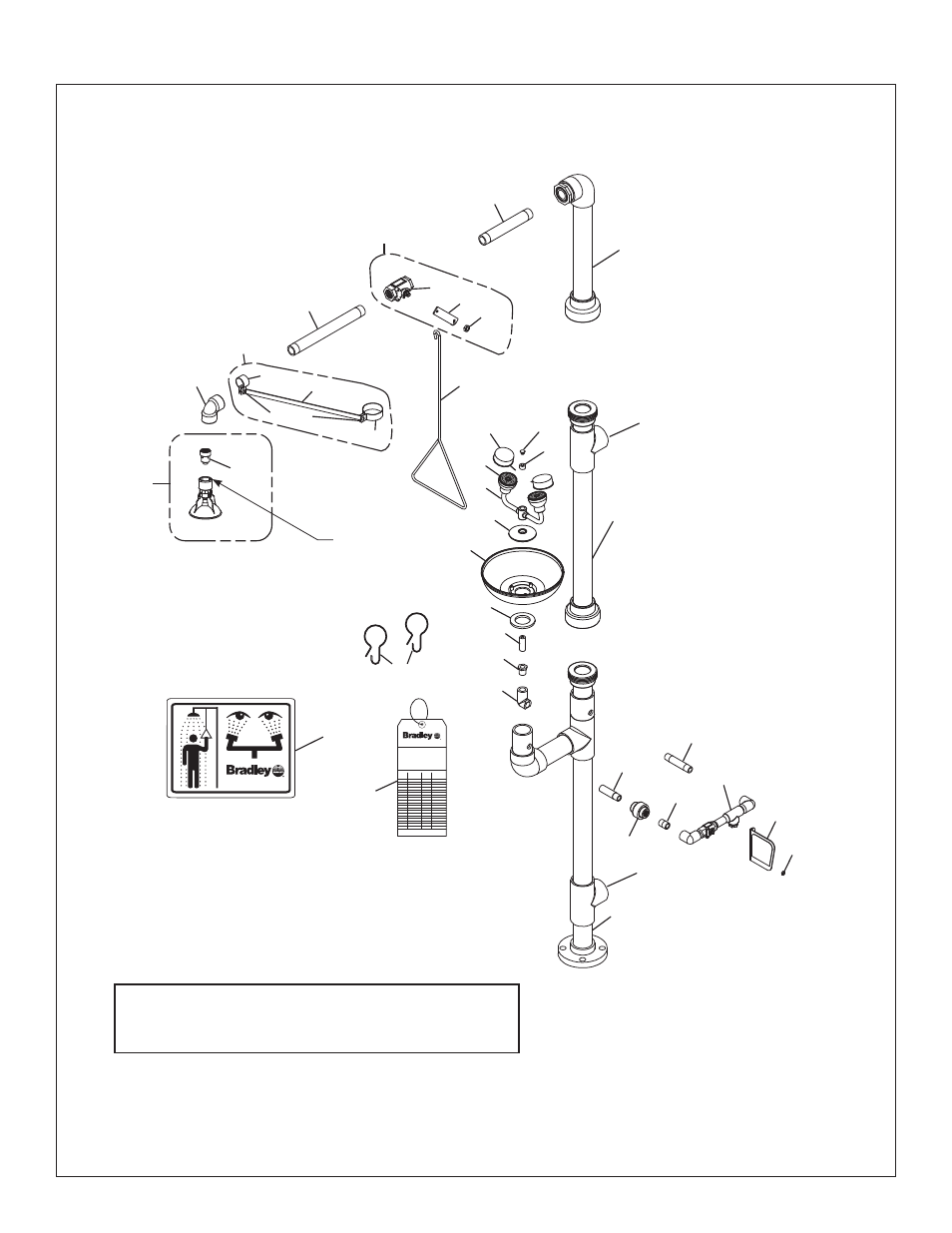

Assembly of Components

1

2

3

4

5

5.1

7

7.11

7.2

7.1

8

11

10

28

21

20

19

15

14.1

14

22

23

26

24

16

25

17

29

27

13

12

6

6.1

6.2

6.3

6.4, 6.5

18

P.O. BOX 309, MENOMONEE FALLS, WI 53052-0309 USA

TEL: 1-800-BRADLEY FAX: (262-251-5817)

http://www.bradleycorp.com

114-052

P.O. Box 309, Menomonee Falls, WI 53051

R

TEST THIS UNIT EACH WEEK

Test-operate valve(s) each week and sign below.
Report any malfunctions immediately.

Ventil(e) wöchentlich im Testbetrieb prüfen, bestätigt
durch Unterschrift. Jegliche Störung sofort melden.

Date
Datum
Date

Signed
Unterschrift
Signe

Date
Date

Date

Signed
Signed
Signed

DIESES GERÄT 1ST WÖCHENTLICH ZU PRÜFEN.
ESSAI HEBDOMADAIRE

Test le fonctionnement des valves chaque semaine et
signe en bas. S'il y à quelque chose qui ne va pas fait
un rapport immédiatement.

30

9

NOTE: Seal all male threads with PVC compatible pipe

sealant or teflon tape. Assemble couplings hand-
tight; then tighten one full turn with a wrench.

2" PVC

Supply Inlet

2" PVC

Drain Outlet

NOTE: Use

teflon tape

only.
