Connect the S-VIDEO (VIDEO OUT) jack of the DVD Player to
the S-VIDEO IN jack on the TV. Use an S-Video cable (not supplied).
2
Connect the supplied red and white audio cables to the red and
white Left and Right AUDIO OUT jacks on the DVD Player.
Connect the other end of the cables to the left/right AUDIO IN
jacks on the TV. Match the cable colors to the jack colors.
3
Connect the DVD Player’s power cord to the MAINS jack on the
rear of the DVD Player. Connect the power cords of the DVD
Player and the TV to the power outlet. Turn on the power of the
TV and the DVD Player.
4
Set the TV to the correct S-Video In channel. This channel might
be near channel 00. See your TV owner’s manual for details. Or, con-
tinue to change channels at the TV until you see the DVD Player’s
screen saver on the TV screen.
Hookups (cont’d) 11

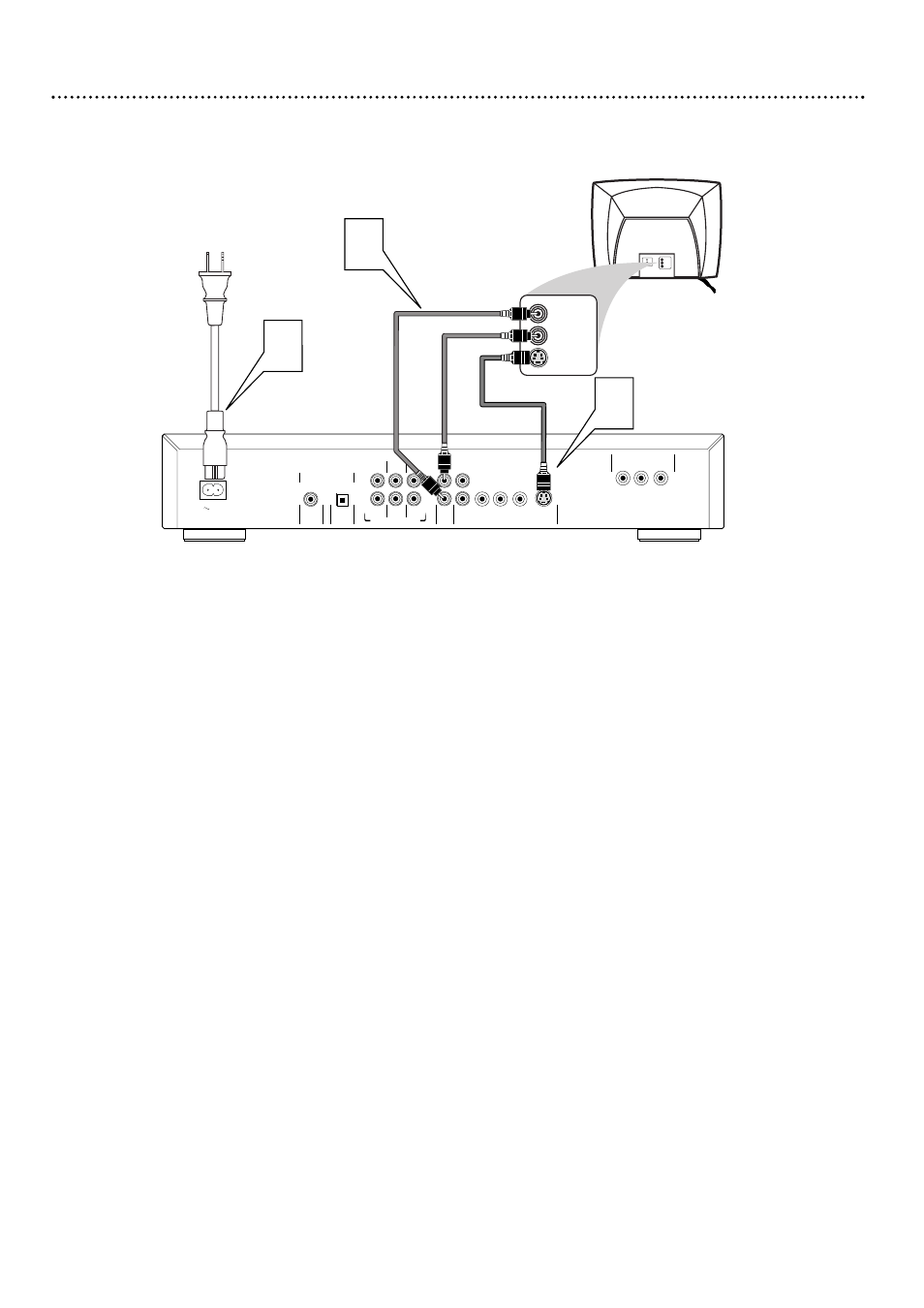

Connecting to a TV Only
TV has an S-Video In Jack
