3500W Portable Generator
6
ASSEMBLY
Your generator requires some assembly and is ready for
use after it has been properly serviced with the
recommended oil and fuel.
If you have any problems with the assembly of your
generator, please call the generator helpline at
1-800-743-4115. If calling for assistance, please have the
model, revision, and serial number from the data tag available.
See “Know Your Generator” for data tag location.
Unpacking the Generator
1. Set the carton on a rigid flat surface.
2. Remove everything from carton except generator.
3. Open carton completely by cutting each corner from
top to bottom.
4. Leave generator on carton to install wheel kit.
Carton Contents
Check all contents against those listed below:
• Main unit
• Engine oil
• Operator’s manual
• Engine operator’s manual
• Wheel kit
If any parts are missing or damaged, call the generator
helpline at 1-800-743-4115.
Install Wheel Kit
The wheel kit is designed to greatly improve the portability
of your generator.
NOTE: Wheel kit is not intended for over-the-road use.
You will need the following tools to install this wheel kit:
• 2 - 13mm open end wrenches
• 15/16" open end wrench
Install the wheel kit as follows (Figure 1):
1. Place bottom of generator cradle on a flat surface.
2. Place axle stud through wheel retainer on cradle
frame.
3. Use 15/16” wrench to secure axle stud to frame with
5/8-18 jam nut.
4. Install other axle stud in same manner.
Capscrew
Handle
Support Leg
Jam Nut
Retaining Pin
Wheel
Washer
Axle
Stud
Nut
Capscrew
Nut

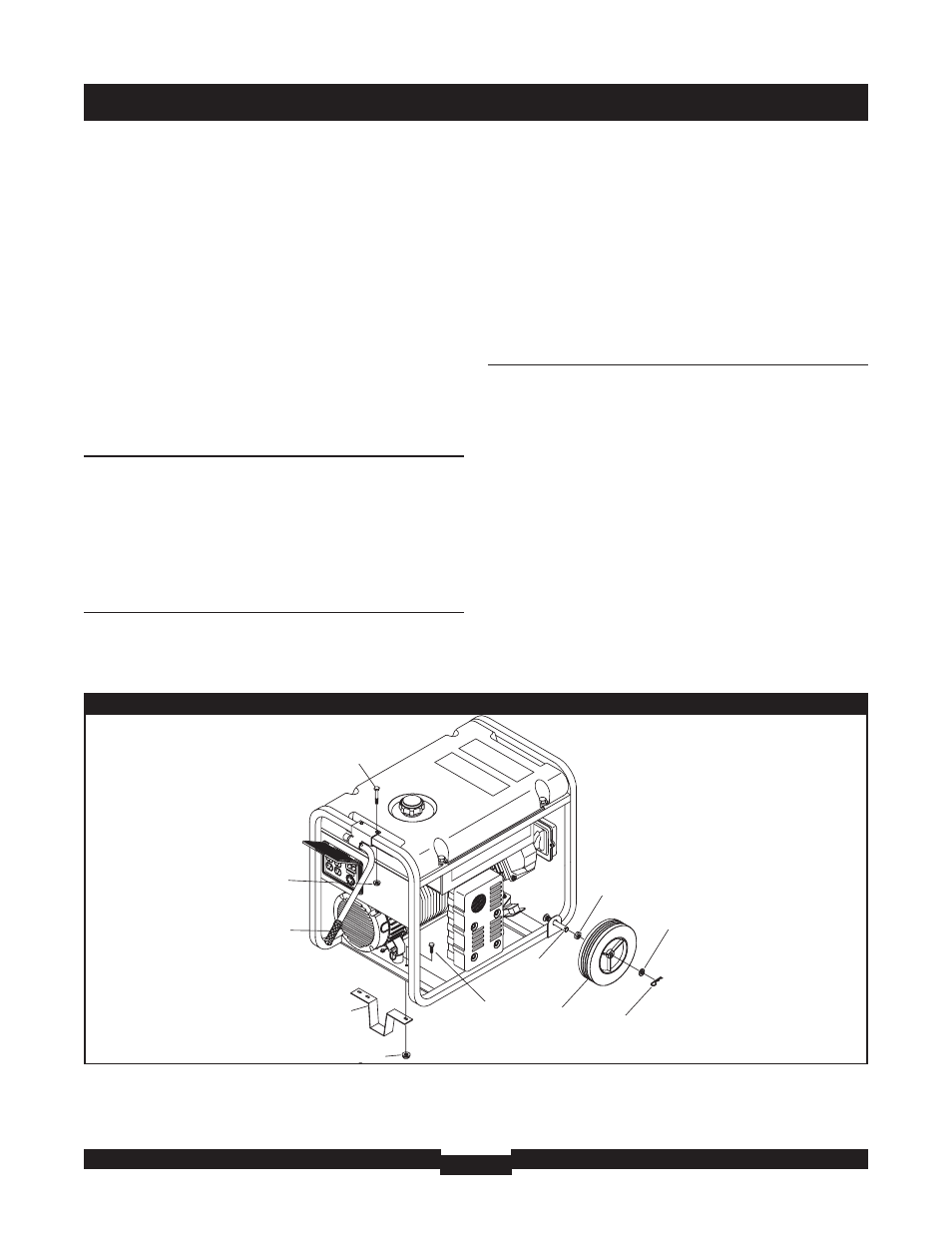

Figure 1 — Install Wheel Kit
Typical Generator Shown
