KNOW YOUR GENERATOR
6
KNOW YOUR GENERATOR - MODEL 030213
Read this owner’s manual and safety rules before operating your generator.

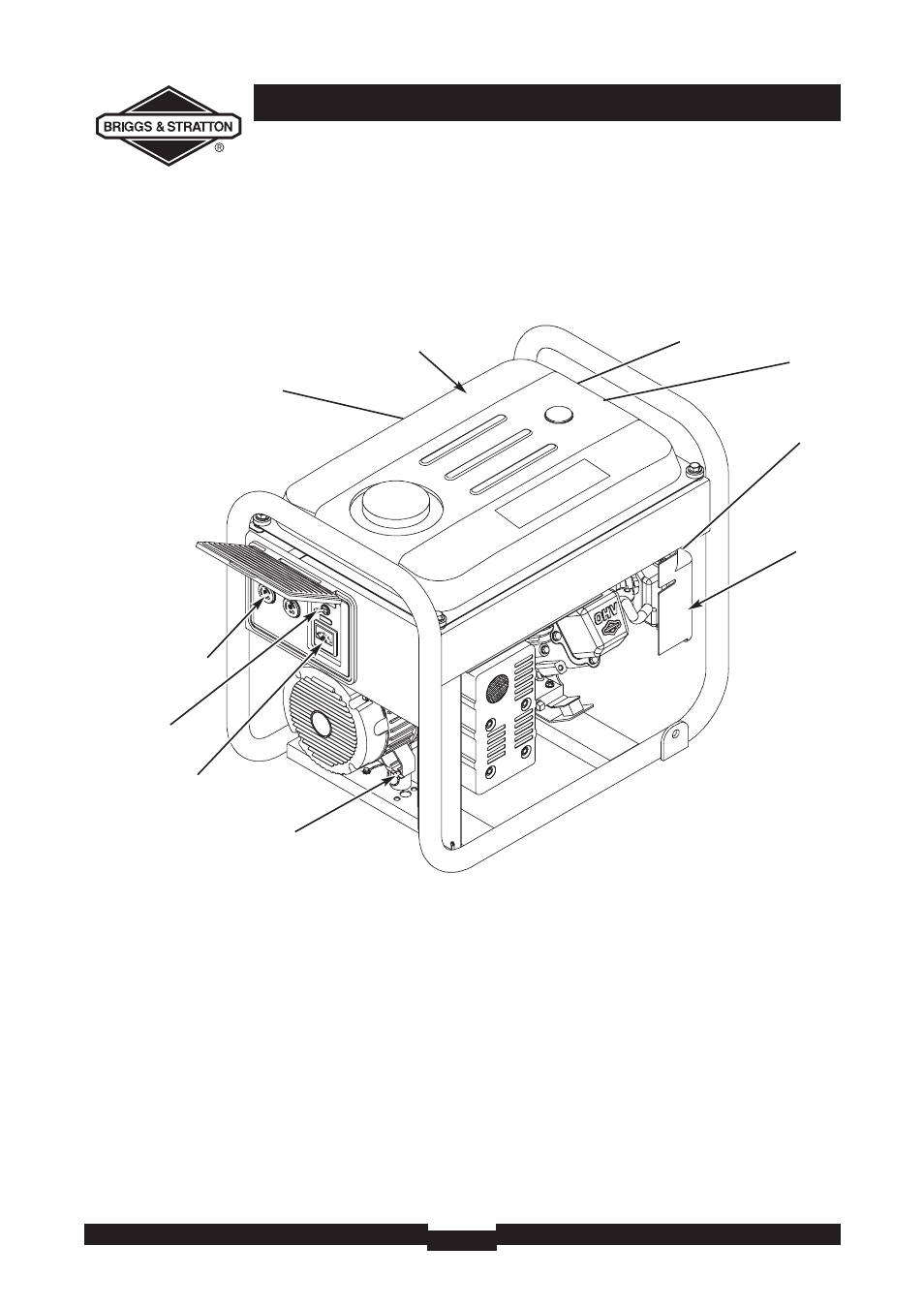

Compare the illustrations with your generator, to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
Petrol Tank
Air
Cleaner
Rocker Switch
Receptacles
Circuit Breaker
Choke Lever
Recoil Starter
Grounding Fastener
Oil Fill Cap/Dipstick
AC Voltmeter — Indicates output voltage.
Air Cleaner — Protects engine by filtering dust and
debris out of intake air.
Circuit Breaker — Receptacle is protected against
electrical overload with circuit breaker.
Petrol Tank — Capacity of 17 l (4.5 U.S. gallons).
Grounding Fastener — If required, please consult a
qualified electrician, electrical inspector, or the local
agency having jurisdiction.
Oil Fill Cap/Dipstick — Check and fill engine with oil
here.
Choke Lever — Used when starting a cold engine.
Receptacles — May be used to supply electrical power
for the operation of various electrical, lighting, appliance,
tool and motor loads.
Recoil Starter — Used for starting the engine.
Rocker Switch — Set switch to “On” prior to using
recoil starter. Set switch to “Off” to switch off generator.
AC Voltmeter
