VIDEO
IN OUT
CH3 CH4
AUDIO
OUT
IN
ANT
OR
VIDEO
IN OUT
CH3 CH4
AUDIO
OUT
IN
ANT
75 ⍀ ANT / CABLE
OR
6 Hookups Without a Cable Box/Direct Broadcast System

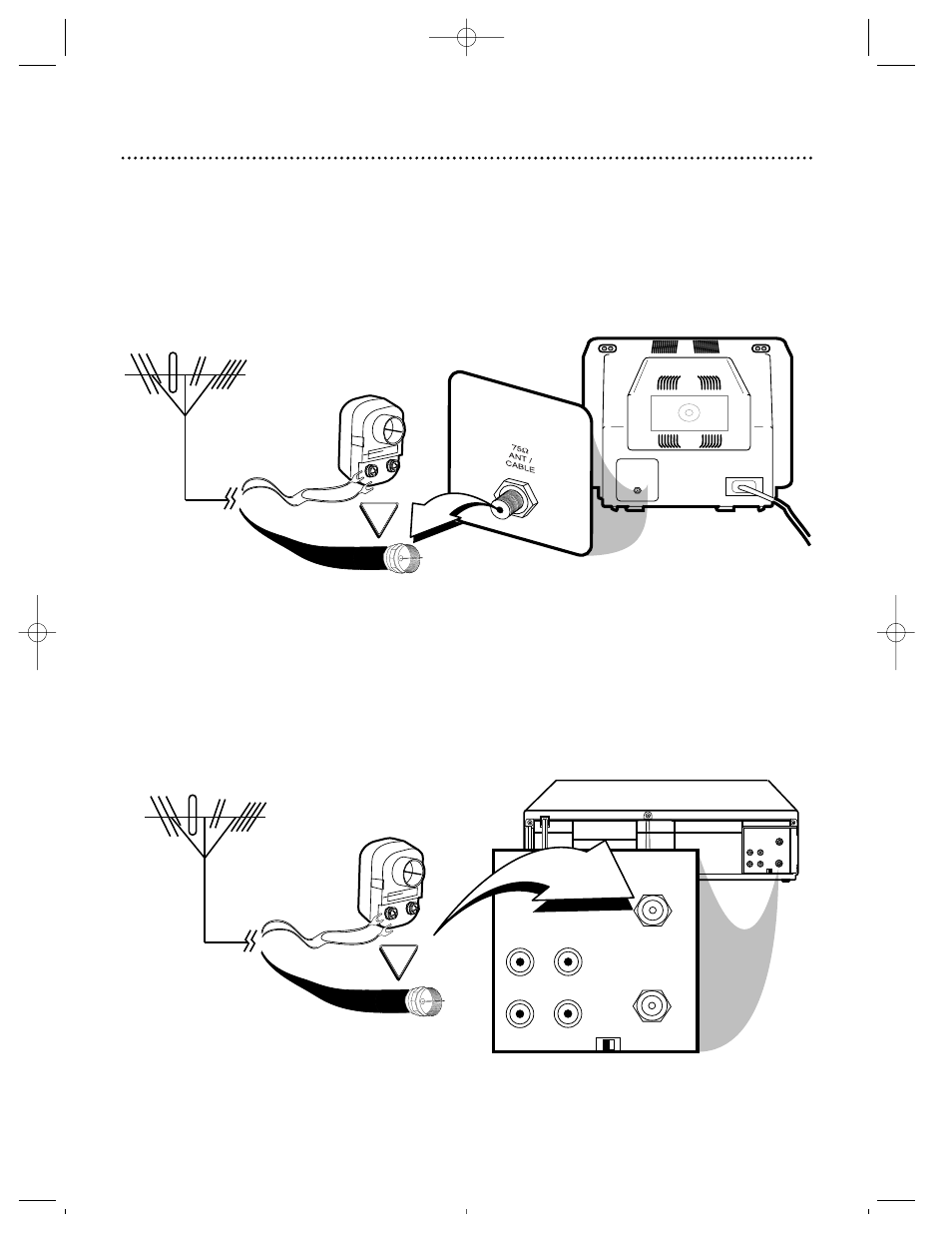

The basic VCR/TV connection – antenna/cable to VCR to TV – is shown below. If you have a
Cable Box or Direct Broadcast System, please refer to pages eight - nine. If you have a Stereo
TV, please go to page 10. After you hook up the VCR, please go to page 11 to turn on the
VCR.
Antenna In Jack
(on back of TV)
Cable
(75 ohm)
Back of VCR
Antenna
Indoor/Outdoor
(300 ohm)
1
Disconnect the antenna or cable from your TV.
2
Connect the antenna or cable to the ANT(enna) IN jack of your VCR.
Cable
(75 ohm)
Antenna
Indoor/Outdoor
(300 ohm)
