7
H
OOKING
U
P
Y
OUR
TV (B
ASIC
TV
TO
VCR C
ONNECTIONS
)
75 ⍀
75 ⍀
OR
OUT TO TV IN FROM ANT.
1
2

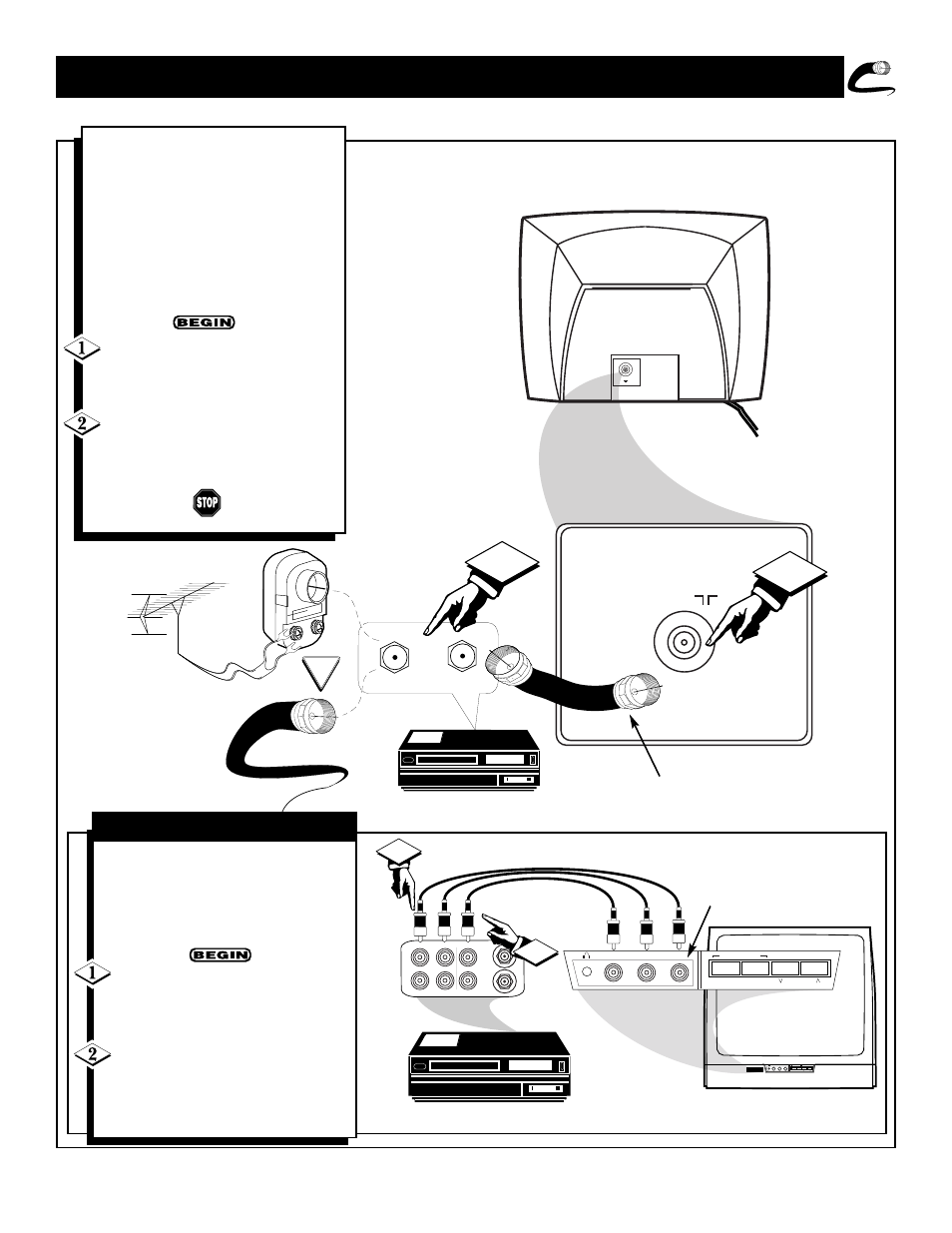

T he basic Antenna, or Cable TV,
to VCR to TV connection is
shown to the right. For more infor-
mation on other hookups (possible
when Cable Converter/Descrambler
boxes are included) refer to your
accessory VCR and Cable
Converter Owner's Manual for
details.
Connect your Antenna or Cable
TV signal to the IN FROM
ANT(enna) plug on the VCR.
Connect the OUT TO TV plug on
the VCR to the 75
Ω
plug on the TV
(connecting cable supplied with the
VCR.)
Round Cable
75
Ω
Supplied with VCR
Outdoor
VHF/UHF
Antenna
300 to 75
Ω
Ohm Adapter
Cable TV signal
Back of TV
– VOLUME + CHANNEL
INSTALL/MENU L AUDIO R VIDEO
– VOLUME + CHANNEL
INSTALL/MENU L AUDIO R VIDEO
ANTENNA OUT
ANTENNA
IN
VIDEO R AUDIO L
IN IN
OUT OUT 2
1 A udio and Video Front inputs are
available for a quick connection
of a VCR or to playback video from
a camera. Use the AV button on the
remote control to tune these inputs.
Connect the yellow video cable
from the Video output on the
VCR/Camera to the Video input located
on the FRONT of the TV.
Connect the audio cables (red and
white) from the Audio Left and Right
outputs on the VCR/Camera to the
Audio L(eft) and R(ight) inputs located
on the front of the TV.
VCR, Camcorder, or accessory device with A/V Outputs.
Front A/V Input Panel
Video Cable
Audio Cables
Front of TV
F
RONT
A/V I
NPUTS
