EXPLODED VIEWS AND PARTS LISTS
6

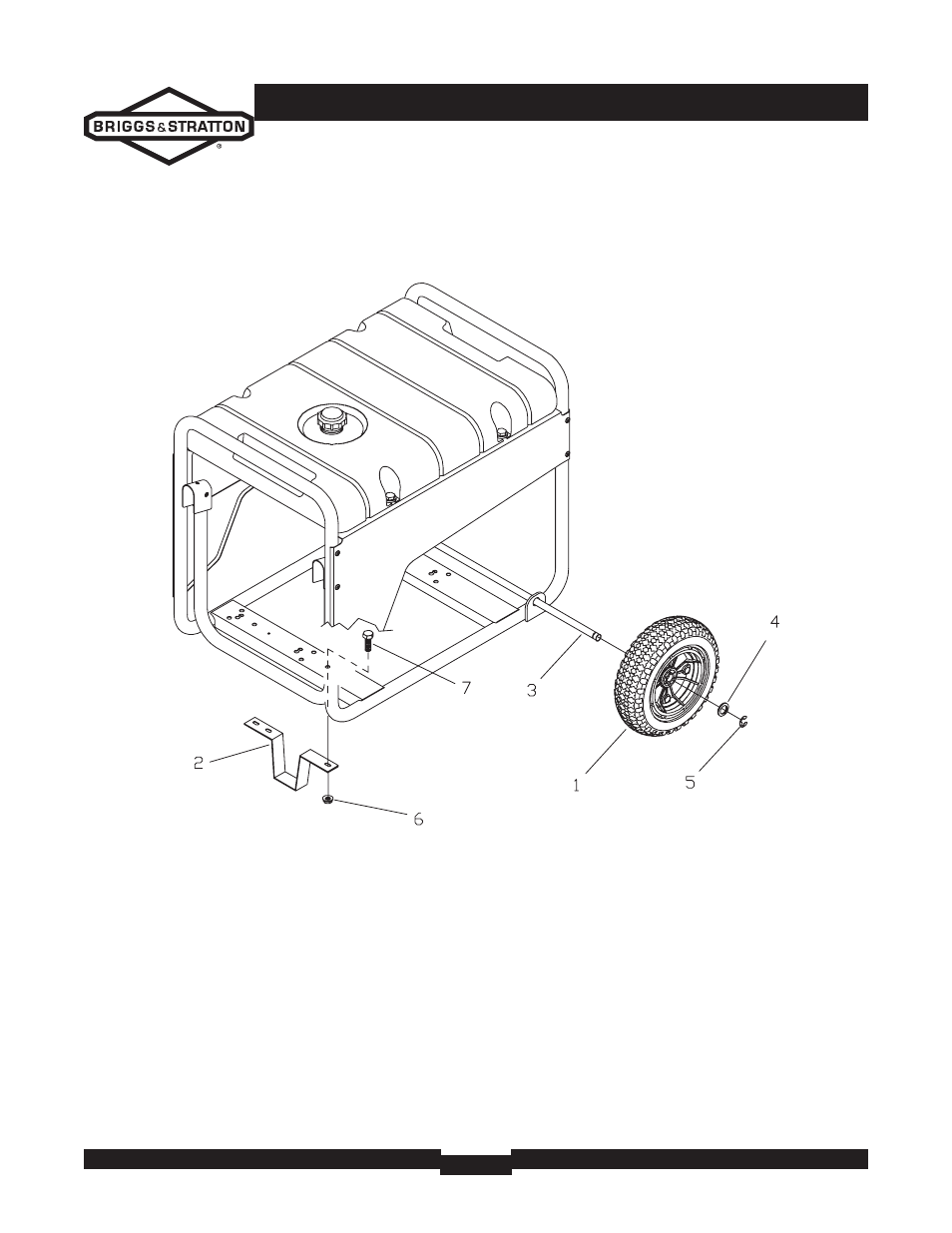

EXPLODED VIEW AND PARTS LIST - WHEEL KIT
Item Part #
Description
1
196517GS
WHEEL
2
B1764GS
SUPPORT, Wheel Kit
3
191267HGS
AXLE
4
*
WASHER, 5/8"
5
191265GS
E-RING
6
67989GS
NUT, M8 - Flange Serrated
7
*
HHCS, M8 - 1.25 x 16
Parts Not Illustrated
197594GS
SUBKIT, Hardware
* - Items without part numbers are common fasteners
and are available at your local hardware store.
