2

Mount the 2 front
speakers (white,
red jack) onto the
2 subwoofers.

1

English

white (red) purple

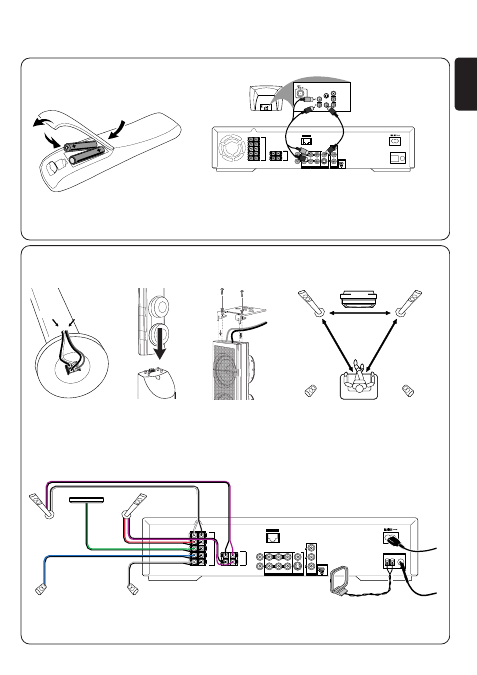

Quick use guide

MX6000i

FRONT

LEFT

FRONT

RIGHT

CENTRE

SURR

LEFT

SURR

RIGHT

SUB-W

LEFT

SUB-W

RIGHT

ETHERNET

DIGITAL

IN

AUX IN

TV IN

LINE OUT

S - VIDEO

AM

FM

OFF

ON

DIGITAL

OUT

R

L

ANTENNA

P-SCAN

CVBS

AUDIO

VIDEO OUT

COMPONENT

AUDIO
OUT

Pr/Cr

Pb/Cb

Y

S-VIDEO

IN

VIDEO IN

COMPONENT
VIDEO IN

AUDIO

OUT

Pr/Cr

Pb/Cb

Y

S-VIDEO

IN

VIDEO IN

COMPONENT

VIDEO IN

FRONT

LEFT

FRONT

RIGHT

CENTRE

SURR

LEFT

SURR

RIGHT

SUB-W

LEFT

SUB-W

RIGHT

ETHERNET

DIGITAL

IN

AUX IN

TV IN

LINE OUT

S - VIDEO

AM

FM

OFF

ON

DIGITAL

OUT

R

L

ANTENNA

P-SCAN

CVBS

AUDIO

VIDEO OUT

COMPONENT

front R,
subwoofer

rear R

centre

rear L

front L,

subwoofer

1

Connect the speaker
cables to the base of
the subwoofers.

Connect the composite video input jack on the TV (labelled A/V In,Video In, Composite) to
VIDEO CVBS on the Streamium System with the supplied composite video cable (yellow).
For Component or S-Video connections, see page 14 of the user´s manual.

Connect the audio output jacks on the TV to TV IN (L/R) on the Streamium System with the
supplied RCA-style audio cable (white and red).

5

Connect the speaker cables to the Streamium System.

6

Connect the FM and the AM antenna.

7

After making all other connections connect
the power cord to MAINS ~ on the Streamium
System and to the power outlet.

3

Mount the 2 mini
speaker stands onto
the 2 rear speakers
(blue, grey jack) and
connect the
corresponding
speaker cables.

4

Position the speakers.

1

Insert batteries

2

Connect TV

3

Connect speakers and antenna

Match the colors of the speaker cables and of the speaker jacks!
