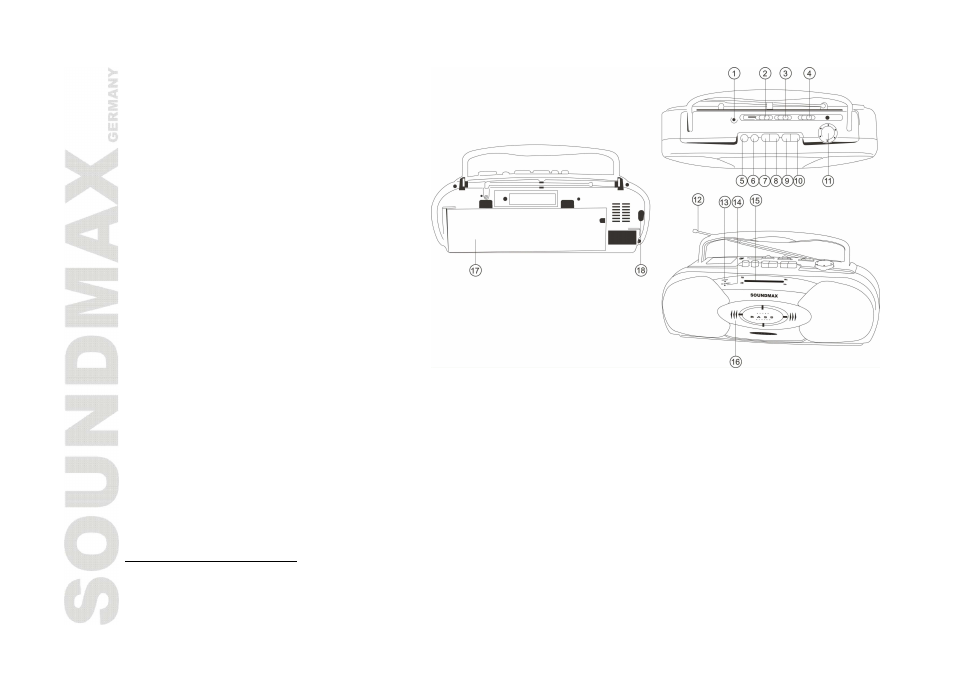

Description
1. Headphone Jack
2. Volume Control
3. Function Switch
4. Band Selector
5. Pause Button
6. Stop/Eject Button
7. Fast Forward Button
8. Rewind Button
9. Play Button
10. Record Button
11. Tuning Knob
12. FM Telescopic Antenna
13. Power Indicator
14. FM Stereo Indicator
15. Dial Scale
16. Cassette Door
17. Battery Compartment
18. AC Power Cord Socket
Important safeguards
· CAUTION: To reduce the risk of electric shock, do not remove cover (or back), do not put any user-
serviceable parts inside. Prefer servicing to qualified service personnel.
· DANGEROUS VOLTAGE: Uninsulated dangerous voltage that may be of sufficient magnitude to constitute
a risk of electrical shock to persons is present within this product enclosure.
· ATTENTION: The owner s manual contains important operating and maintenance instructions. For your
safety, it is necessary to refer to the manual.
Power supply and connection
BATTERY OPERATION
· Set the FUNCTION switch to the TAPE position.
· Open the battery compartment cover.
· Insert 6 batteries (UM-1 or D). Please observe correct battery polarities or the set will not work.
