Manual 2100-344
Page

7

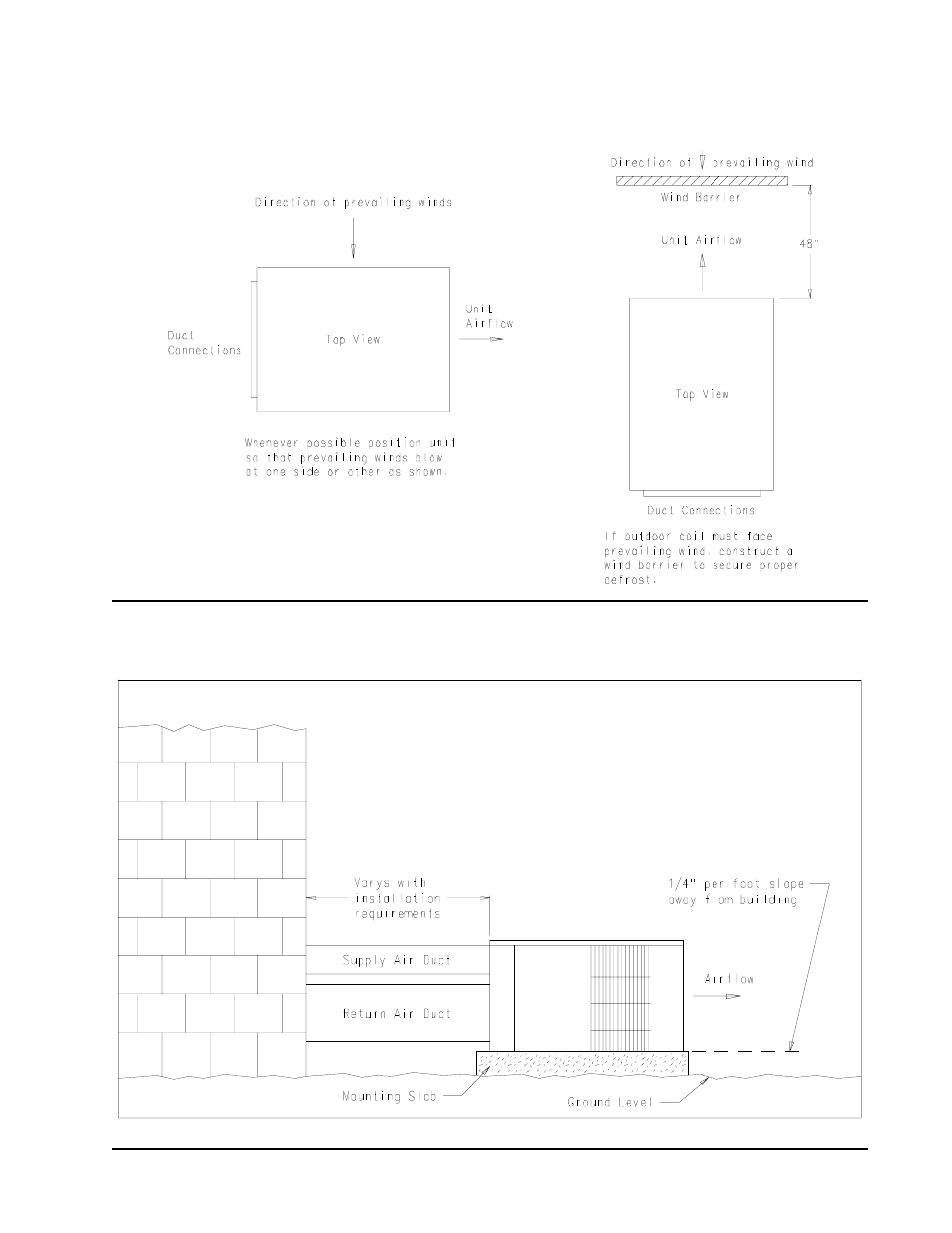

FIGURE 5

ROOF TOP APPLICATION

(May also be required for ground level installations.)

MIS-1176

FIGURE 6

SLAB MOUNTING AT GROUND LEVEL

(Above 32° F Outside Temperature)

MIS-1184
