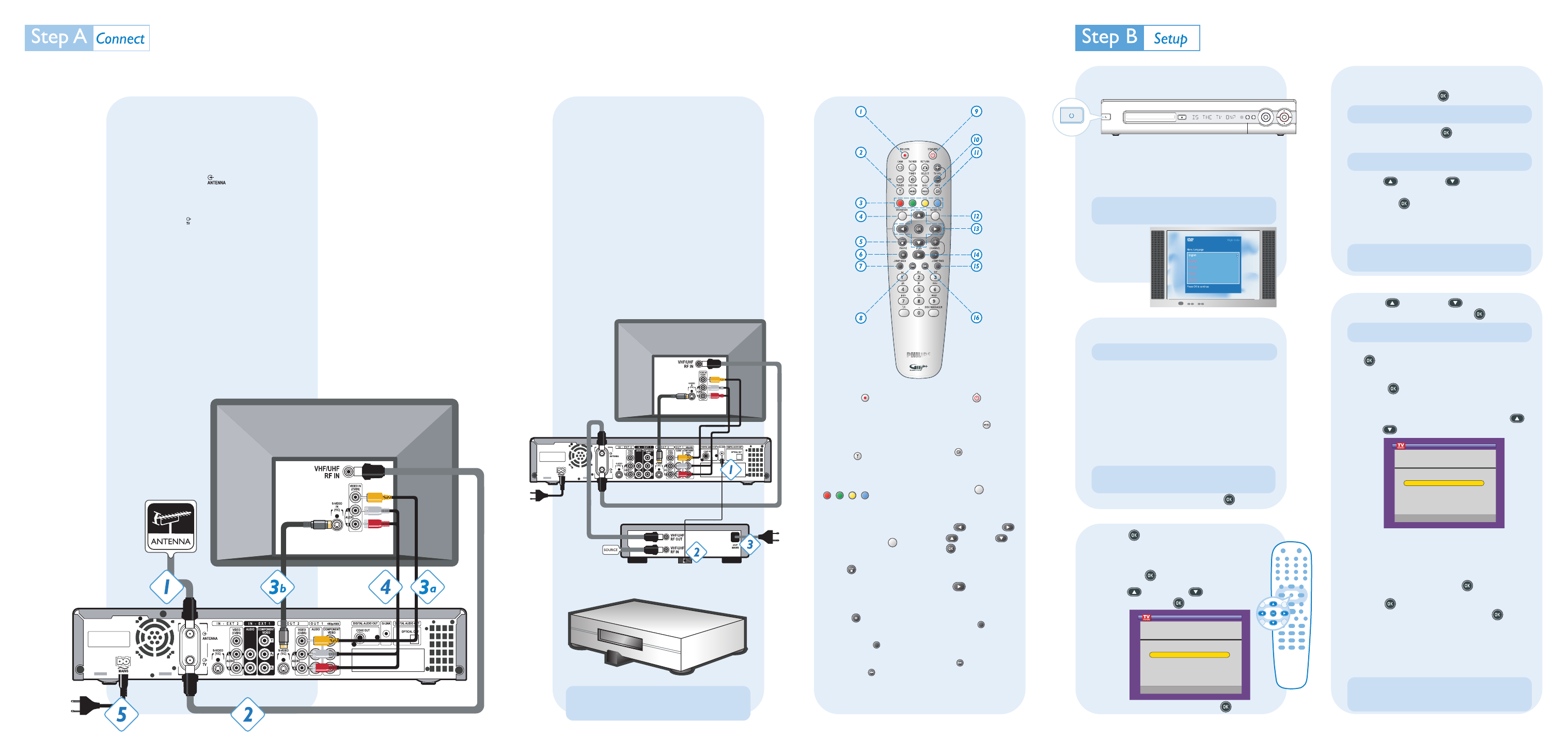

If you don’t have a set-top box follow the instructions for ‘Connection without Set-Top Box’. If you have a set-top box,
follow the instructions for ‘Connection without Set-Top Box’ then the instructions for ‘Connection with Set-Top Box’.

Connection without Set-Top Box

Before Connecting

Your TV should be plugged into the wall jack via the antenna
cable. Unplug the antenna cable from the TV.

Connecting

Connect the antenna cable (plugged out from the
TV) to ANTENNA IN socket at the rear of
the recorder.

Connect the provided antenna cable into the TV
OUTPUT socket at rear of the recorder and into
the Antenna In socket of the TV.

Connect the Video (CVBS) cable (yellow) to the
VIDEO (CBVS) socket of the TV and to the OUT 2
VIDEO (CBVS) socket at rear the recorder.

or

Connect the S-Video cable to the S-VIDEO socket
of the TV and to the OUT 2 S-VIDEO socket at rear
the recorder.

Connect the red Audio cable to the red socket of
the TV and recorder and the white Audio cable to
the white socket of the TV and recorder.

Connect the power cable from the recorder to an
AC power outlet.

1

2

3

a

4

5

Connection with Set-Top Box

With the TV Guide on Screen

TM

System, your new Philips

Hard Disk & DVD Recorder can control your set-top box
(satellite receiver or cable TV box) via the IR-Blaster (G-
LINK cable). You can now only record TV shows that are
received through the cable box.

Connecting

Follow the instructions under ‘Connection without Set-Top
Box’ to connect the recorder then proceed to step 1 below.

Connect the G-LINK cable (supplied) to the G-LINK
socket at the rear of the recorder.

Place the IR-Blaster transmitter in front of your set-
top box in such a way that it can acquire the signal
broadcasted by the transmitter.

If not already connected, plug in the power cable of
your set-top box to an AC power outlet.

1
2

3

Television

DVD Recorder/Hard Disk

Cable Box

IR-Blaster

Press the

STANDBY-ON button on the recorder.

The recorder will display ‘IS THE TV ON?’

Switch on the TV set.

Press the ‘0’ button on the TV remote control, scroll
down until you see the Menu Language menu. This is
your correct viewing channel for the recorder.

Finding the Viewing Channel

HARD DISK & DVD RECORDER

STANDBY-ON

OPEN/CLOSE

TV GUIDE

OK

UP

DOWN

RIG

HT

LE

FT

OPEN

STANDBY-ON

Front Panel of Recorder

Installation

Press

OK when you see ‘Welcome to Your TV

Guide on Screen System’.

Find your IR-Blaster if you haven’t connected it
and press

OK .

Press

UP or DOWN to select your

country and press

OK .

Key in your zip code and press

OK .

TV Guide on Screen

TM

Installation

If you do not have a set-top box, go to step C.

Select ‘Yes’ and press

OK if you have cable service.

Select ‘Yes’ and press

OK if you have a external

set-top box. Select ‘No’ for all other.

Press

UP or DOWN to select the channel

on the recorder which the cable service is tuned to
and press

OK .

You are now prompted to connect the IR-Blaster, do
so if you haven’t.

Installing Set-Top Box

Press

UP or DOWN to select the brand

of your set-top box and press

OK .

Read the information on screen carefully and press
OK to confirm.

Change the channel on your set-top box to 02 and
press

OK .

The recorder will now attempt to change the channel
number to 09 on your set-top box. Press

UP or

DOWN to select ‘Yes’ if it has.

If it has not, refer to the user manual for more details
on installing your set-top box.

Check the settings on screen, if they are incorrect select
‘No, repeat setup process’. If they are correct, select ‘Yes,
end setup process’ and press

OK to confirm.

Press

OK after you finish reading about TV Guide

on Screen

TM

System information and

OK again to

complete the setup.

Switch the set-top box to the channel that transmits
the TV Guide data, leave it on overnight to load the
program data. It will be available in the next 24 hours.

Finalize Installation

1

2
3
4

5
6

7

8

1

2

1

2

3

1
2

3

4

5

1
2
3

4

6
7

8

Follow the on-screen instructions:
Select your Menu Language.

Select your Audio Language.

Select your Subtitle Language.

Select your TV Shape.

Select your Country.

The recorder will now ask if you have connected
your antenna. Do so if you haven’t.

The recorder will now start automatic Channel Search.

Check Date and Time and press

OK to finish.

Tip

If unable to find the correct viewing channel, check your

connections again or check your TV’s user manual.

Tip

Use the recorder’s remote control to make the selections.

Tip

If no channels were found, check your antenna connection

and check your user manual to search for channels.

Important Note

You must leave the recorder in Standby mode at night in

order for it to load new program listings.

Tip

If you do not see your brand, select ‘not listed’.

Tip

If you have selected ‘No’, proceed to Step C.

Tip

Selected ‘No’ if you don’t and proceed to Step C.

Positioning of G-LINK transmitter

Set-Top Box

IR-Blaster

Note

The IR-Blaster must be placed about one inch in front of

the set-top box.

Remote Control

REC/OTR

Record the current TV
show and mark record-
ings in the TSB to be
stored on HDD.

TUNER

Switch to live TV.

COLOUR BUTTONS

Have different functions
(shown at bottom of
screen) in different menus.

BROWSER HDD

Call up the HDD menu.

STOP

Stop playback/recording.
Hold down to open and

close the disc tray.

PAUSE

Pause playback.

JUMP BACK

Jump back a certain time.

PREVIOUS

Previous chapter or title.
Hold down to search

backwards.

STANDBY

Switch on or off.

DISC MENU

Display the DVD menu.

INFO

Display additional
information.

GUIDE/TV

Call up the GUIDE
Plus+® system.

LEFT , RIGHT ,

UP , DOWN ,

OK

Used to navigate through
the menus.

PLAY

Play/resume from

disc/HDD.

JUMP FWD

To jump forward a
certain time.

NEXT

Next Chapter or Title.
Hold down to search

forwards.

Description

1

2

3

4
5

6
7

8

9

14

13

12

11

10

15

16

3

b

Television

DVD Recorder/Hard Disk

3

4

Tip

For more information on installing additional receivers, see

the user manual.
