Step 9

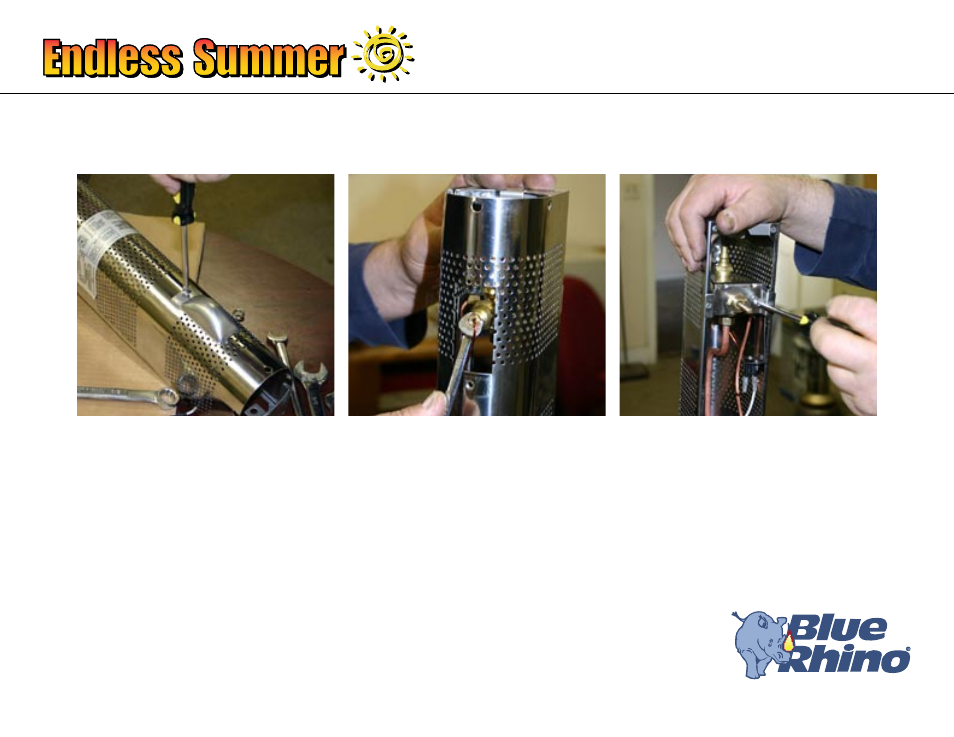

Disconnect the thermal-couple
1. Remove the screw from the access panel on the rear of the valve housing.
2. Remove the access panel.
3. Using the #8 mm open end wrench remove the nut with wires coming out of it.
Note: When reinstalling the nut to the back of the control valve finger tighten plus a 1⁄4 turn.
Do not overtighten.
4. Remove the tip switch bracket on the front of the valve housing by removing the
Phillips screw. Be careful not to damage the wires.
