7
Connecting Accessory Devices to Your TV
P
ANEL
O
VERVIEWS
: H
IGH
-
DEFINITION
I
NPUTS
T he HD INPUT-AV 4 and HD INPUT-AV 5
jacks allow you to digital equipment with
1080i or 480p signal output.
What You Can Connect to the
High-definition Input Jacks
1 HD INPUT-AV 4—use to connect digi-
tal equipment with a 1080i or a 480p
signal output, such as HD receivers
(1080i or 480p) or DVD players with
progressive-scan capability (480p). You
can connect equipment with YPbPr
component video or RGB outputs to the
HD INPUT-AV 4 jacks. H and V Sync
connections may or may not be required
for RGB connections. (See page 57.)
Dedicated audio input jacks are located
with the HD INPUT-AV 4 video jacks.
NOTE: The Picture-in-Picture (PIP) feature
does not function with AV 4.
2 HD INPUT-AV 5—use to connect digital
equipment with a 1080i or a 480p signal
output, such as HD receivers (1080i or
480p) or DVD players (480p). The
HD INPUT-AV 5 jack accepts a DB15
connector. Dedicated audio input jacks
are located with the HD INPUT-AV 5
video jack.
NOTE: The Picture-in-Picture (PIP) feature
does not function with AV5.

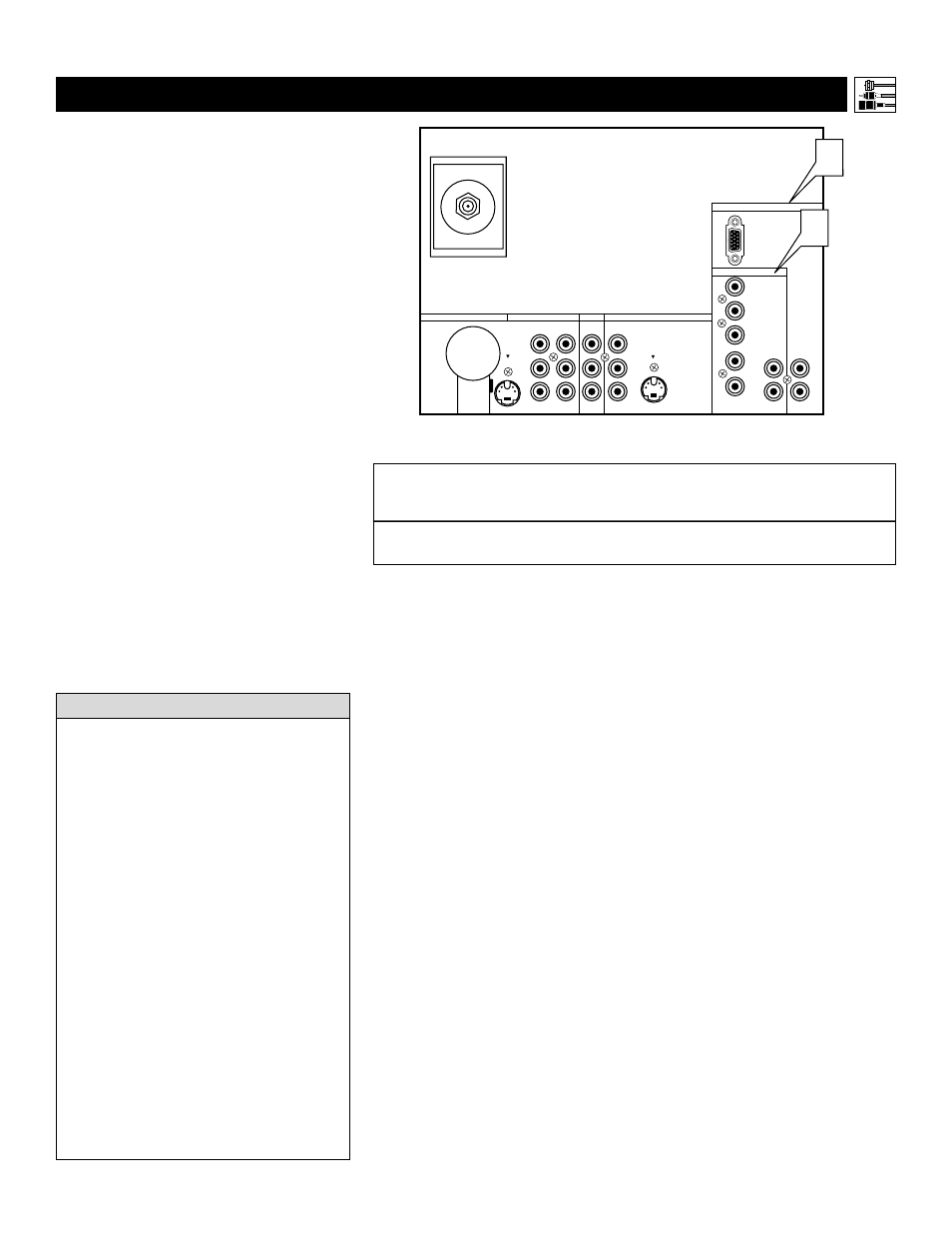

Rear of TV
ANTENNA IN 75 Ω
INPUT-AV 1 OUTPUT INPUT-AV 2
HD INPUT-AV 4
HD INPUT-AV 5
VIDEO
AUDIO
S-VIDEO
L
R
Y
Pb
Pr
VIDEO
AUDIO
L
R
S-VIDEO
B/Pb
V
H
SYNC
AUDIO
L
R
AUDIO
L
R
R/Pr
G/Y
2
1
Summary of signal compatibilities
Input jacks on TV
Compatible output signal
from an external source
or device
HD INPUT-AV 4 and HD INPUT-AV 5
1080i (1080 lines, interlaced) or
480p (480 lines, progressive scan)
• The TV’s default color-space setting for
HD INPUT-AV 4 is YPbPr, and for
HD INPUT-AV 5 it is RGB. If the picture
looks grossly incorrect, try changing the
color-space setting on either the digital
equipment or the TV. For more informa-
tion on setting the color space on the dig-
ital equipment, see the equipment’s direc-
tions-for-use manual. To set the TV’s
color space, see page 59 in this manual.
• This television is designed to be compatible
with high-definition signal standards 1080i
and 480p as specified by the Electronic
Industries Association standard EIA770.3.
Because output standards may vary by man-
ufacturer, you may encounter some digital
equipment that will not properly display pic-
tures on the TV.
• The Picture-in-Picture (PIP) feature does
not function with the HD INPUT-AV 4 or
HD INPUT-AV 5 signal sources. AV4 and
AV5 cannot be displayed in the PIP win-
dow, nor can the PIP window be dis-
played when either AV4 or AV5 is being
viewed on the main screen.
H
ELPFUL
H
INTS
