BSPP Generator

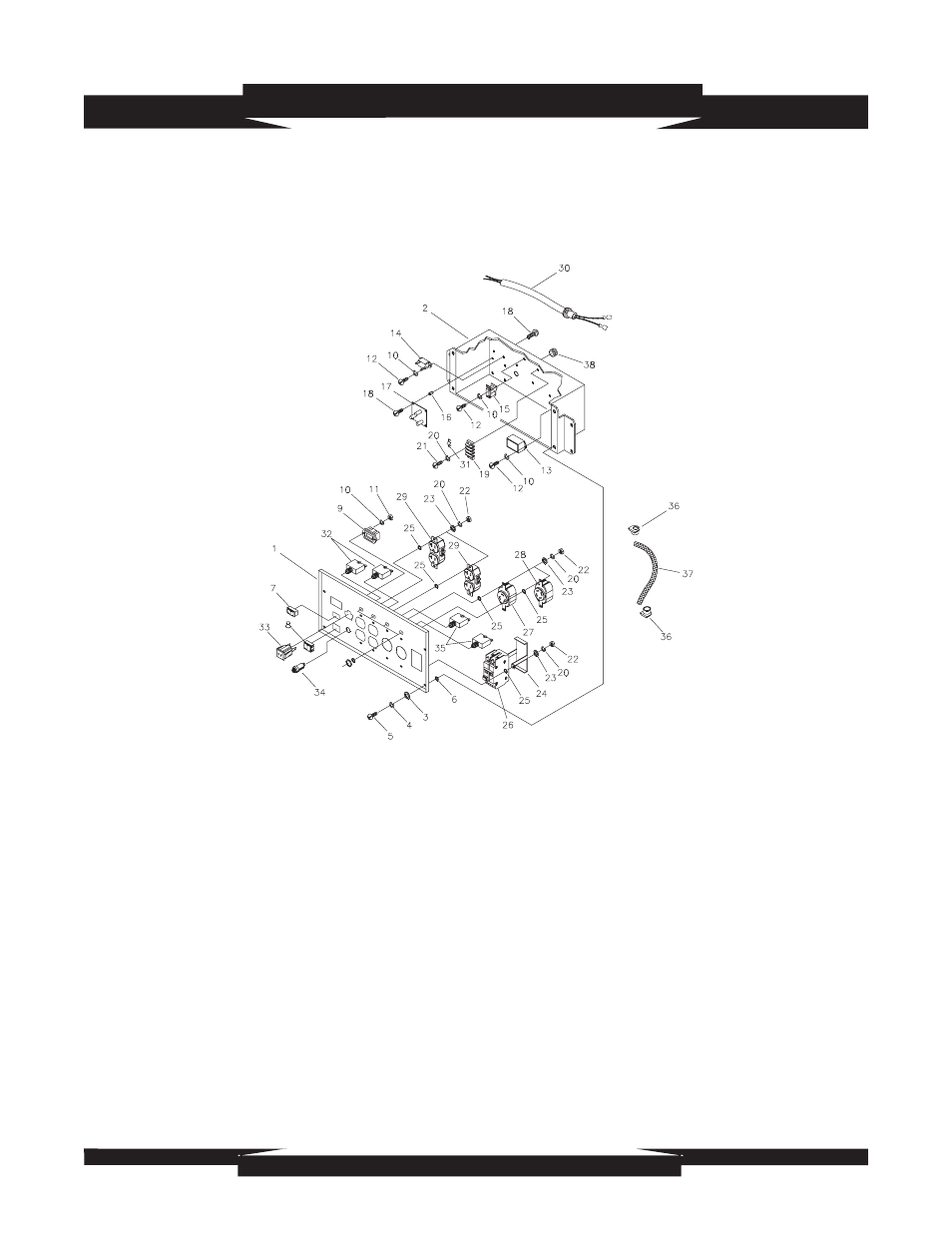

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL
Item Part # Description
1 B192834GS PANEL, Control
2 B192837GS BOX, Control Panel
3 * WASHER, Flat, #10 - M5
4 * WASHER, Lock, M5
5 * PPHMS, M5 - 0.8 x 12
6 * WASHER, M6 - 1/4, Int. Shakeproof
7 82538GS SWITCH, Rocker
8 192855GS SWITCH, Rocker
9 77604GS METER, Hour
10 * WASHER, Lock, M3
11 * NUT, M3 - 0.5
12 * PHMS, M3 - 0.5 x 10
13 77314GS THERMAL, Relay
14 87962GS BREAKER, Circuit, 10A, 12V
15 84028GS TRANSFORMER, Idle Cnt
16 64525GS STANDOFF, HEX, 3/4"
17 94117GS PCB, Idle Control, 10KW
18 * PHTS, 6 - 32 x 3/8"
19 92953GS TERMINAL, Block
20 * WASHER, Lock, M4
21 * PPHMS, M4 - 0.7 x 20
Item Part # Description
22 * NUT, M4 - 0.7
23 * WASHER, Flat, M4
24 192931GS BRACKET, GFCI Breaker
25 * WASHER, Shakeproof, Int. #8
26 192828EGS BREAKER, Circuit, GFCI, 40A
27 68868GS OUTLET, 120V, 30A
28 43437GS OUTLET, 120/240V, 30A
29 68759GS OUTLET, 120V, 20A, Duplex
30 194953GS HARNESS,Wire
31 193597GS JUMPER,Terminal Block
32 75207GS BREAKER, Circuit, 20A w/hardware
33 90418GS OUTLET, 12VDC, Snap
34 B4694GS JACK, Coaxial
35 75207NGS BREAKER, Circuit, 35A, w/hardware
36 188632GS BOOT, Rubber Wire Outlet
37 77043BGS CONDUIT, Flex, .50 I.D. x 9.5
38 62265GS GROMMET
* - Items without part numbers are common fasteners and
are available at local hardware stores.
