Product Information
RETURN TO TOP OF THE PAGE

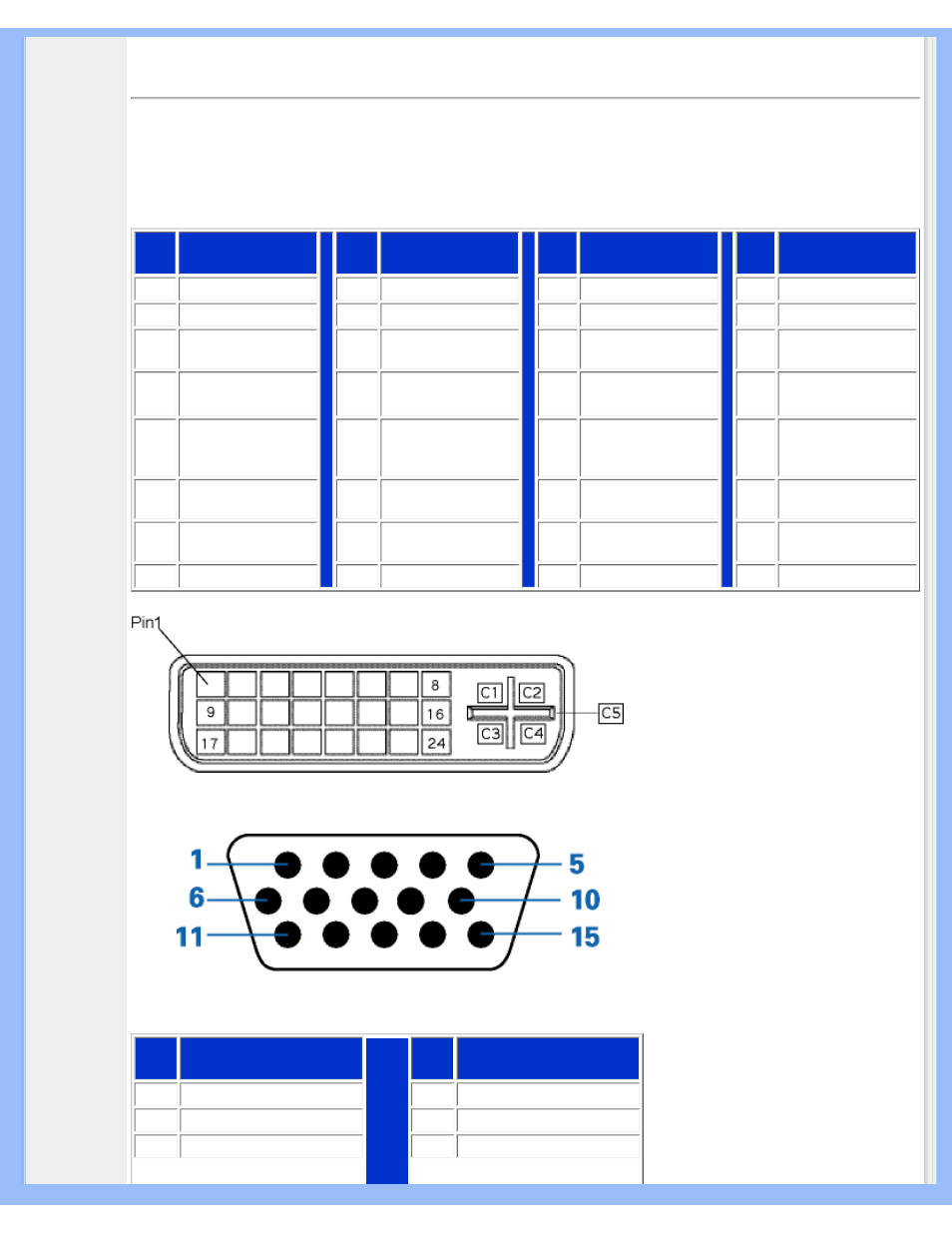

Pin Assignment
1. The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin
assignments are listed in the following table:
Pin
No.
Signal Assignment
Pin
No.
Signal Assignment
Pin
No.
Signal Assignment
Pin
No.
Signal Assignment
1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0- C1 * Analog R
2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+ C2 * Analog G
3
T.M.D.S. Data2
Shield
11
T.M.D.S. Data1
Shield
19
T.M.D.S. Data0
Shield
C3 * Analog B
4 NC 12 NC 20 NC C4 * Analog H-sync
5 NC 13 NC 21 NC C5
* Analog GND
(Analog R, G, B
return)
6 DDC Clock 14 +5V 22
T.M.D.S. Clock
Shield
7 DDC Data 15
Ground (return for
+5V and H/V-sync)
23 T.M.D.S. Clock+
8 * Analog V-sync 16 Hot Plug Detect 24 T.M.D.S. Clock-
2. The 15-pin D-sub connector (male) of the signal cable:
Pin
No.
Assignment
Pin
No.
Assignment
1 Red video input 9 +5V
2 Green video input/SOG 10 Ground
3 Blue video input 11 Ground
