Setting Up Your Lifestyle ® Stereo Amplifier
Connecting the Lifestyle ® stereo amplifier to a Lifestyle ® media center
CAUTION: Before making connections, turn the Lifestyle ® system off and disconnect the media center from
the AC (mains) power outlet. DO NOT plug the amplifier into an outlet until you have completed all other con-
nections.
1. Insert the single-connector end of the audio input cable into the SPEAKER ZONES 2 output jack on the
rear panel of the media center (Figure 8).
2. At the other end of the audio input cable, insert the 3.5 mm mini-plug into the SYSTEM CONTROL jack
on the rear panel of the amplifier.
3. Insert the white RCA piggyback connector of the audio input cable into the L (left) INPUT jack. Insert the
red RCA piggyback connector into the R (right) INPUT jack of the amplifier.

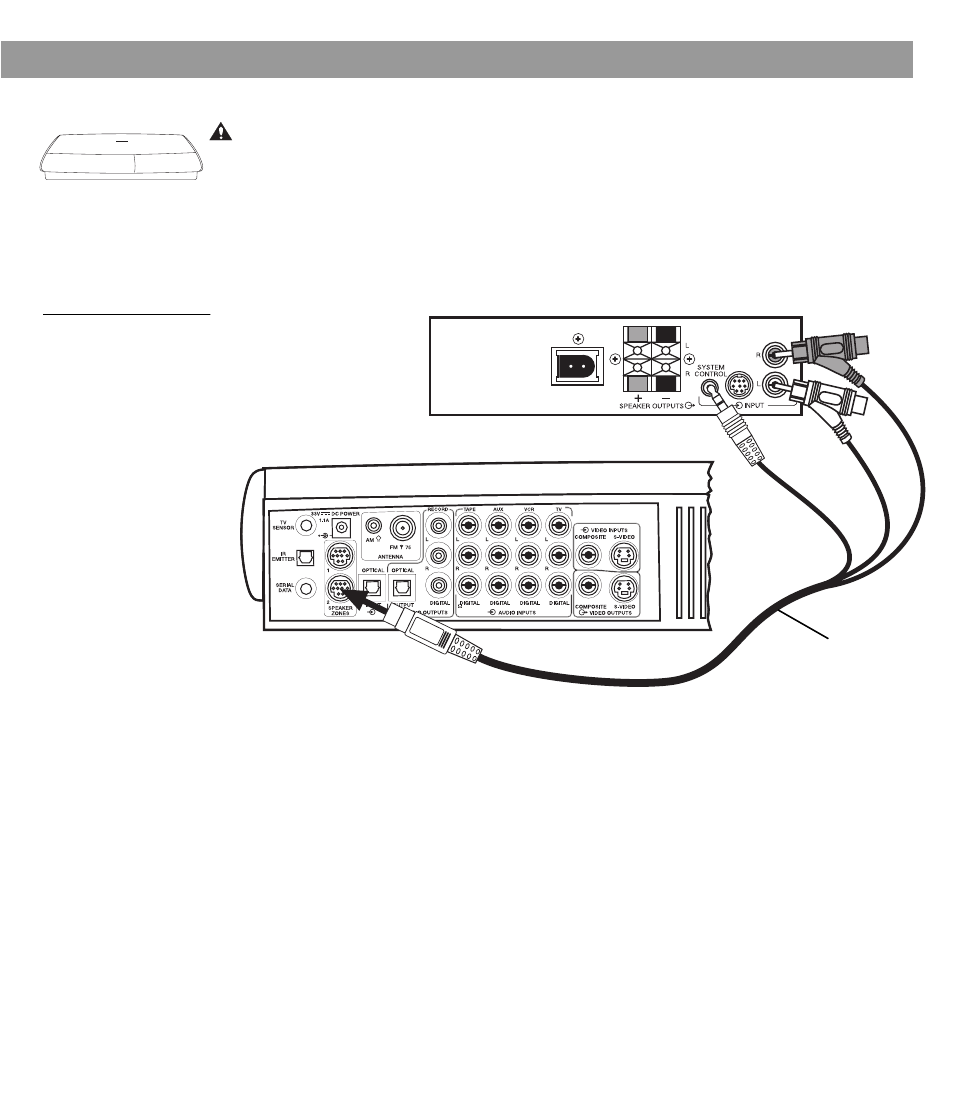

Figure 8
Cable connections between
the Lifestyle
® media center
and the Lifestyle ® stereo
amplifier
Lifestyle ® media center rear panel
Lifestyle ® SA-1 stereo amplifier rear panel
30-ft audio input
cable (supplied)
