48

English

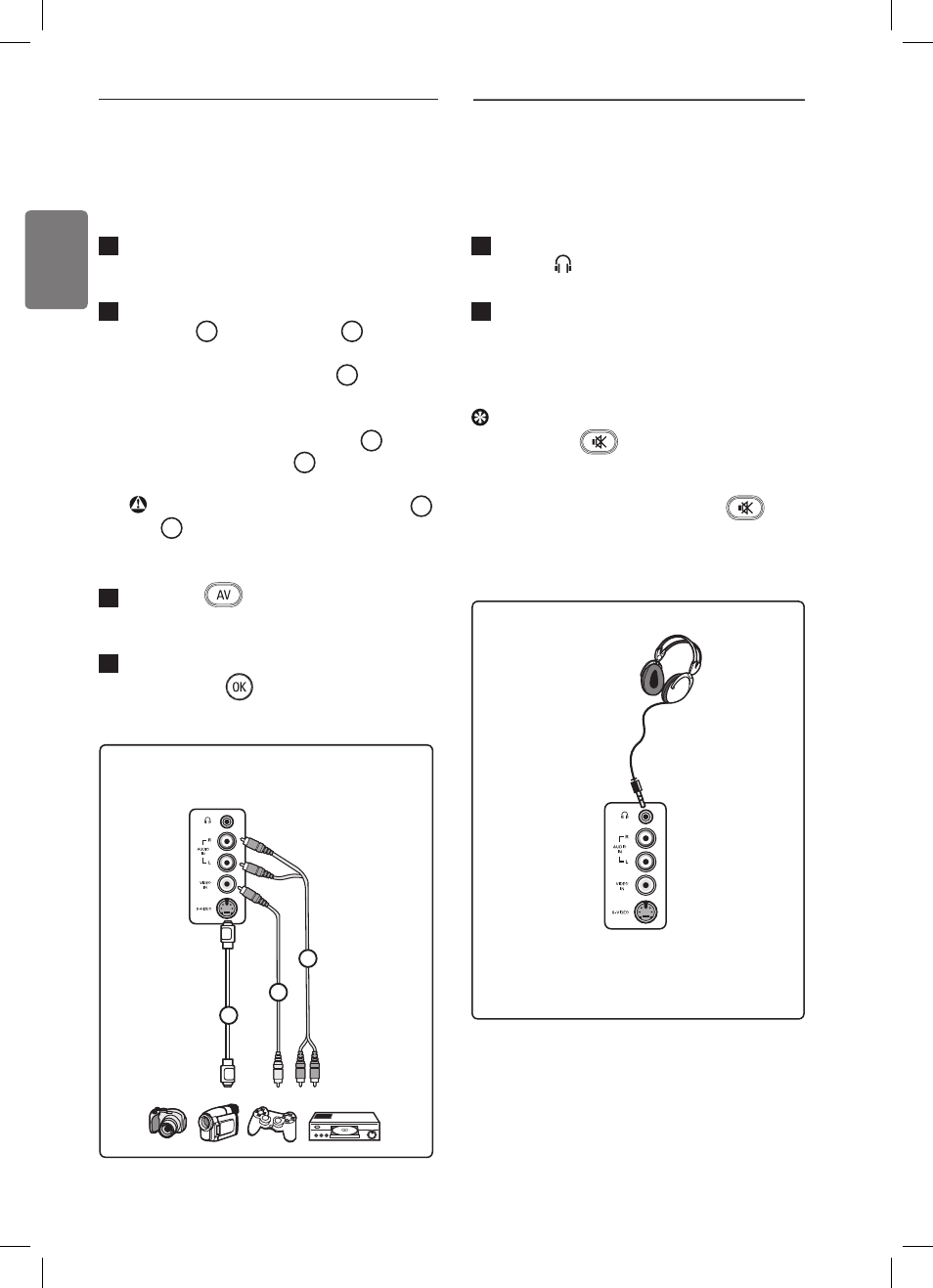

32.8 Connect a Camera, Camcorder,
Game

console

1

Connect your camera, camcorder or

game

console.

2

For mono equipment, connect to

VIDEO

2 and AUDIO L 3 (only).

For stereo equipment, connect both

AUDIO

L

and AUDIO R 3 .

S-VHS quality with an S-VHS camcorder

is obtained by connecting the S-VHS

cables with the S-VIDEO input 1 and

AUDIO L / R

inputs 3 .

Warning:

do not connect cables 1

and

2 at the same time. This may cause


distortion.

3

Press the

key on the remote

control to display Source list.

4

Press the ï key to select EXT 3 and

press

the

Æ

/

key to confirm

selection..

32.9. Connect a Headphone

1

Insert the plug into the headphone

socket as shown.

2

The headphone impedance must be

between 8 and 4000 Ohm. The

headphone socket has a 3.5 mm jack.

Tip

Press the

key on the remote

control

to switch off the sound from

internal loudspeakers of the TV.

To switch on sound, press the

key

again.

Connectors at side of TV

3

2

1

Connectors at side of TV
