Broadband Products AMC-6 User Manual
Page 21

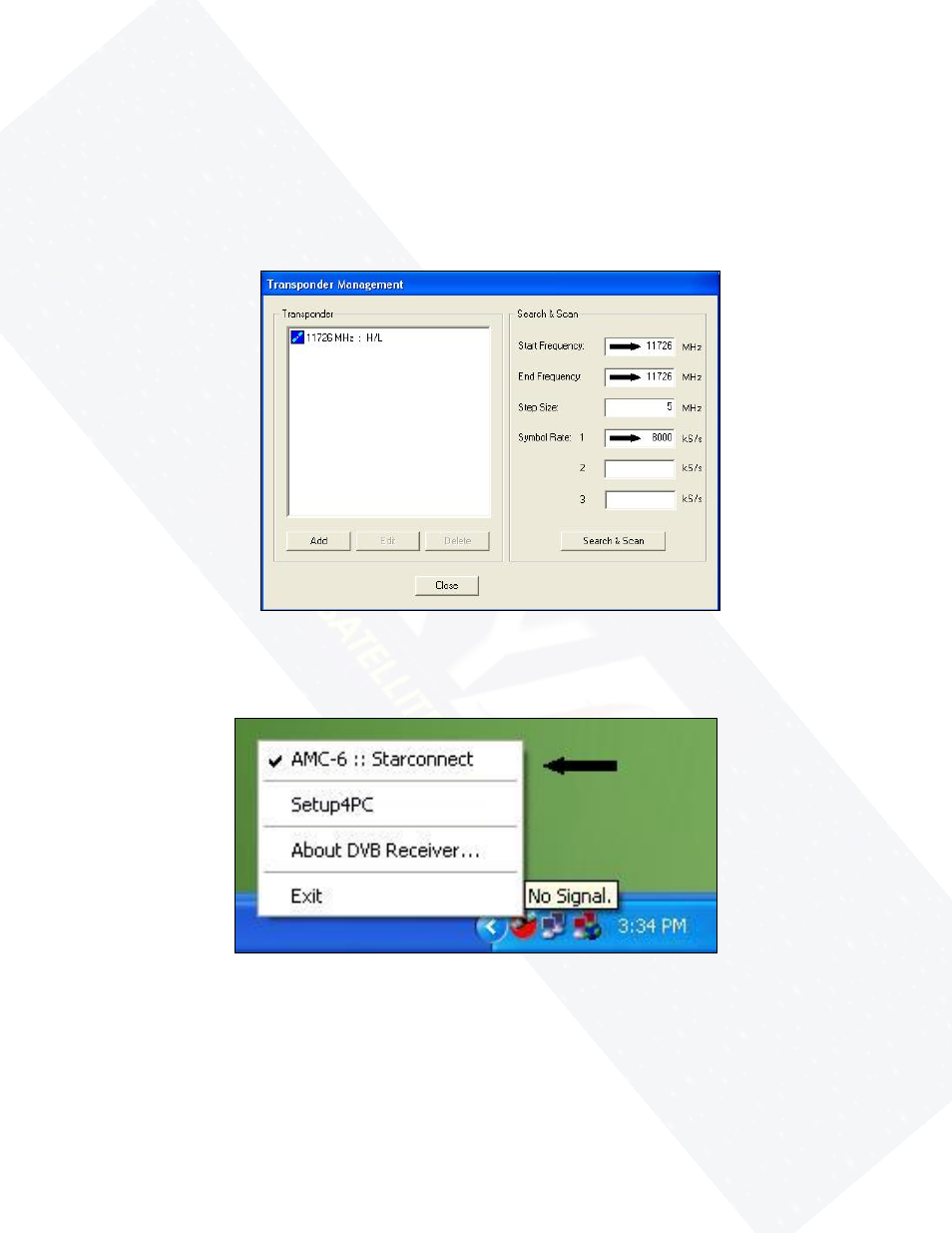

8. You will now be on the Transponder Management window. Check to make sure that the
Start Frequency and the End Frequency both have a value of 11726 in the boxes and the
Symbol Rate 1 has a value of 8000 in the box. If any are different, please change them at this
time as shown in Figure 4-10.
Figure 4-10
9. Now right click on the round satellite in the Task Bar next to the clock. This will bring up a
menu. Left click on AMC-6 :: StarConnect as shown in Figure 4-11.
Figure 4-11
10. Now left click on Close to close the Transponder Management window (Figure 4-12).
21
