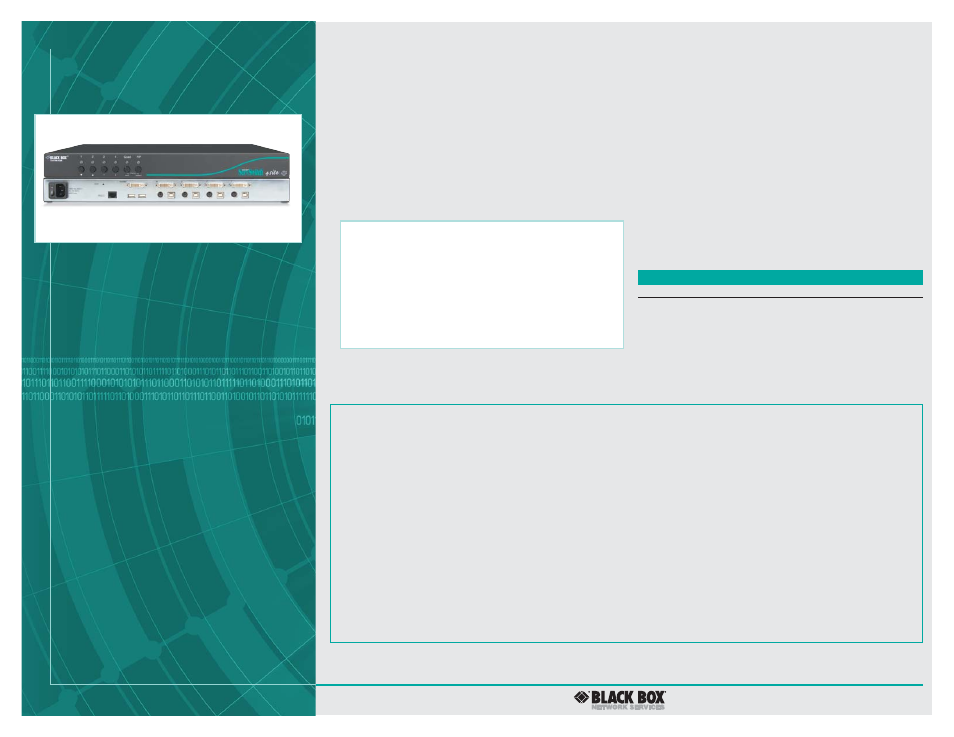

Black Box 4site - Manual (Page 3)

3 of 3 7/16/2006
#26526
The Computer option displays keyboard type (PC1, PC2, PC3,
or USB), mouse type (PS/2 ® , PS/2 wheel, or USB), and resets the
PS/2 mouse and keyboard.
The Help option lists keyboard commands, firmware revision
level, and contact information.
LED indicators on the front panel show the unit’s status.
An RS-232 serial port on the rear panel is used to load
firmware updates to the unit.
Recognize any of these situations?
• You wait more than 30 minutes to get through
to a vendor’s tech support.
• The so-called “tech” can’t help you or gives you
the wrong answer.
• You don’t have a purchase order number and the
tech refuses to help you.
• It’s 9 p. m. and you need help, but your vendor’s
tech support line is closed.
According to a survey by Data Communications
magazine, 90% of network managers surveyed say
that getting the technical support they need is extremely
important when choosing a vendor. But even though
network managers pay anywhere from 10 to 20% of their
overall purchase price for a basic service and support
contract, the technical support and service they receive falls
far short of their expectations—and certainly isn’t worth
what they paid.
At Black Box, we guarantee the best value and the
best support. You can even consult our Technical Support
Experts before you buy if you need help selecting just
the right component for your application.
Don’t waste time and money— call Black Box today.
Why Buy From Black Box? Exceptional Value.
Exceptional Tech Support. Period.
724-746-5500 blackbox.com
TECH SPECS
Resolution — Up to 1920 x 1200 pixels
Maximum Distance — 16.7 ft. (5.1 m) to console (keyboard-video-
mouse), 16.7 ft. (5.1 m) to CPU
User Controls — (4) Port-switching buttons, (1) Quad-mode button,
(1) PiP mode button, (1) Reset button, (1) Power switch
Connectors — Computer ports: (4) DVI-I (analog and digital), (4) PS/2,
(4) USB;
Console ports: (1) DVI-I, (2) USB for keyboard and mouse;
RS-232: (1) RJ-45;
Power: (1) IEC-320
Indicators — (4) Port LEDs, (1) Quad mode, (1) PiP mode
Power — 100–240 VAC, 50–60 Hz, 40 watts maximum
Size — 1.75"H x 17.1"W x 9.2"D (4.4 x 43.4 x 23.4 cm)
Weight — 6.4 lb. (2.9 kg)
Item Code
ServSwitch 4Site KVP4000A
Remember to order cables…
ServSwitch DT Series CPU Cable
6-ft. (1.8-m) EHN900024U-0006
10-ft. (3-m) EHN900024U-0010
15-ft. (4.5-m) EHN900024U-0015
✦ (1) ServSwitch 4Site
✦ (1) IEC-320 power cord
✦ (1) 6.7-foot (2-m) DB9 female to RJ-45 male
serial flash control cable
✦ (1) CD-ROM containing a user’s manual
You need to purchase additional cables to link the switch
to the servers/computers. See the ordering block.
WHAT‘S INCLUDED
