Control panel
a VOL ◄/►
Adjusts the Volume. In the Menu screen, moves the Cursor Left
(◄) / Right (►).
VOL ◄ : Volume Down
VOL ► : Volume Up
b CH ▲/▼
Selects a Channel. In the Menu screen, moves the Cursor Up (▲)
/Down (▼).
c MENU
Opens the Main On-screen Menu.
d SOURCE
Selects Connected devices.
e (POWER)
Turns the TV On and Off.
f Remote Control Sensor
Receives IR signal from Remote control.
g Power On / Standby Indicator
(On : lights in white, Standby : no light)
h Ambient Light Sensor
Alters the brightness of the TV screen automatically by detecting
your room lighting level. Do not block this Light Sensor window
to allow proper operation.
Terminals
i Digital Audio Output jack
Digital Audio (S/PDIF) Output to home theaters and other Digital
Audio systems.
j Component (Y/Pb/Pr) / Composite Video (VIDEO) Input jacks
for VIDEO
Composite Video Input (VIDEO) jack is a shared jack with
Component Video Input (Y) jack.
k Analog Audio (L/R) Input jacks
Connect Analog Audio signals from;
– HDMI-DVI / Analog Audio (L/R) jacks signal
– Component Video / Analog Audio (L/R) jacks signal
– Composite Video / Analog Audio (L/R) jacks signal
– PC Connection / Analog Audio (L/R) jacks signal with Stereo
mini 3.5mm plug Audio cable on PC
l HDMI Input jack(s)
Digital audio and video Input from high definition Digital devices
such as DVD / Blu-ray disc players, cable / satellite set-top boxes
PC’s.
m PC Input jack
VGA cable connection for PC.
n USB terminal
Data Input from USB Memory Stick only.
Do not connect any device to this terminal such as; Digital
camera, keyboard, mouse, etc.
o 75 ohm Cable / Antenna connection
Signal Input from an antenna or cable / satellite set-top boxes.
p Headphone Audio Output jack
Headphone 3.5mm stereo jack for personal listening.
50PFL3708 / 46PFL3708
* Keys on Rear.

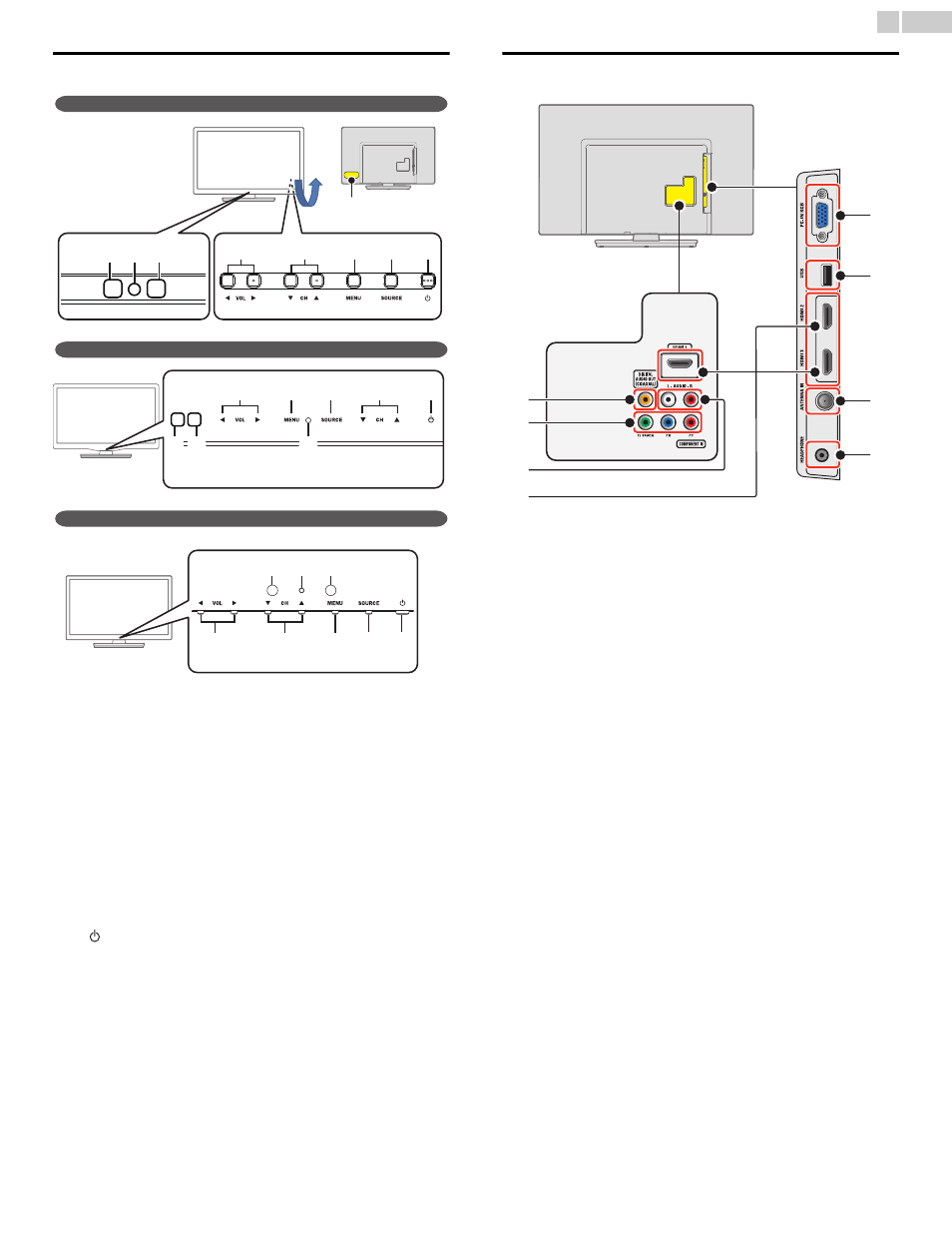

Control Keys are located
on the Rear side of the TV
e d c b a f g h
* When seen from the front.
40PFL4708 / 32PFL4508 / 29PFL4508 / 24PFL4508
e d c b a
g f h*
* 40PFL4708 only
40PFL1708 / 39PFL2708 / 32PFL3508
e d c b a
f h g
*
* 40PFL1708, 39PFL2708 only
i
k
l
m
n
o
p
j
