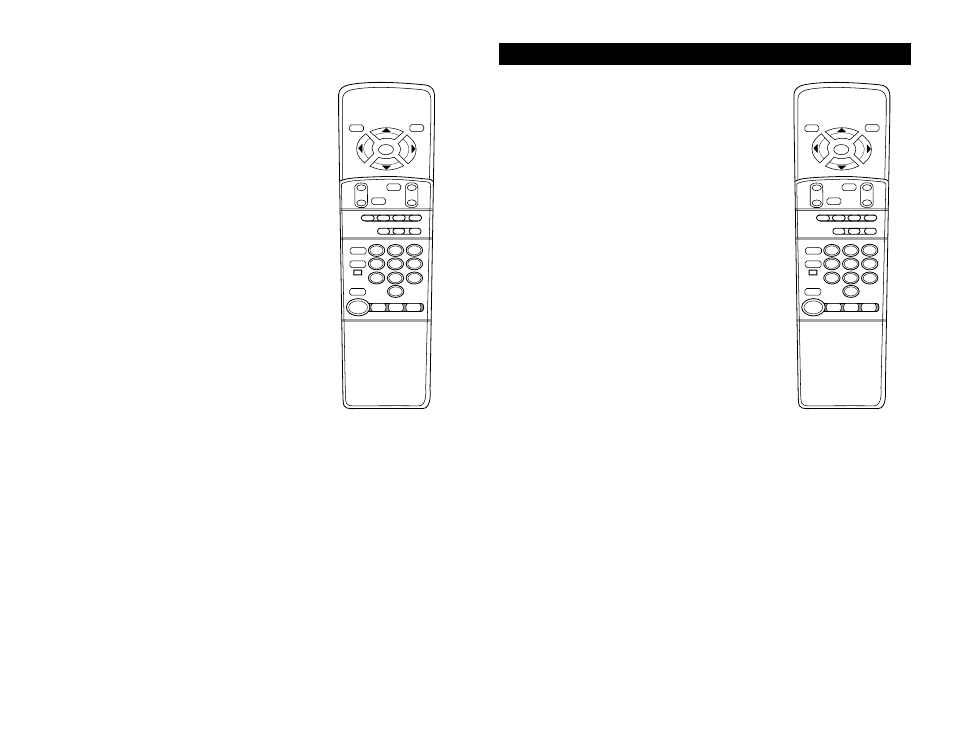

The T374AH remote control is used to perform setup
and verification operations on Philips Consumer
Electronics Company commercial chassis. This remote
is fully backward compatible with previous commercial
chassis setup remotes, but has added functionality.
The three buttons at the bottom of the remote,

TV Guest,
TV Setup, and
DCM Setup,

are called function buttons. They are used to select
the desired function to be performed.

TV Guest mode will emulate the “Guest” remote
commands. This provides the installer the ability to
verify proper “Guest Remote” operation using only
one remote. Only the commands supported on the
“Guest” remote may be valid. To use this function,
press the TV GUEST button, then press any button
that corresponds to the “Guest Remote.” The remote
will remain in the TV Guest mode until another func-
tion button is pressed.

TV Setup mode is used to set all the TV control settings and commercial features.
This function is completely backward compatible with previous setup transmitters but
has additional buttons that are valid for newer TV control systems. The remote will
remain in the TV Setup mode until another function button is pressed.

DCM Setup (Data Communication Module) mode is similar to the TV Guest
Mode except the Select and Cursor keys send “Softkey” commands, allowing the DCM
to have its own setup keys. The function of these keys will depend upon each DCM
manufacturer. The remote will remain in the DCM Setup mode until another function
button is pressed.

Softkey is defined as a command that is never acted upon by the TV control system.
It is always passed through the “Smart Port” to the DCM. Each DCM manufacturer
can make its own interpretation of the function of the key. The functional description
of the TV controls and features are as follows: To set up the TV, press the TV Setup
button to place the remote in TV Setup mode.

Channel Guide
This feature is activated with the Guest or Setup
remote’s CH GDE button. This feature uses the labels
that are assigned by the channel labeling function
described on page three. Once activated by pressing
the CH GDE button, the TV lists the Channel Labels
for channels with assigned labels. Channels that are
not in the Favorite Station memory (see “ADD
CHANNEL” on page four) will not be displayed. Each
listing or “page” will show seven channel labels. Each
press of the CH GDE button will show subsequent
channel listing pages if they exist. The maximum num-
ber of labels that can be displayed is 32. If CH GDE is
not pressed for seven seconds, the listing will timeout.
If any other remote command is sent that requires the
television on-screen display, the listing will be cleared,
and that command invoked.

IMPORTANT:

When programming is

complete, press or depress the RECALL
button to save the program changes in the
TV memory.

To adjust the TV for either Hotel or Consumer mode,
press the TV SETUP button on the remote, then enter
the numerical sequence 02 49 95, then press the
SELECT button. Choose between Hotel or Consumer
mode by pressing either the + or - button. Only a lim-
ited amount of features are available in Consumer
mode.
