EXPLODED VIEWS AND PARTS LISTS
5

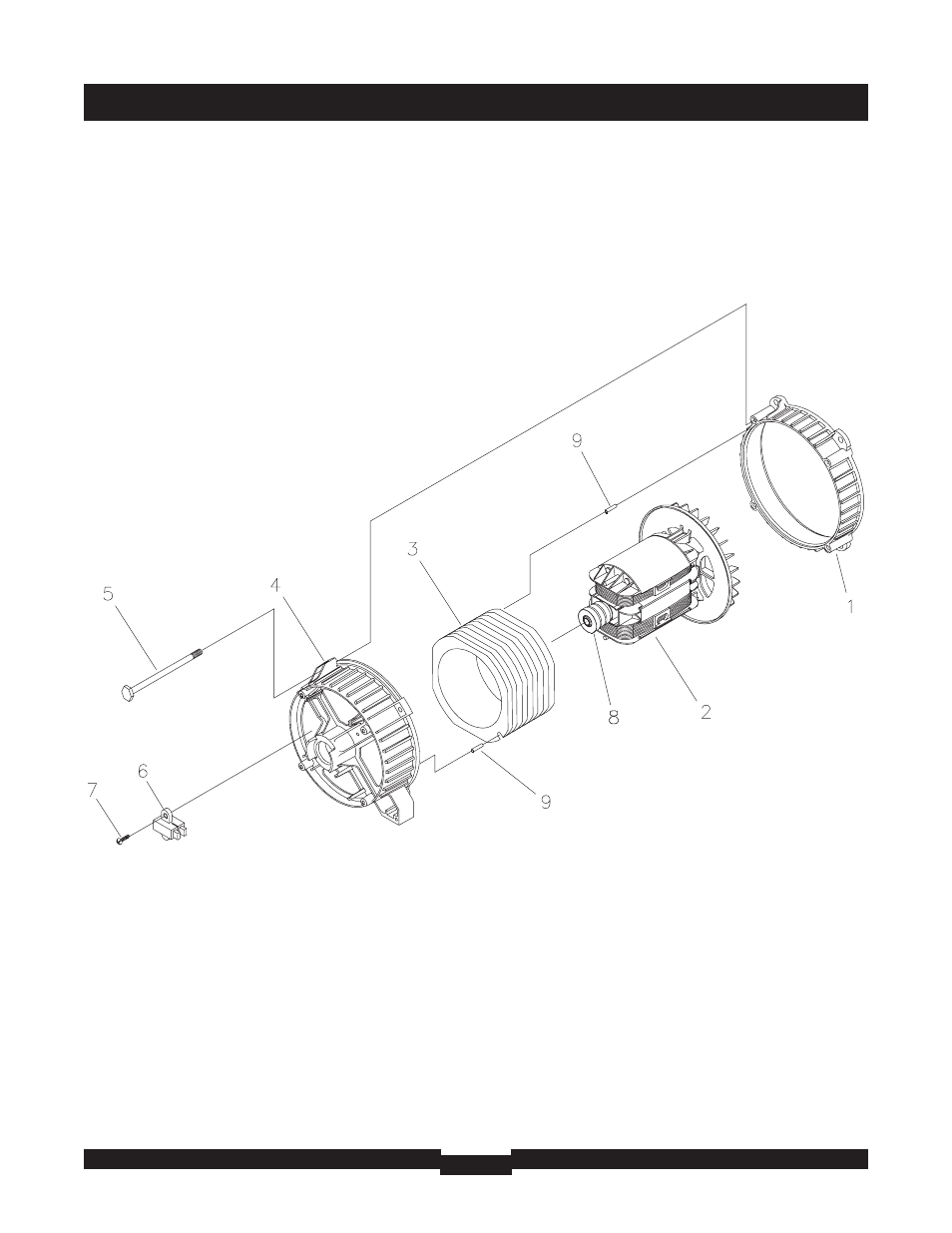

EXPLODED VIEW AND PARTS LIST - ALTERNATOR
Item Part #
Description
1
186059GS
ADAPTER, Mounting, Alternator
2
199545GS
ROTOR (Includes Item 8)
3
199546AGS
STATOR
4
186060GS
RBC, (with O-Ring, p/n 189197GS)
5
86308GS
HHCS, M6 - 1.0 x 115 SEMS
6
91825GS
ASSY, Holder, Rectifier/Brush
7
66849GS
TAPTITE, M5 - 0.8 x 16
8
65791GS
BEARING
9
81917GS
PIN, Roll, 4mm x 10
