BUNN ® practices continuous product research and improvement. We reserve the right to change specifications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

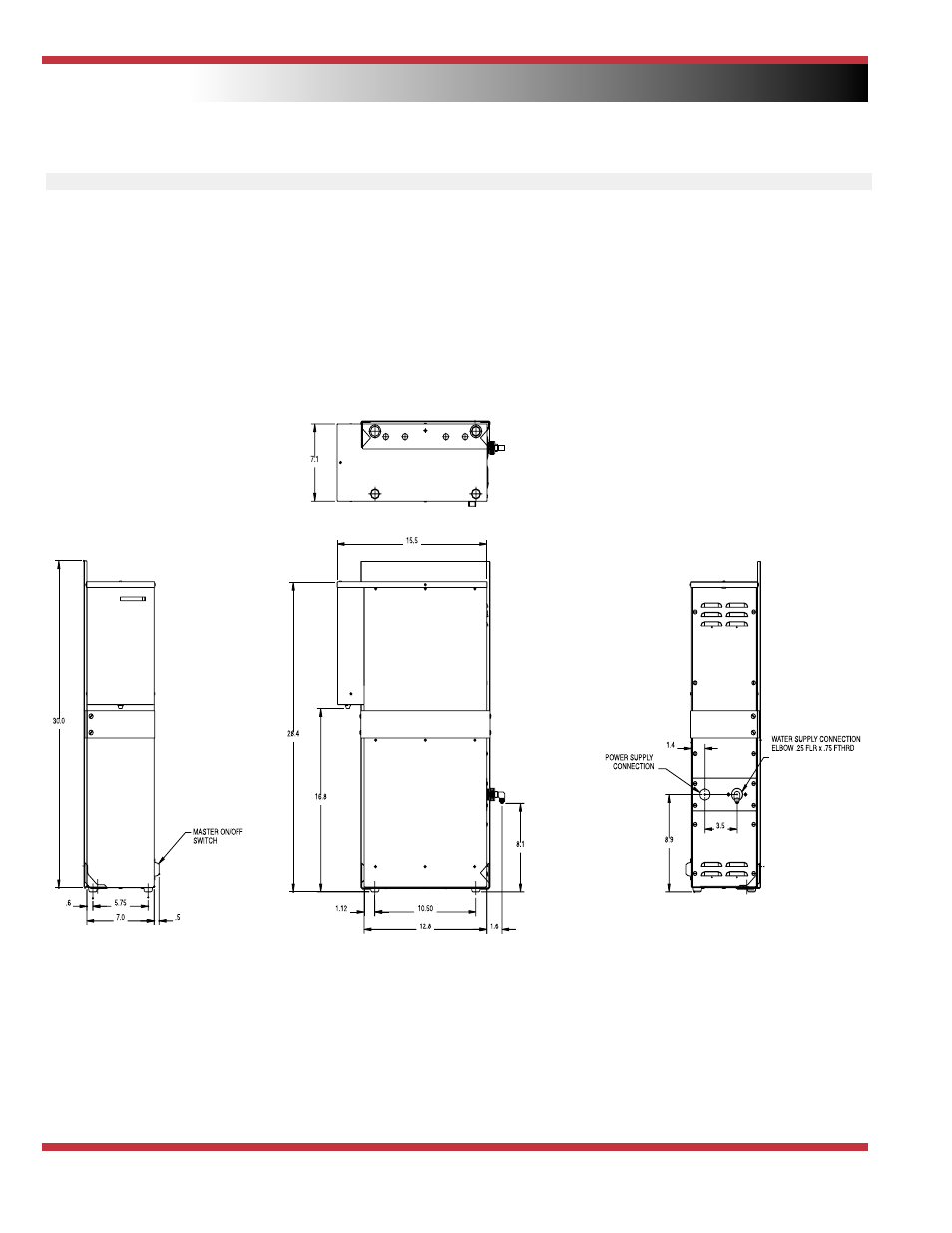

All dimensions shown in inches.
Bunn Corporation owns all copyrights relating to materials in this publication. Please contact Bunn Corporation to request permission to reproduce any portion of this publication.
Dimensions & Specifications
BUNN Corporation - 1400 Stevenson Drive Springfield, Illinois 62703 • 800-637-8606 • 217-529-6601 • Fax 217-529-6644 • www.bunn.com
Model Product # Volts Amps Tank Heater Total ˚F Gal./Hr. † Gal./Hr. † Cubic Shipping Cord
Watts Watts Settings cold water hot water Ft. Weight Attached
input 35˚ input 140˚
H5E-DV PC 39100.0000 120 15.3 1800 1850 200˚F* 3.7 8.1 4.0 ft 3 35 lbs. No
240 17.4 4000 4180 7.3 14.7
H5E-DV PC 39100.0001 120 15.3 1800 1850 90˚F* 8.1 n/a 4.0 ft 3 35 lbs. No
240 17.4 4000 4180 14.7 n/a
Electrical: All models require 2-wires plus ground service, single-phase. Supplied strain relief on rear side of machine.
Plumbing: 20-90 psi (138-621 kPa). Machine supplied with
1 ⁄
4
" OD male flare fitting.
* Adjustable 65˚F to 205˚F.
† Based upon a maximum single dispense of 2 gallons per portion.
