Billion BIPAC-5100 / 5100W ADSL Router
3

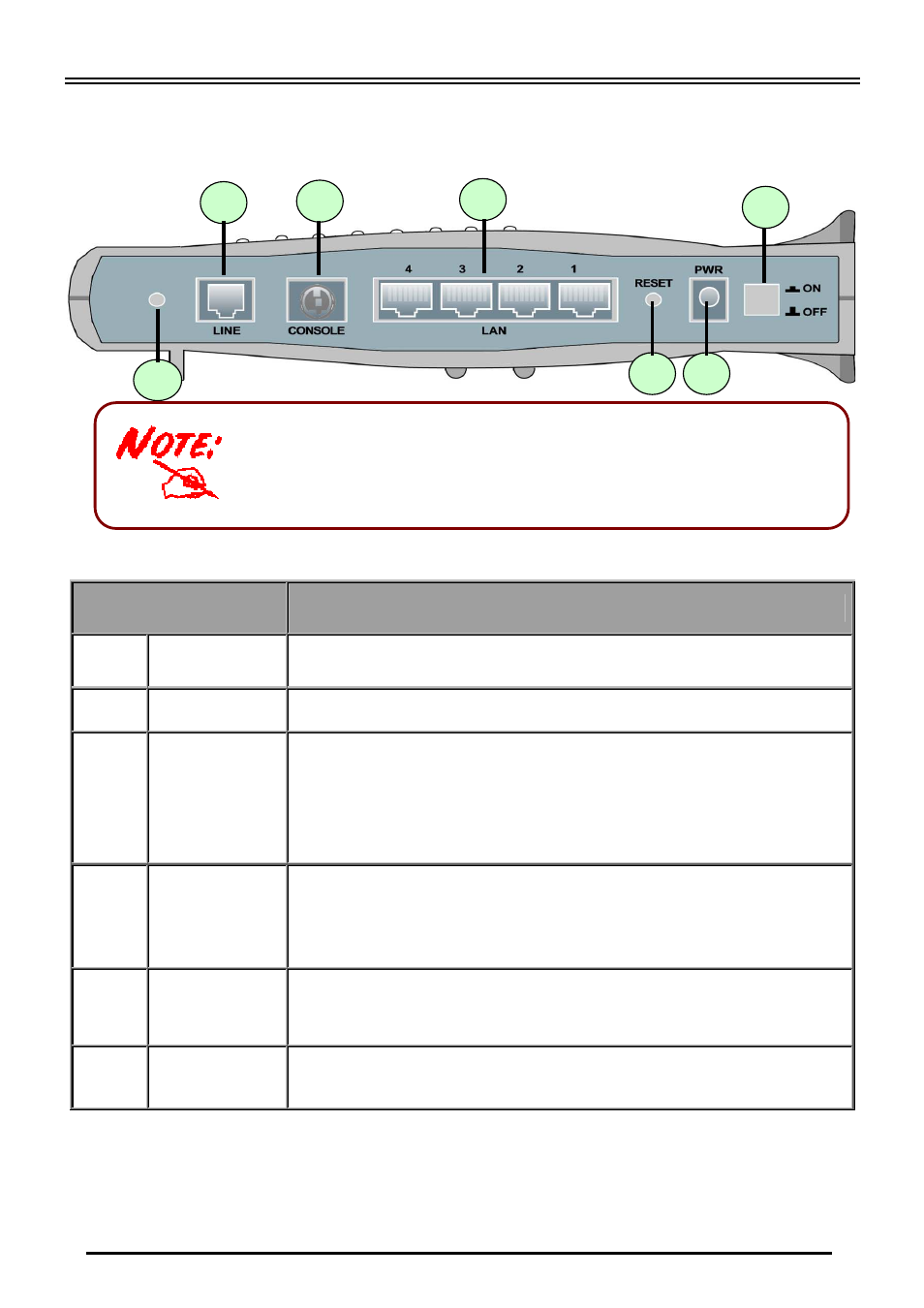

The Rear Ports
Port Meaning
1
Power Switch
Power ON/OFF switch
2
PWR
Connect the supplied power adapter to this jack.
3 RESET
After the device is powered on, press it to reset the device or
restore to factory default settings.
0-3 seconds: reset the device
6 seconds above: restore to factory default settings (this is used
when you can not login to the router, e.g. forgot the password)
4
LAN
1X — 4X
(RJ-45
connector)
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four
LAN ports when connecting to a PC or an office/home network of
10Mbps or 100Mbps.
5
CONSOLE
Console port is used for technical support purpose only.
6
LINE Connect the supplied RJ-11 (“telephone”) cable to this port when
connecting to the ADSL/telephone network.
1
2 3
4 5 6
＊
＊
Only the BIPAC-5100W has a wireless interface and antenna. BIPAC-5100
router does NOT have an antenna or wireless interface.
