Installation Instructions
Sub-Frame Hitch
A
C
D
E
B

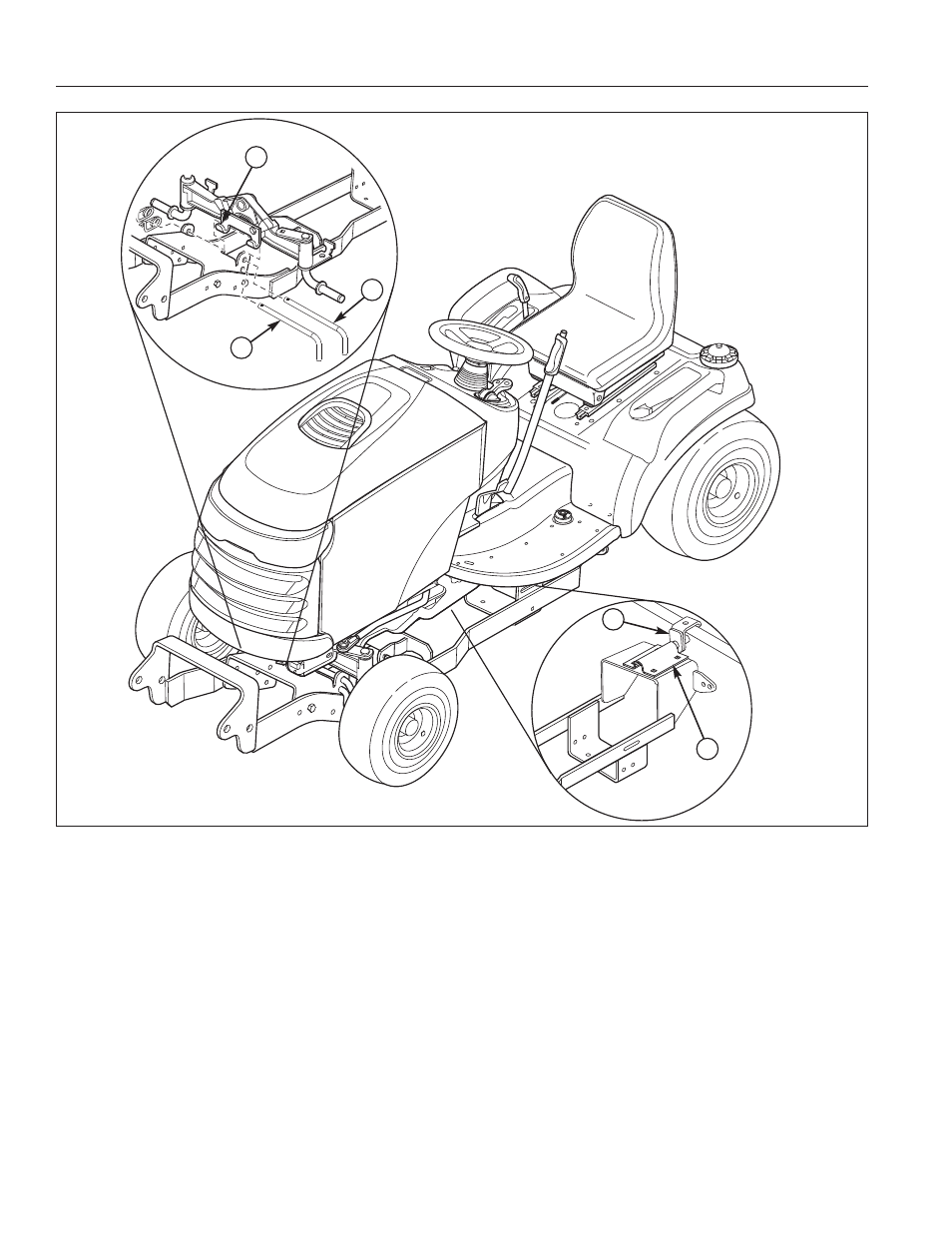

Figure 8. Install Hitch
A. J-Hooks
D. Hook
B. Hitch Rod E. Clamp Plate
C. Hitch Rod
Install Hitch
1. Slide the hitch under the tractor.
2. Raise the rear of the hitch and place the hook (C)
over the lift shaft.
3. Connect the front of the hitch to the tractor J-hooks
(A, Figure 8) using the hitch rod (B) and a safety clip
in the top holes of the push bar latch.
4. Secure the front of the hitch to the tractor by attach-
ing the hitch rod (C) and a safety clip in the bottom
holes of the push bar latch.
5. Push the clamp plate (D) backwards until it is snug
against the lift shaft. Tighten the clamp plate hard-
ware (E).
