Thermoglaze 50 MN-1716EN 19

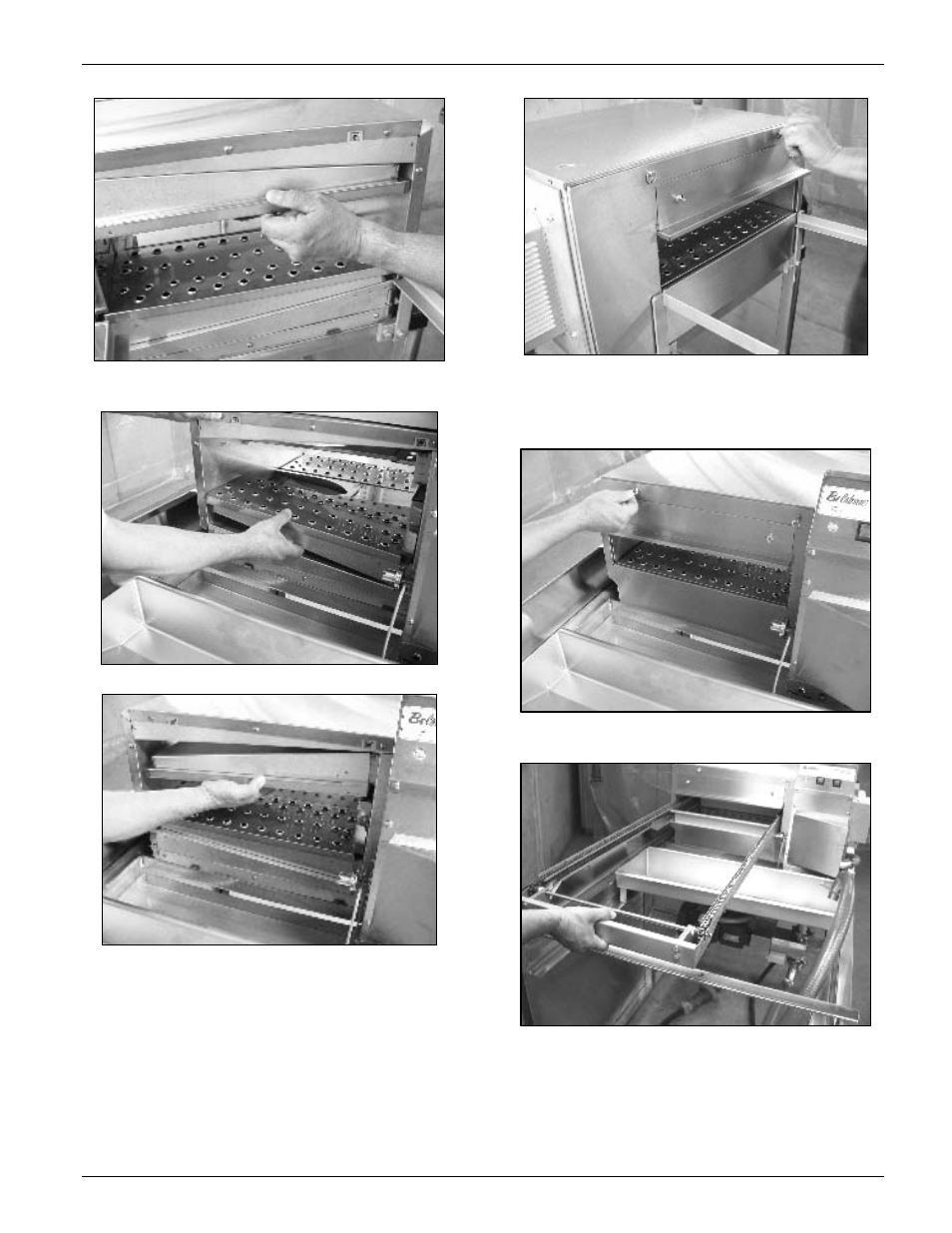

17. Then lift it up, slide it to the front of the
oven and hook it on the brackets.
18. Install the lower outfeed finger assembly.
19. Install the upper outfeed finger assembly.
20. Install the infeed end cover by lining up
the slots at the bottom of the end cover
with the brackets on the oven and push in
on the latches and turn clock wise.
21. Install the outfeed end cover same as the
infeed.
22. Insert the conveyor through the outfeed
end of the oven.
