USB INSTALLATION

USB Installation:

Keyboard, Monitor, and Mouse Connections

Available on F1DS102T and F1DS104T models only

Note: On some computers, you must enable USB support on your

system BIOS. Please reference your computer manufacturer's
manual or motherboard manual to verify that USB support
is enabled.

CONSOLE:

Connect the monitor to the SOHO Series KVM Switch. Using

the cable that is included with your monitor, connect it to the
HDDB15 female port on the top of the SOHO Series KVM Switch
with the monitor symbol on the CONSOLE. See fig. 10.

Connect a PS/2 keyboard to the PURPLE port on the

CONSOLE. See fig. 11.

Connect a PS/2-type mouse to the GREEN port on the

CONSOLE. See fig. 11.

4. Power on your computer as you would normally and wait until

your operating system completes loading.

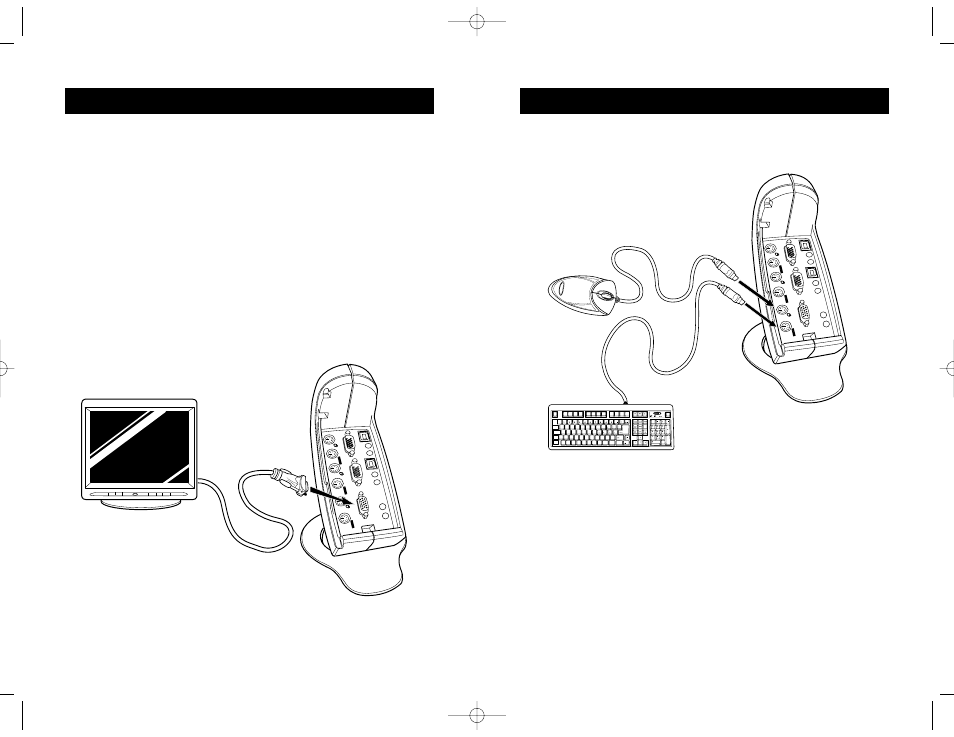

fig. 10

fig. 11
