30

Grease Tray

Side Burner
Igniter Lead

Electrode

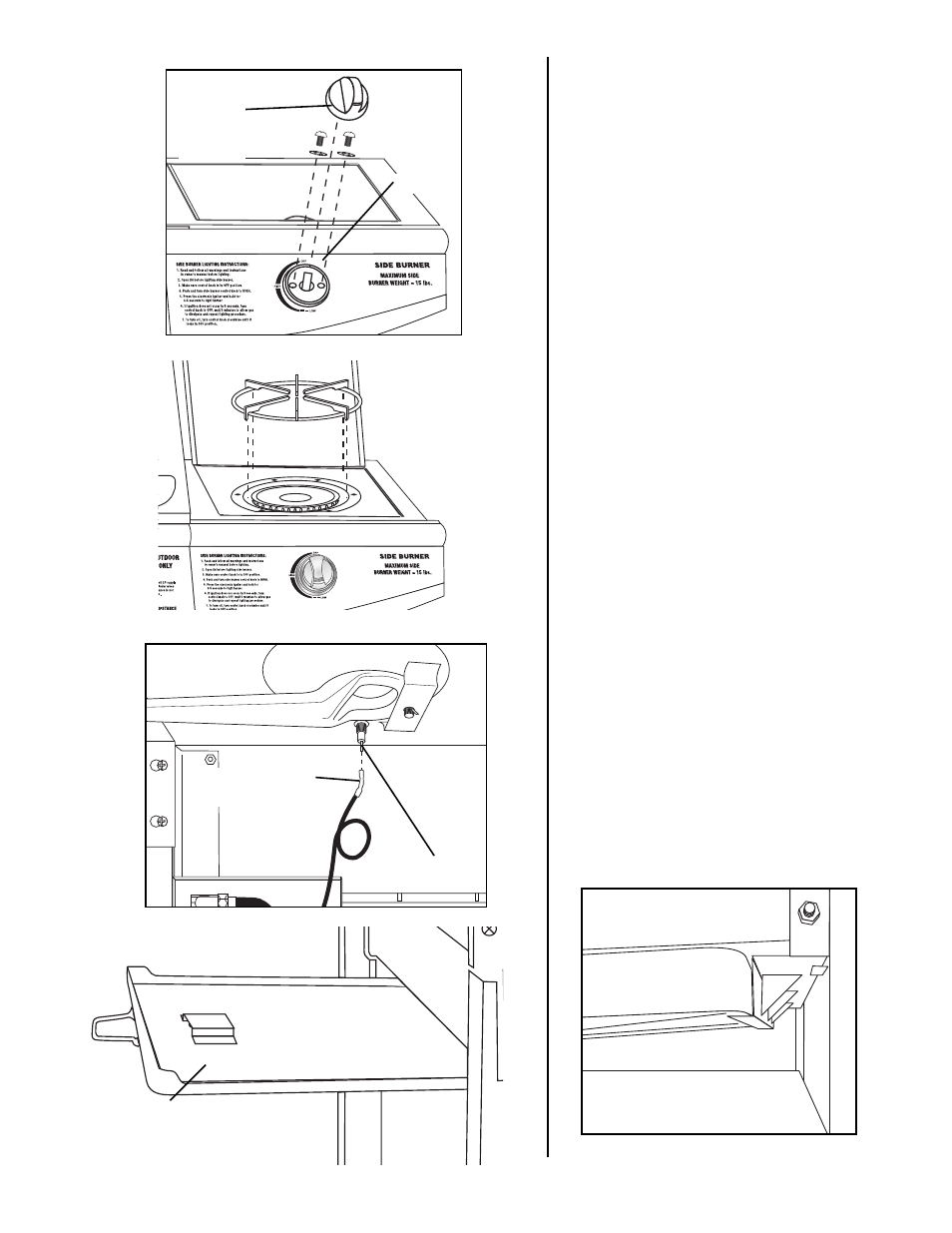

Step 21

Place the bezel over the control
knob mounting stem and position
over holes in side burner base and
side burner valve assembly. Attach
with two M4 bolts with lock washers
which come with valve. Then install
the side burner control knob onto
valve stem.

Step 22

Place the side burner grate onto
the side burner table.

Step 23

Attach side burner igniter lead wire
to the electrode as illustrated.

Step 24

Insert grease tray into opening on
backside of grill. Make sure to slide
tray onto tracks as illustrated.

Bezel

Side
Burner
Control
Knob
