2 BRIGGSandSTRATTON.COM

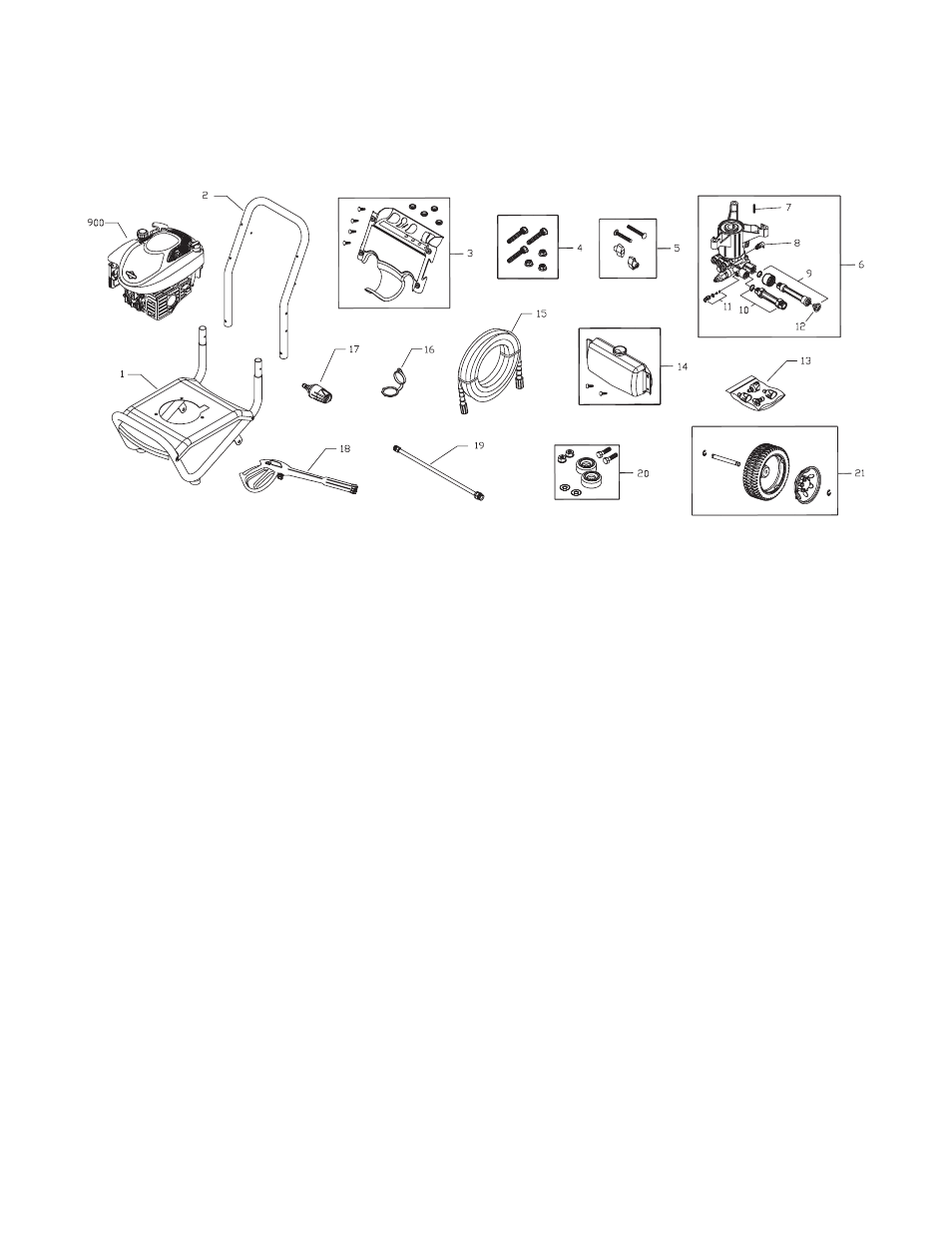

Exploded View and Parts List — Main Unit
tem Part # Description
1 202481GS BASE, w/Vibration Mounts
2 J199110GS HANDLE
3 202762GS KIT, Billboard Assy, w/Decals & Clips
195964GS Clip
30809GS Grommet
4 203526GS KIT, Pump Mounting Hardware
5 B2203GS KIT, Handle Connector
6 202274GS ASSY, Pump
7 23139GS Key
8 194298GS Valve, Thermal Relief
9 201496GS Kit, Water Inlet
10 201497GS Kit, Water Outlet
11 192914GS Kit, Hose Tail
12 B2384GS Filter, Inlet
13 202181GS KIT, Nozzle
201580RGS Nozzle, Project Pro, Yellow
201580XGS Nozzle, Project Pro, Orange
201580AEGS Nozzle, Project Pro, Red
198841GS Nozzle, Plastic, Soap
14 205369GS ASSY, Chemical Tank
192980GS Kit, Valve
195964GS Clip
15 202017GS HOSE
16 B3222EGS CAP, Chemical Container
17 198730GS ASSY, Turbo Max
Item Part # Description
18 204627GS GUN
19 200595GS EXTENSION
20 192310GS KIT, Vibration Mount
21 202483GS KIT, Wheel
203872GS Axle
200520GS Hubcap
192050GS E-Ring
900 § ENGINE
Items Not Illustrated:
205301GS MANUAL, Operator’s
BB3061BGS OIL BOTTLE
87815GS GOGGLES
A1040NGS HOSE, Chemical
794693 LABEL, Warning
794706 COVER, Static/Label Assy
200672GS DECAL, Caution, Hearing
202215GS DECAL, Eng, Shroud
195015GS KIT, Tag Warning, English/French
Optional Accessories
6039 PUMP SAVER
6048 KIT, O-Ring Maintenance
§ - Contact Engine Manufacturer
