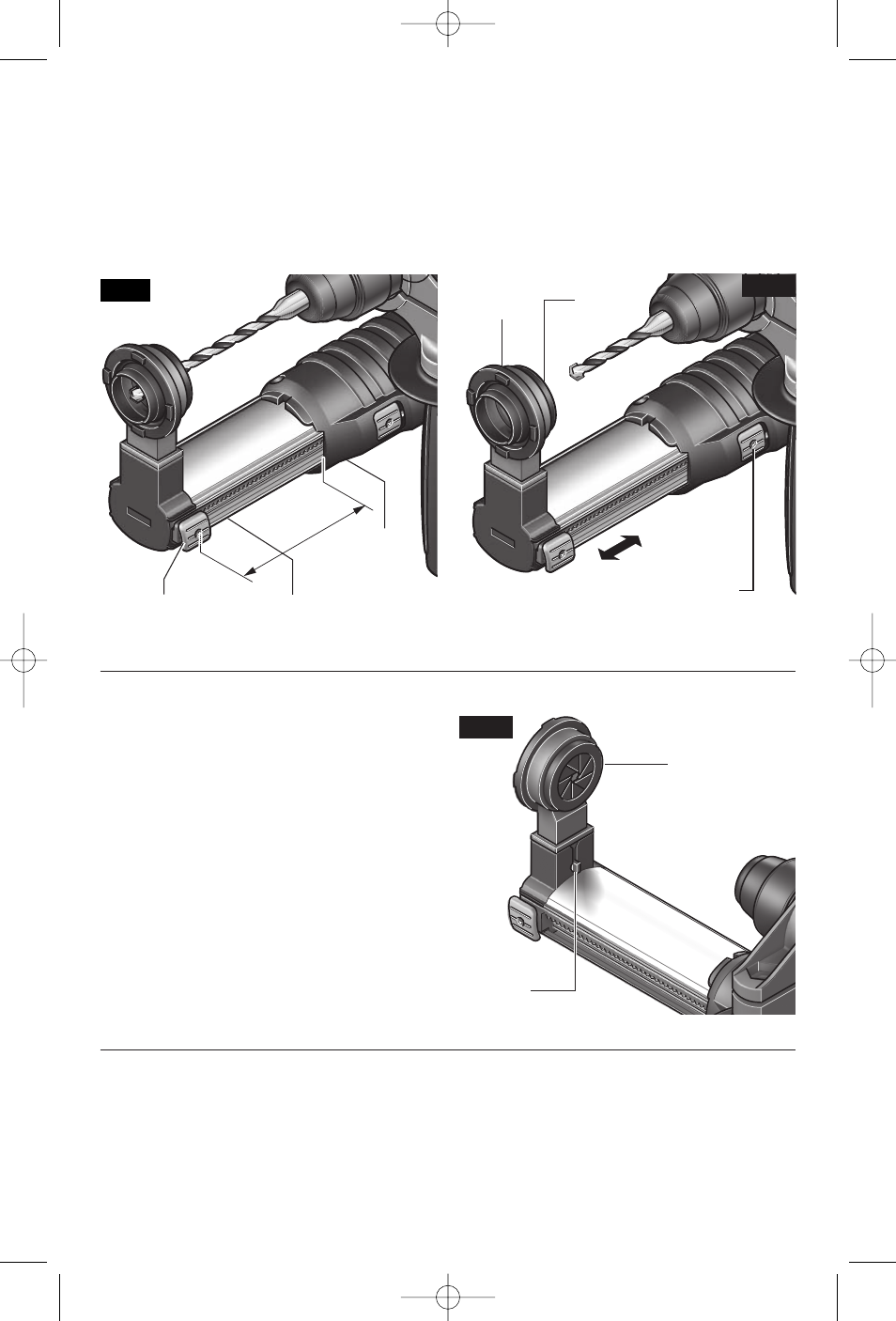

FIG. 9
FIG. 10
TELESCOPIC
GUIDE
DEPTH STOP
BUTTON
GUIDE
HOUSING
GUIDE
ADJUSTMENT
BUTTON
DUST
SEAL
DUST CAP FOR SMALL DRILL BITS
Your tool is equipped with a standard dust cap
for use with with small drill bits. To change the
dust cap, push the release button and pull the
dust cap out of the dust extraction system.
To insert the dust cap, push it into the end of
the dust extraction system until you hear it lock
into place (Fig. 11).
-10-
DUST CAP
RELEASE
BUTTON
DUST CAP
FOR SMALL BITS
been released. (When drilling, the telescopic
guide will compress until it engages the depth
stop button.)
ADJUSTING THE TELESCOPIC GUIDE
TO THE BIT LENGTH
For more convenient operation when using
short drill bits, the length of the telescopic
guide can be adjusted to desired lengths.
To adjust length, push and hold the guide
adjustment button, compress the telescopic
guide until dust cap is close to the tip of the drill
bit (Fig. 10). To lock adjustment, release
button.
To unlock adjustment, push the guide
adjustment button.
DUST
CAP
DUST CAP FOR CORE BITS
1-1/2" MAXIMUM CAPACITY
(Not included, available as accessory)
When using core bits, the dust cap for small
drill bits must be removed and replaced with a
special dust cap for core bits (optional
accessory).
When using the dust cap for core bits (optional
accessory), the vacuum adapter dust canister
FIG. 11
