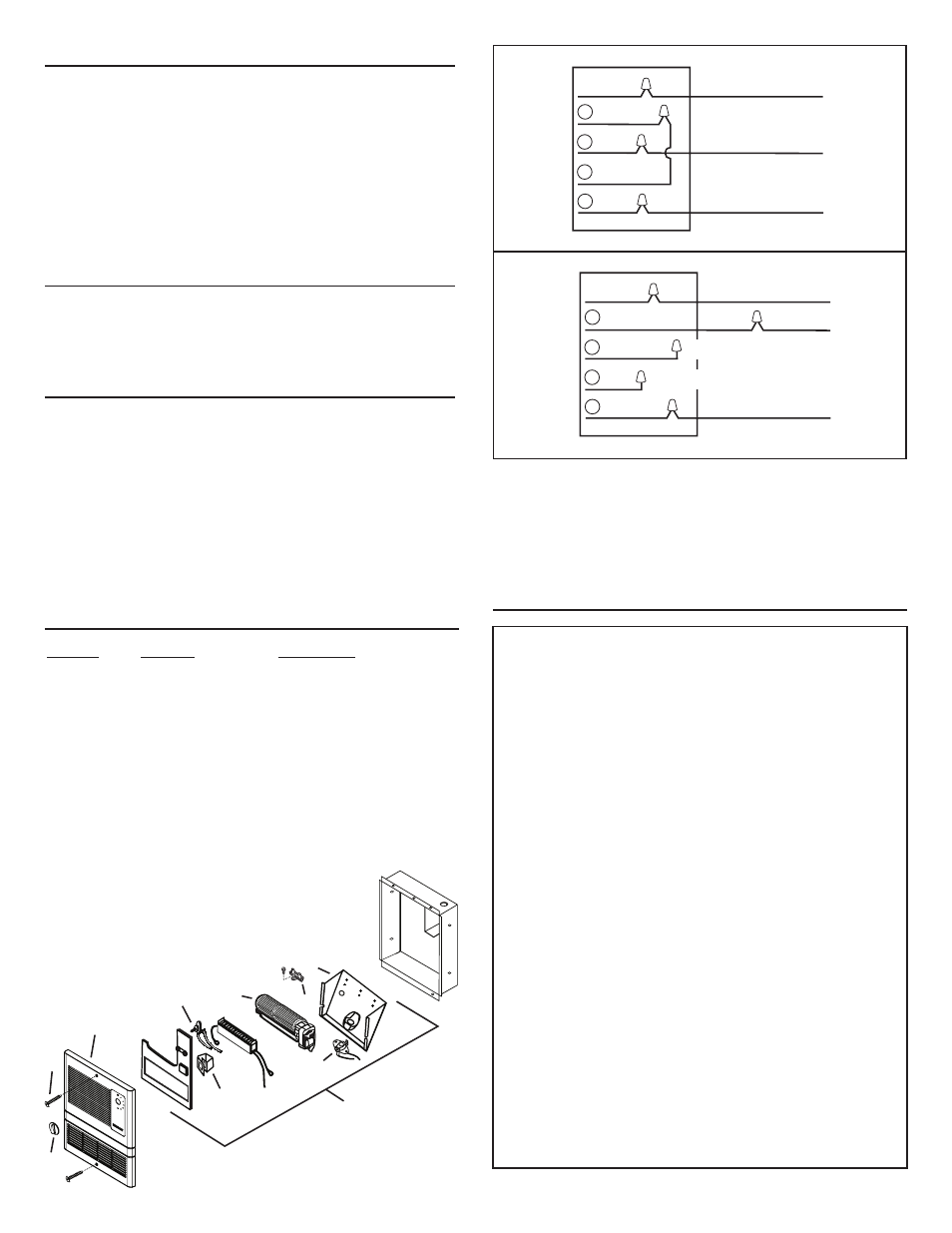

WIRING CONNECTIONS
All wiring must comply with local codes and unit must
be properly grounded.
1. While making wiring connections, support the heater
assembly on the bottom of the rough-in frame.
2. For 120 Volt operation, make wiring connections as
shown in Figure 4.
3. For 240 Volt operation, make wiring connections as
shown in Figure 5.
4. Use wire nuts to make connections. Insulate all
connections with electrical tape.
SECURING THE HEATER
1. Dress all wiring back to into junction box.
2. Locate center holes in housing flange and align with
mounting holes in grille.
3. Use two provided screws to attach grille to housing.
OPERATION
Turn thermostat fully clockwise to HIGH position. Allow
heater to run until room is at desired temperature. Adjust
thermostat as required to maintain desired temperature. Turn
the thermostat to FULL COUNTERCLOCKWISE position
when operation is no longer desired.
Thermal protector: If for any reason temperatures increase beyond normal limits, a safety thermal fuse will shut heater off. The
heater will require servicing by a qualified electrician.
Check entire installation to determine cause of overheating.
4
1
2
3
4
1
2
3
FIGURE 4
FIGURE 5
120vAC
240vAC
GREEN OR BARE
GROUND
GREEN
GROUND
WHITE
BLACK BLACK
RED
WHITE
YELLOW
120vAC 60HZ
GREEN OR BARE
GROUND
GREEN
GROUND
RED OR WHITE
BLACK BLACK
RED
WHITE
YELLOW
240vAC 60HZ
NO
CONNECTION
NO
CONNECTION
Key No. Part No. Description
1 99111432 Grille
2 99360253 Knob
3 52872039 Grille Screw
4 44953000 Heater Assembly (9810WH)
44954000 Heater Assembly (9815WH)
5 57271000 Thermostat, with Mounting Nut
6 33384000 Thermostat Cover
7 33178000 Blower & Motor
8 0936B000 Thermal Protector
9 61962000 Heat Box
10 35841000 Thermal Fuse (2 required)
SERVICE PARTS
1
2
3
4
5
6
7
8
9
10
