Quick Start Guide
- 2-

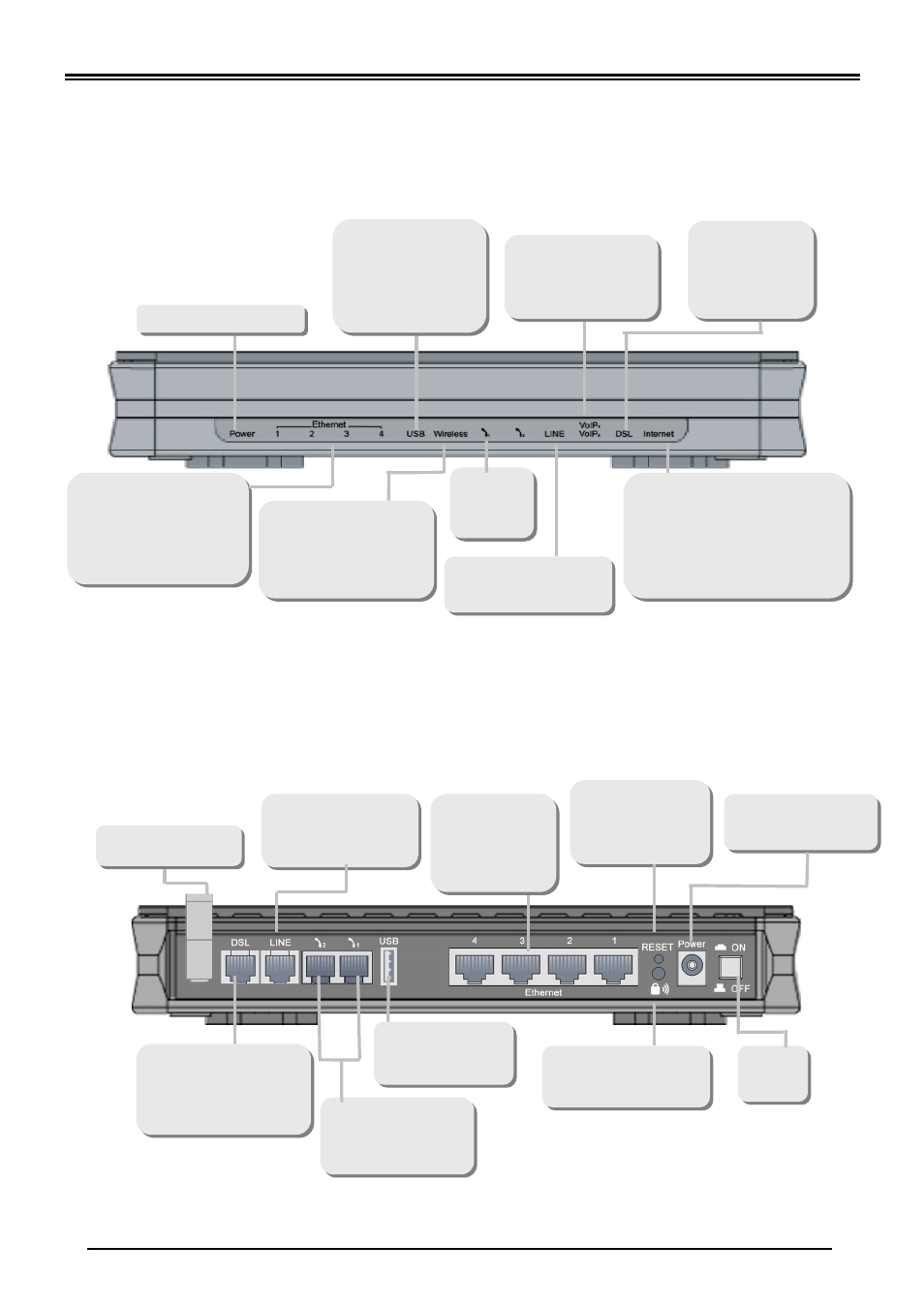

Hardware Overview
The Front LEDs
The Rear Ports
Connect the
supplied power
adapter to this jack
Connect the supplied
RJ-11 cable to this port
when connecting to the
ADSL/telephone
network
Press it to reset
the device or
restore to factory
default settings
Connect your
computer to a
LAN port, using
the included
Ethernet cable
Connect the
detachable antenna
Lit when power is ON
Connect RJ-11 cable
to this port when
connecting to the
telephone wall jack
Connect RJ-11 cable
to this port when
connecting to an
analog phone set
Lit when connected to an
Ethernet device.
Green for 100Mbps;
Orange for 10Mbps.
Blinking when data is
Transmitted / Received
Lit green
when the
phone is
off-hook
Lit Green when
successfully
connected to an
ADSL DSLAM,
(“line sync”).
Lit green when the
wireless connection is
established.
Flashes when sending /
receiving data
Lit green when the
USB device is ready.
Flashes when
sending/ receiving
data.
Power
ON/OFF
switch
Lit green when IP connected.
Flashes green when IP
connected and IP traffic is
passing thru the device.
Lit red when device attempted
to become IP connected and
failed
Lit when successfully
connected to PSTN.
Lit when the SIP
Registration is OK.
Green for Phone 1;
Orange for Phone 2
Push WPS button to
trigger Wi-Fi Protected
Setup
3G/ HSDPA USB
modem backup for
Internet access
