Hardware Overview
BiPAC 5200N/7300N

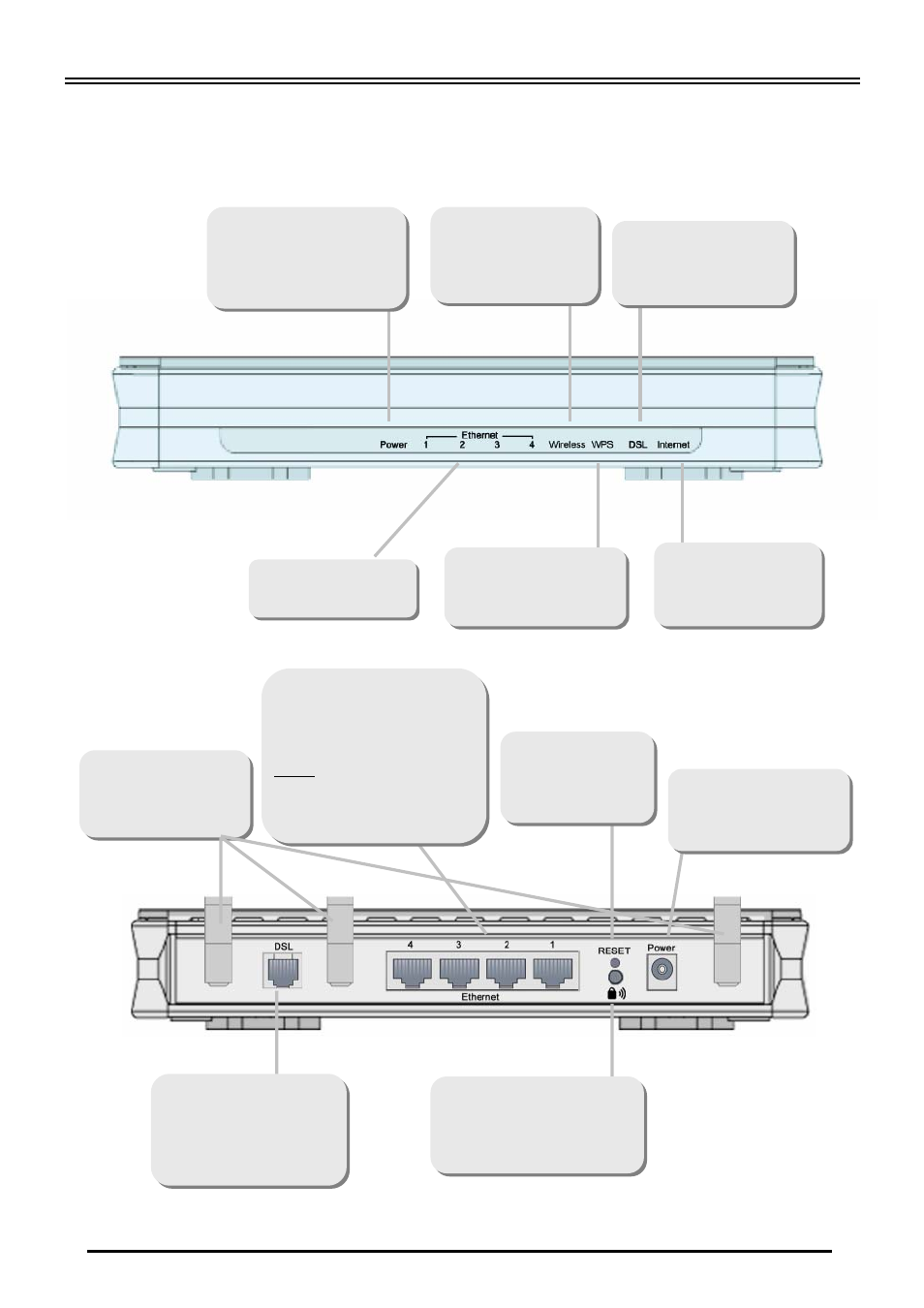

The Front LEDs
The Rear Ports
Connect the supplied
power adapter to this
jack.
Connect the supplied
RJ-11 cable to this
port when connecting
to the ADSL/telephone
network. Push the WPS button to
trigger the Wi-Fi
Protected Setup function.
(5200N: Future release)
When the power is
plugged in, it will lit Red
and when the system is
ready, it will lit Green.
Lit when
connected to an
Ethernet device. Lit when WPS is in
progress.
(5200N:Future release)
Lit green when the
wireless connection
is established.
Lit steady when
there is a PPPoA /
PPPoE connection.
Lit when successfully
connected to an ADSL
DSLAM
connection.
Connect your computer to a
LAN port, using the included
Ethernet cable.
BiPAC
7300N offers its Ethernet
port 1 as a WAN port to be
used to connect to Cable
Modems , VDSL, fiber and
PON optic lines. (EWAN)
Press it to reset the
device or restore to
factory default
settings.
Connect the fixed
antenna-5200N;
detachable
antenna-7300N.
