MOUNTING
BRACKET
ASSEMBLY
POLE
NYLON
TIE MOUNTING
HOOKS
& WING NUTS
MOUNTING
HOOKS
& WING NUTS
POLE
NYLON
TIE
MOUNTING HOOKS
& WING NUTS
TOP
CHAIN
BOTTOM
CHAIN
2

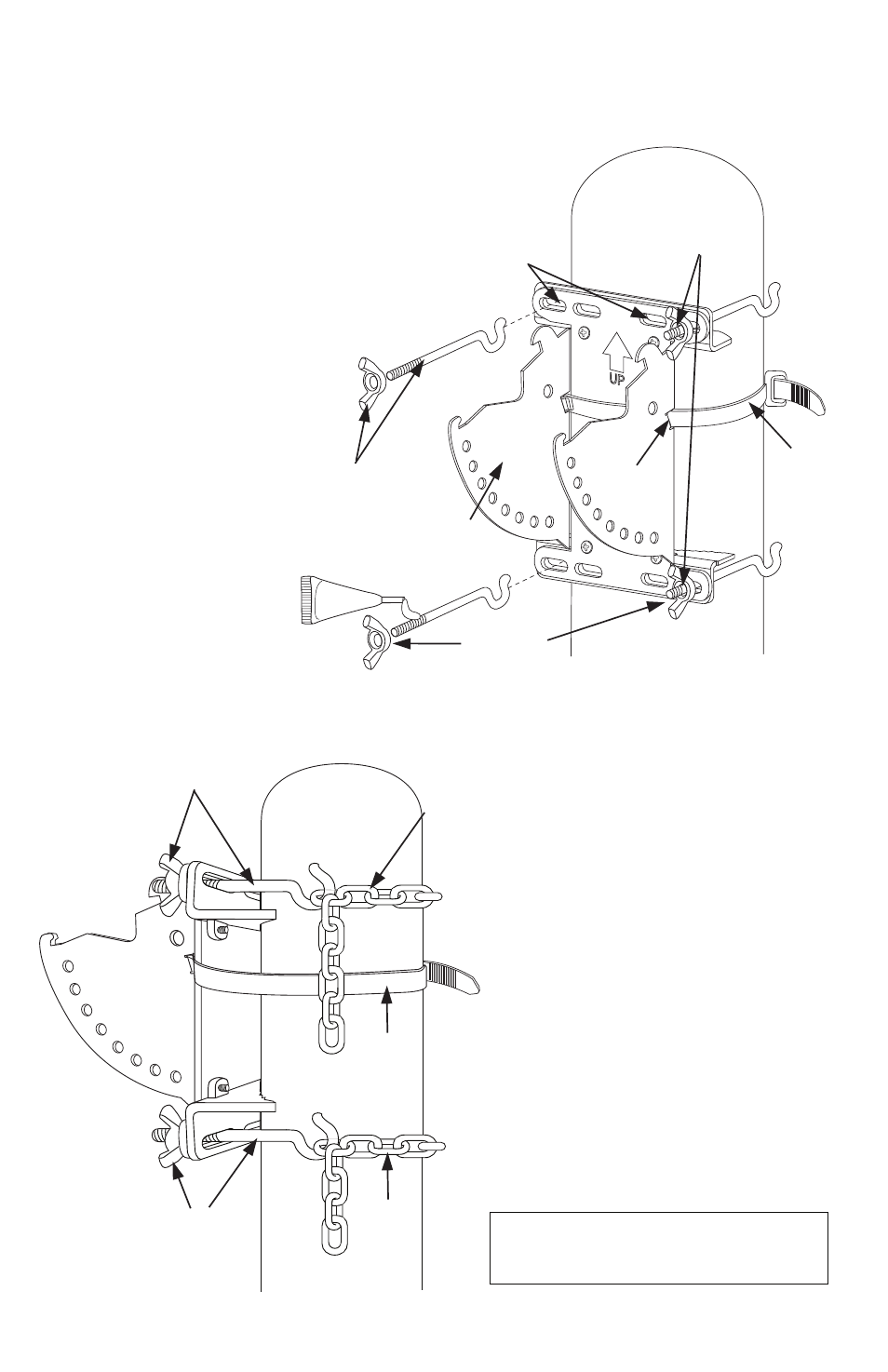

Attaching the Mounting Bracket
Assembly to a Pole
A) Thread NYLON TIE thru Tie Slots and around
pole to TEMPORARILY hold the Mounting
Bracket Assembly in place on pole.
B) Apply a bead of THREAD LOCKING
COMPOUND onto each Hook.
Insert (4) MOUNTING CHAIN
HOOKS and attached
WING NUTS through
the most appropriate top
& bottom Bracket
Assembly slots.
C) With Hooks fully extended, attach
one end of MOUNTING CHAIN to
one of the Top Mounting Hooks.
Pull the Chain tight to Pole and then
attach shortest link to corresponding
Top Hook. (To keep chain from being
jammed by the hook, place link on
outside of the Hook.) Spin Wing Nuts
down evenly, enough to keep the
Assembly in place.
D) Repeat process for Bottom Hooks
and Chains.
E) Hand tighten all Wing Nuts evenly,
ensuring Mounting Bracket Assembly
is difficult to rotate on the Pole. Then
“tap” the chain sharply to remove any
slack and fully re-tighten all Wing Nuts.
IMPORTANT: HAND TIGHTEN ONLY.
EXCESS TIGHTENING MAY CAUSE
HOOK ENDS TO SPREAD.
TIE SLOT
MOUNTING
BRACKET
ASSEMBLY
SLOTS
MOUNTING
BRACKET
ASSEMBLY
MOUNTING
HOOKS
& WING NUTS
THREAD LOCKING
COMPOUND
(On All Hook Threads)
