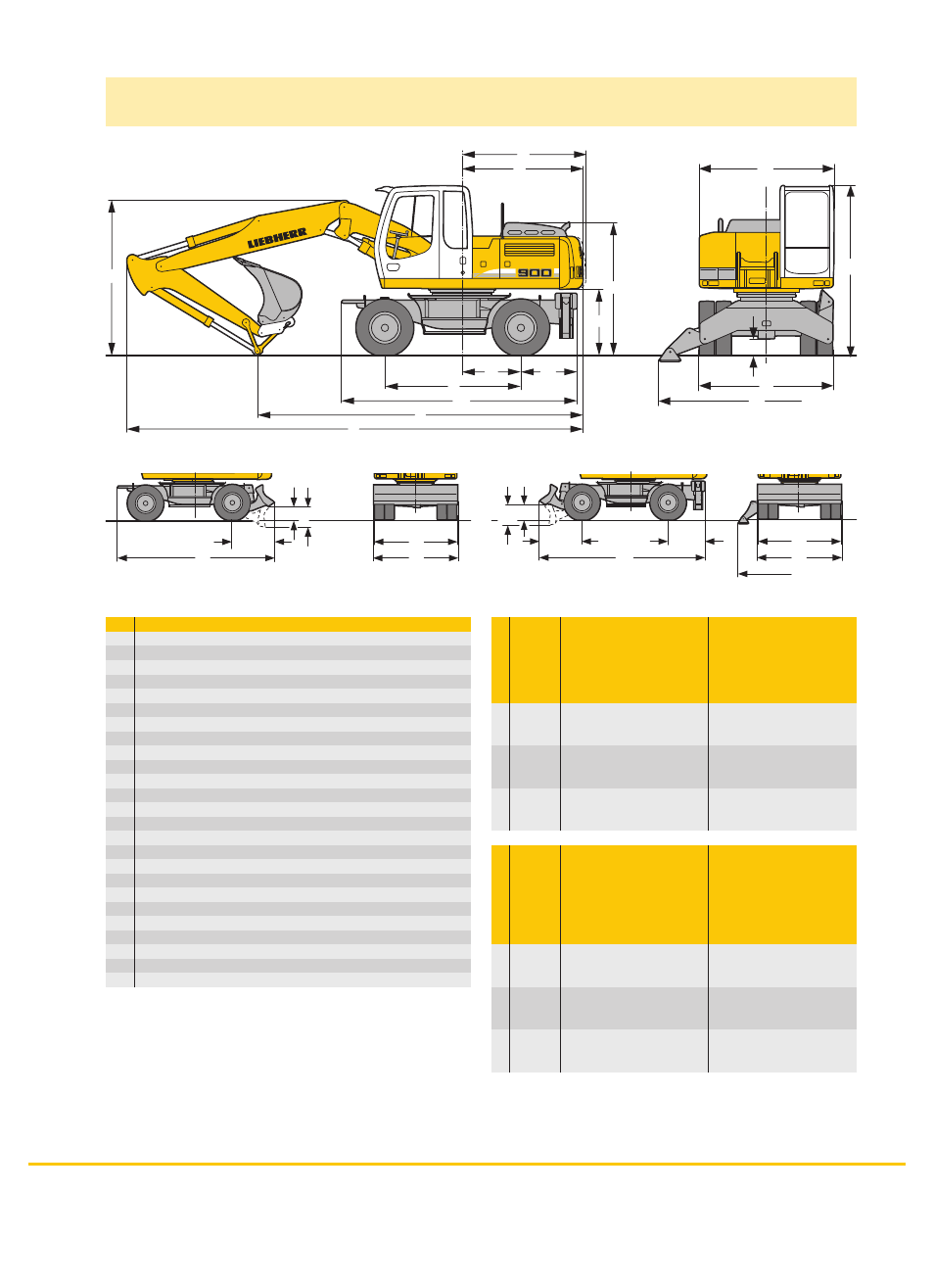

Dimensions
Stick Hydr. Adjustable Gooseneck Boom
Boom 3.60 m 5.00 m
stabil. 2 pt. blade 4 pt. stabil. 2 pt. blade 4 pt.
blade outr. + 2 pt. outr. blade outr. + 2 pt. outr.
outr. outr.
m mm mm mm mm mm mm mm mm
V 2.25 6,250 6,200 6,200 6,200 5,850 5,800 5,800 5,800
2.45 5,950 5,900 5,900 5,900 5,450 5,400 5,400 5,400
2.65 5,850 5,800 5,800 5,800 5,350 5,250 5,650 5,550*
W 2.25 3,050 3,050 3,050 3,050 3,150 3,150 3,150 3,150
2.45 3,050 3,050 3,050 3,050 3,050 3,050 3,050 3,050
2.65 3,100 3,100 3,100 3,100 3,100 3,100 3,100 3,100*
X 2.25 8,700 8,650 8,650 8,650 8,500 8,400 8,400 8,400
2.45 8,700 8,650 8,650 8,650 8,450 8,400 8,400 8,400
2.65 8,700 8,650 8,650 8,650 8,500 8,400 8,800 8,700*
Stick Adjustable Up/Down Adjustable Offset
Plus Offset Boom Boom 4.90 m
3.60 m
stabil. 2 pt. blade 4 pt. stabil. 2 pt. blade 4 pt.
blade outr. + 2 pt. outr. blade outr. + 2 pt. outr.
outr. outr.
m mm mm mm mm mm mm mm mm
V 2.25 6,250 6,150 6,100 6,150 6,250 6,150 6,150 6,150
2.45 6,000 5,900 5,900 5,900 5,700 5,650 5,650 5,650
2.65 5,900 5,800 5,800 5,800 5,300 5,250 5,650 5,500
W 2.25 3,050 3,050 3,050 3,050 3,150 3,150 3,150 3,150
2.45 3,050 3,050 3,050 3,050 3,050 3,050 3,050 3,050
2.65 3,150 3,150 3,150 3,150 3,000 3,000 3,000 3,000
X 2.25 8,700 8,650 8,650 8,650 8,350 8,300 8,300 8,300
2.45 8,700 8,650 8,650 8,650 8,400 8,300 8,300 8,300
2.65 8,700 8,650 8,650 8,650 8,400 8,300 8,750 8,600*
Dimensions are with attachment over steering axle
* Attachment over digging axle for shorter transport dimensions
mm
A 2,550
B 2,550
B 1) 2,750
B1 3,690
B2 2,550
B2 1) 2,750
B3 2,550
C 3,160
D 2,260
E 2,330
H 2,465
I2 425
I3 380
J2 605
J3 585
K 1,235
L 2,540
M 1,100
Q 360
T1 1,050
T2 1,225
T3 1,155
U1 4,390
U2 4,575
U3 4,740
1) = EW-Undercarriage
E = Tail radius
Tires 10.00-20
V
M
L
U1
T1
K
W
D
E
X
H
C
B
Q
A
B1
T2
U2
I2 J2
B2
B
B3
B
B1
T3
I3 J3
U3
T1
