LH 80 M Litronic Machine for Industrial Applications
IndustrialAttachment
withIndustrial-TypeAngledMonoBoom11.50m
ft
m
ft
m
70
22
20
18
16
14
12
10
8
6
4
2
0
-2
-4
-6
-8
-12
-10
65
60
55
50
45
40
35
30
25
20
15
10
5
0
-5
-10
-15
-20
-25
-30
-35
0
2
4
6
8
10
12
14
16
18
20
22
65
70
60 55 50 45 40 35 30 25 20 15 10 5 0
1
2
3
4

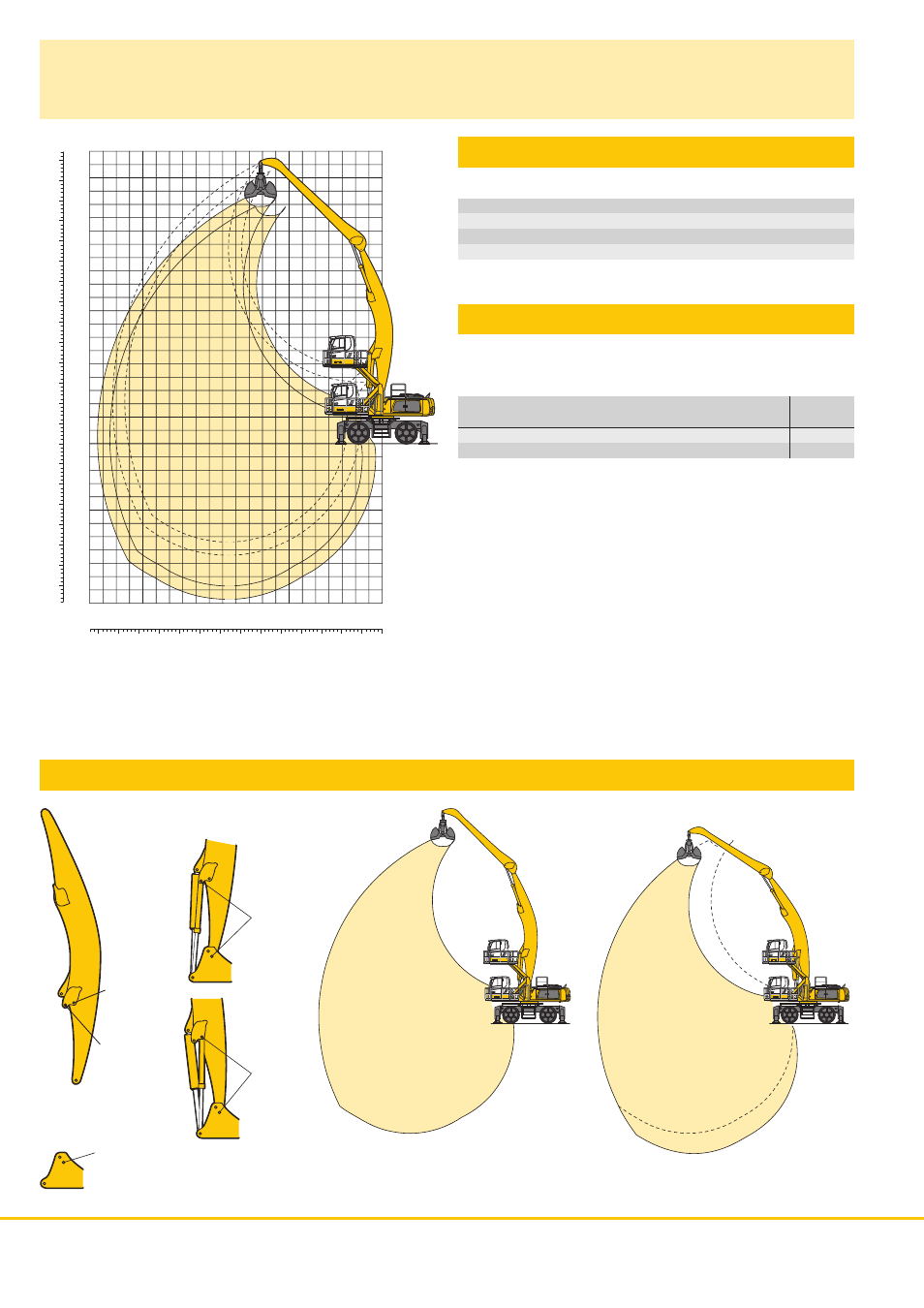

AttachmentEnvelope
Kinematic variant 2D
1 with industrial stick 9.00 m
2 with industrial stick 10.00 m
3 with industrial stick 9.00 m and clamshell model GM 22C
4 with industrial stick 10.00 m and clamshell model GM 22C
OperatingWeight
The operating weight includes basic machine with 4 pt. outriggers,
hydr. cab elevation, 4 solid tires and industrial attachment with indus-
trial-type angled mono boom 11.50 m.
with clamshell model GM 22C/2.50 m
3
shells for loose material
Weight
and industrial stick 9.00 m
77,700 kg
and industrial stick 10.00 m
78,000 kg
2D
2C
Hole 2
Hole C
Hole D
Energy recovery with
kinematic variant
2C
Energy recovery with
kinematic variant
2D
KinematicVariant2D
KinematicVariant2C
Altered range curve with additional reach
depth, e.g. for unloading from ships
2D
2C
KinematicVariants2D/2C
