Front attachment, Way-blade, With inside – Liebherr PR 724 Litronic User Manual
Page 14: Mounted, Push frame
14
PR 724 Litronic
Front attachment
6-way-blade
6-way blade 6-way blade 6-way blade 6-way blade 6-way blade 6-way blade
with inside
with hinged
with hinged
with hinged
mounted
corners
corners
corners
push frame
1
L
L
XL
XL
LGP
LGP
Blade capacity according to
m
3
3.17
3.17
3.17
3.17
3.39
3.39
ISO 9246
yd
3
4.15
4.15
4.15
4.15
4.43
4.43

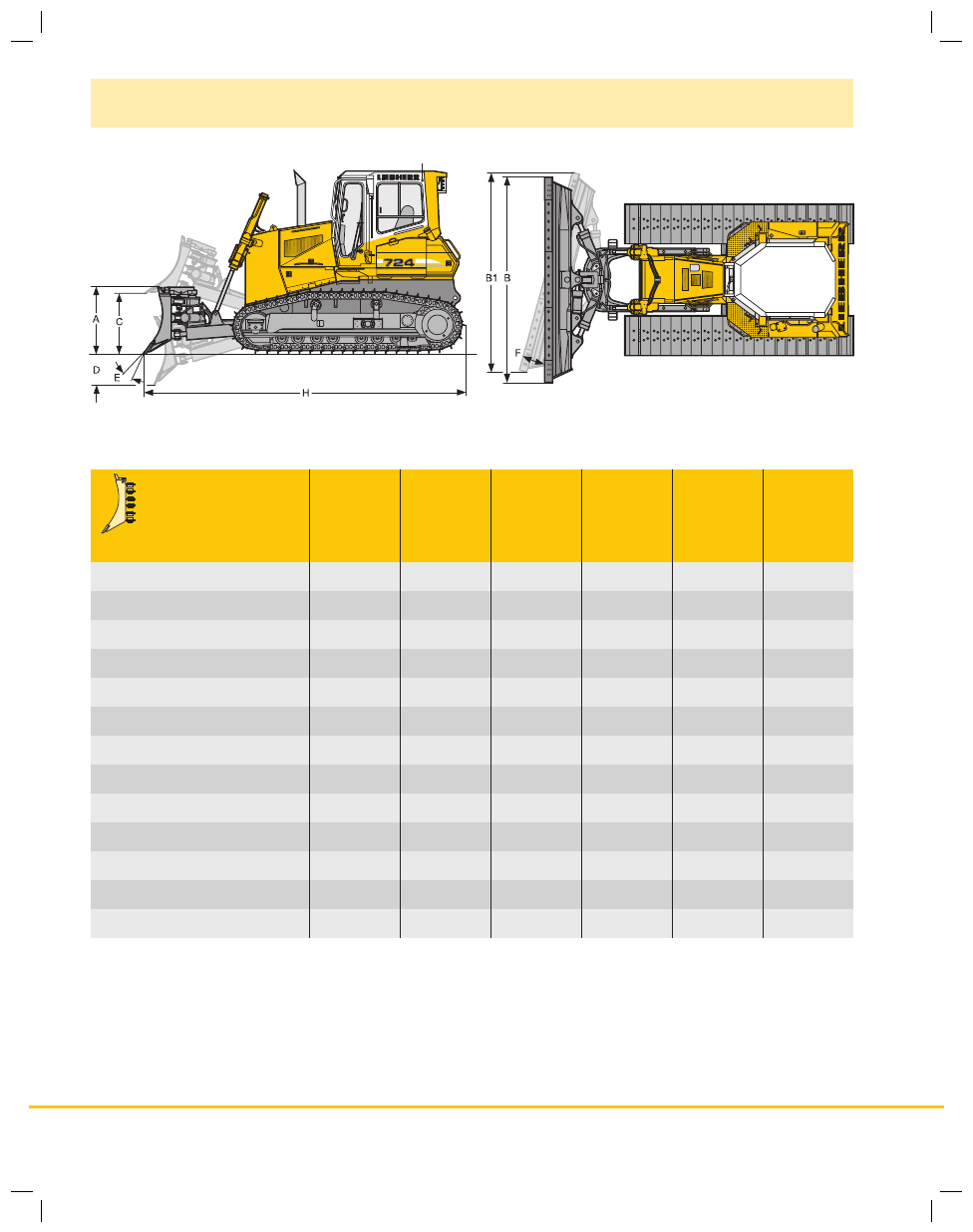

A Height of blade
mm
1,200
1,200
1,200
1,200
1,100
1,100
ft in
3’11”
3’11”
3’11”
3’11”
3’7”
3’7”
B Width of blade
mm
3,204
3,204
3,204
3,204
3,790
3,790
ft in
10’6”
10’6”
10’6”
10’6”
12’5”
12’5”
B1 Width of blade angled
mm
2,997
3,081
2,997
3,081
3,537
3,638
ft in
9’10”
10’1”
9’10”
10’1”
11’7”
11’11”
Transport width
mm
2,997
2,430
2,997
2,430
3,537
3,000
ft in
9’10”
8’
9’10”
8’
11’7”
9’10”
C Lifting height
mm
1,149
1,149
1,187
1,187
1,174
1,174
ft in
3’9”
3’9”
3’11”
3’11”
3’10”
3’10”
D Depth below ground
mm
532
532
510
510
504
504
in
21”
21”
20”
20”
20”
20”
E Max. blade pitch
5°
5°
5°
5°
5°
5°
F Angle adjustment
23°
18°
23°
18°
23°
18°
Max. blade tilt
mm
474
474
474
474
560
560
in
19”
19”
19”
19”
22”
22”
H Overall length, blade straight
mm
5,369
5,369
5,501
5,501
5,468
5,468
ft in
17’7”
17’7”
18’11”
18’11”
17’11”
17’11”
Operating weight
2
kg
16,867
17,202
17,427
17,762
18,437
18,772
lb
37,185
37,924
38,420
39,158
40,647
41,385
Ground pressure
2
kg/cm
2
0.49
0.50
0.44
0.45
0.31
0.32
PSI
6.97
7.11
6.26
6.4
4.41
4.55
1
Optional outside-mounted push frame (See Attachment-Information concerning the 6-way blade with outside-mounted push frame)
2
Lubricants and fuels, 6-way blade, operator, track pads 610 mm/24” (L and XL) resp. 914 mm/36” (LGP)
