R 980 SME Litronic 11
Front Shovel
0 m 1
0
-1
-3
-4
-2
11
12
13
10
9
8
7
6
5
4
3
2
1
0
-5
-10
35
40
30
m
R0024
ft
25
20
15
10
5
2 3 4 5
5 10 15 20 25 30 35
6 7 8 9 10 11
0 ft
T

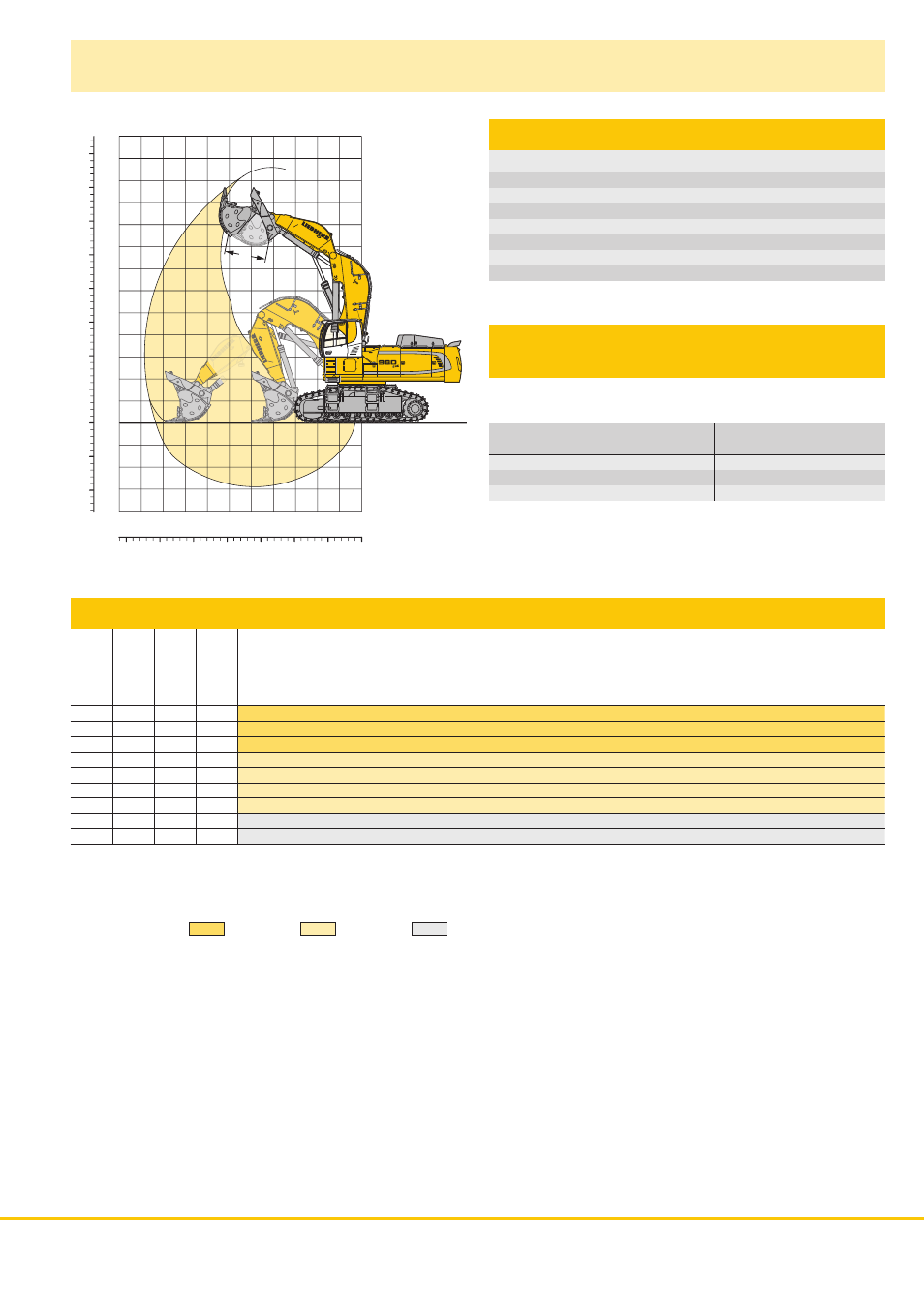

Digging Envelope
Max. reach at ground level 9.35 m
Max. dump height 8.00 m
Max. crowd length 3.90 m
Bucket opening width T 1,825 mm
Max. crowd force 690 kN/70.4 t
Max. crowd force at ground level 490 kN/50.0 t
Max. breakout force 500 kN/51.0 t
Operating Weight
and Ground Pressure
Operating weight includes basic machine with cab elevation 800 mm,
shovel attachment SME and front shovel 6.00 m
3 (10,700 kg), level II.
Undercarriage S-HD
Pad width mm 500 600 750
Weight kg 98,400 100,000 102,300
Ground pressure kg/cm 2 1.87 1.59 1.30
Level I: For non-abrasive materials, such as limestone without flint inclusion, shot material or easily breakable rock,
i.e., deteriorated rock, soft limestone, shale, etc.
Level II: For pre-blasted heavy rock, or deteriorated, cracked material (classification 3 to 4, accord. to DIN 18300)
Level III: For highly-abrasive materials such as rock with a high silica content, sandstone etc.
Max. material weight X = ≤ 2.2 t/m 3 , Y = ≤ 1.8 t/m 3 , V = ≤ 1.65 t/m 3
Front Shovels
Cutting width Capacity ISO 7451 Weight Wear kit level
S-HD-Undercarriage
Shovel Attachment
mm m 3 kg
2,700 5.10 10,150 III X
2,700 5.60 8,750 I X
2,700 5.60 9,450 II X
2,700 5.60 10,600 III Y
2,700 6.00 9,950 I Y
2,700 6.00 10,700 II Y
2,700 6.00 11,950 III Y
3,150 6.50 10,700 I V
3,150 6.50 11,600 II V
