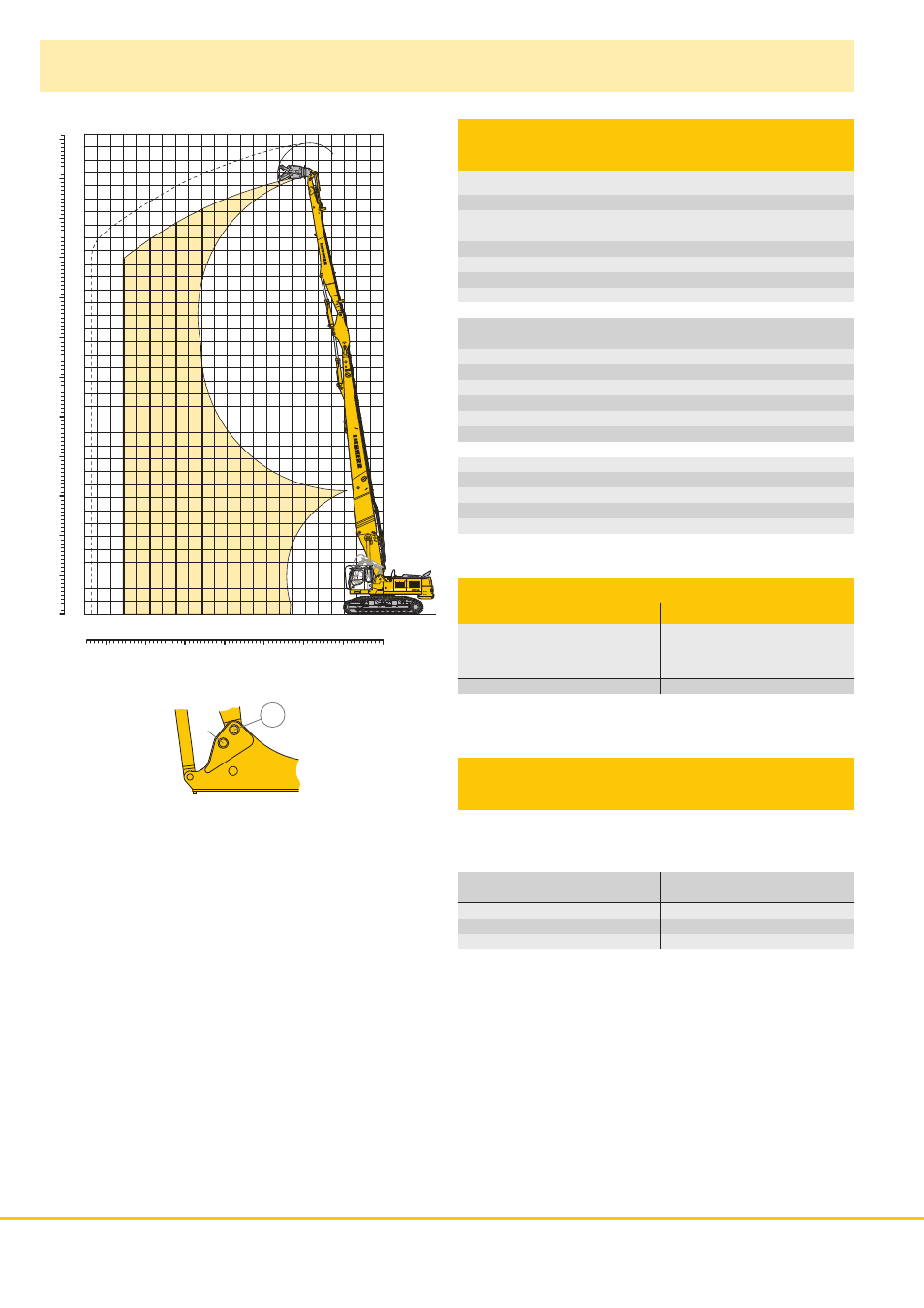

2 R 954 C Litronic Demolition Attachment 34 m
4 2 0 6 8 10 12 14 16 18 20 22
60 70 50 40 30 20 10
m
0 ft
2
4
6
8
10
12
14
16
18
20
22
24
0
26
28
30
32
34
36
0
10
20
30
40
50
60
70
80
90
100
110
120
m ft
Reach Limitation
14 m 16 m 18 m 20 m
Demolition boom 14,50 m
+ Intermediate boom
+ Demolition stick 11,00 m
Tool weight* in t
VH-HDW-Undercarriage 3,00 2,75 2,50 2,00
* included quick change adapter, adapter plate and tool
To order a complete machine
you need the following
Cab for demolition application tiltable 30°
Hydraulic control for rotary drive
Hydraulic control for hammer/shears with Tool Control and Liebherr-
Demolition-Control (LDC)
Hoist cylinders with regeration plus and load holding valves
Basic boom pinned in mounting hole III of boom foot bracket
Heavy counterweight 14,5 t (removable 10,8 t)
Hydraulic accessory for quick change adapter on basic boom
For demolition application, following additional items
are also required:
Demolition boom 14,50 m
Intermediate boom 2,50 m
Demolition stick 11,00 m with linkage 932 Li
Tool (backhoe bucket, demolition shears, concrete nibblers, etc.)
Supports for demolition attachment
Integral protection grid for cab FOPS
Optional
Integral protection grid for cab on tilting device FOPS
Hydraulic for removable counterweight
Storage rack with catwalks
Demolition stick with linkage 922 Li
Operating Weight
and Ground Pressure
Operating weight includes basic machine with counterweight 14,5 t,
demolition boom 14,50 m, intermediate boom, demolition stick
11,00 m and working tool 2,5 t.
Undercarriage VH-HDW
Pad width mm 600
Weight kg 85500
Ground pressure kg/cm 2 1,32
III
II
Demolition Attachment 34,00 m
Uppercarriage demolition with cab tiltable 30°
