R 950 SME Litronic 3

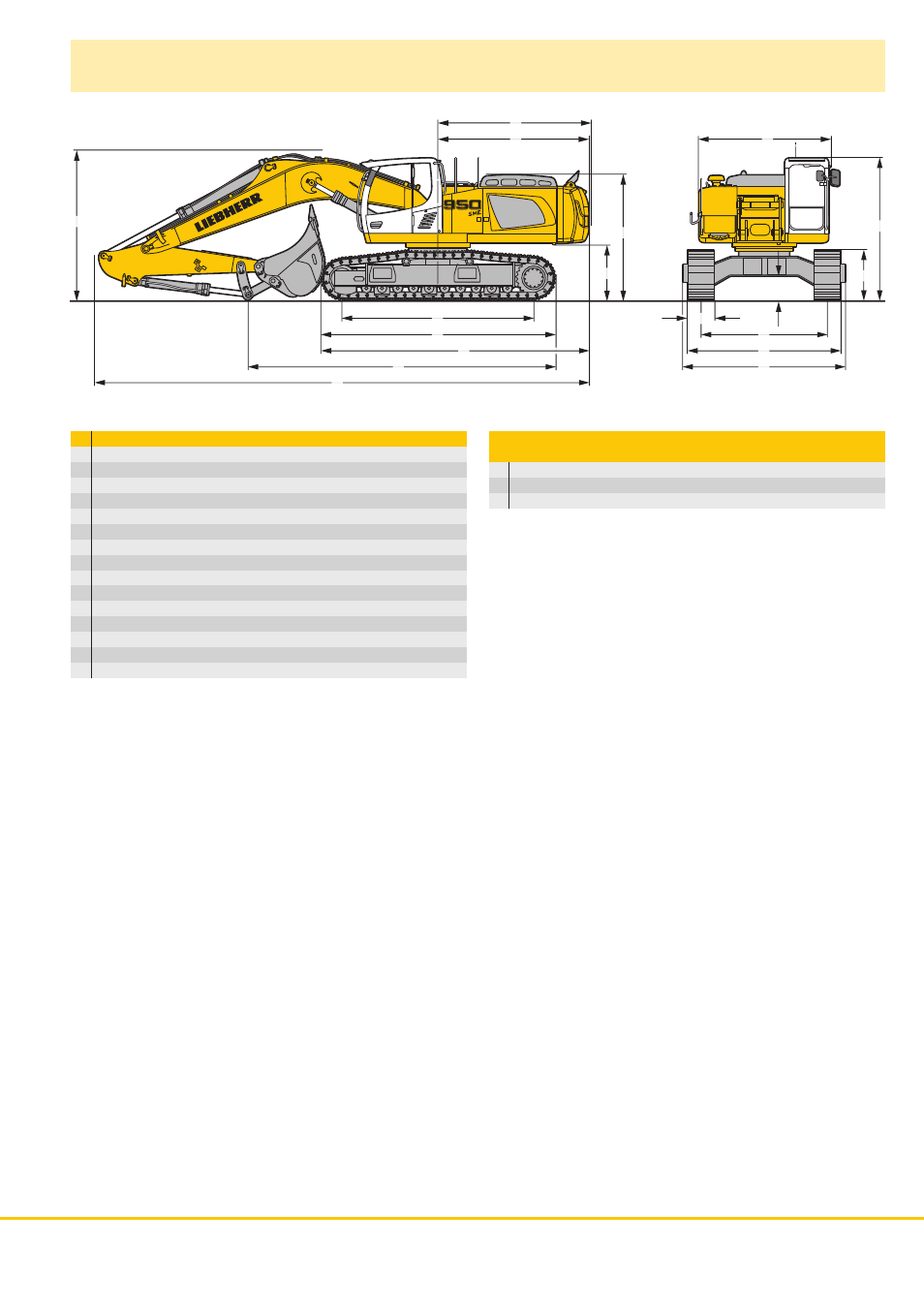

Dimensions
mm
A* 2,993
C 3,260/3,455**
D 3,470
E 3,500
H 2,890
K 1,280
L 4,400
P 1,155
Q 550
S 2,900
U 5,370
Z 6,145
N 500 600 750
B 3,462 3,500 3,650
G 3,712 3,712 3,712
* without door stop device and spacer
** with FOPS top guard
Gooseneck Boom 6.45 m SME
Stick Length 2.60 m SME mm
V 7,050
W 3,450
X 11,350
