24 R 944 C Litronic High Rise

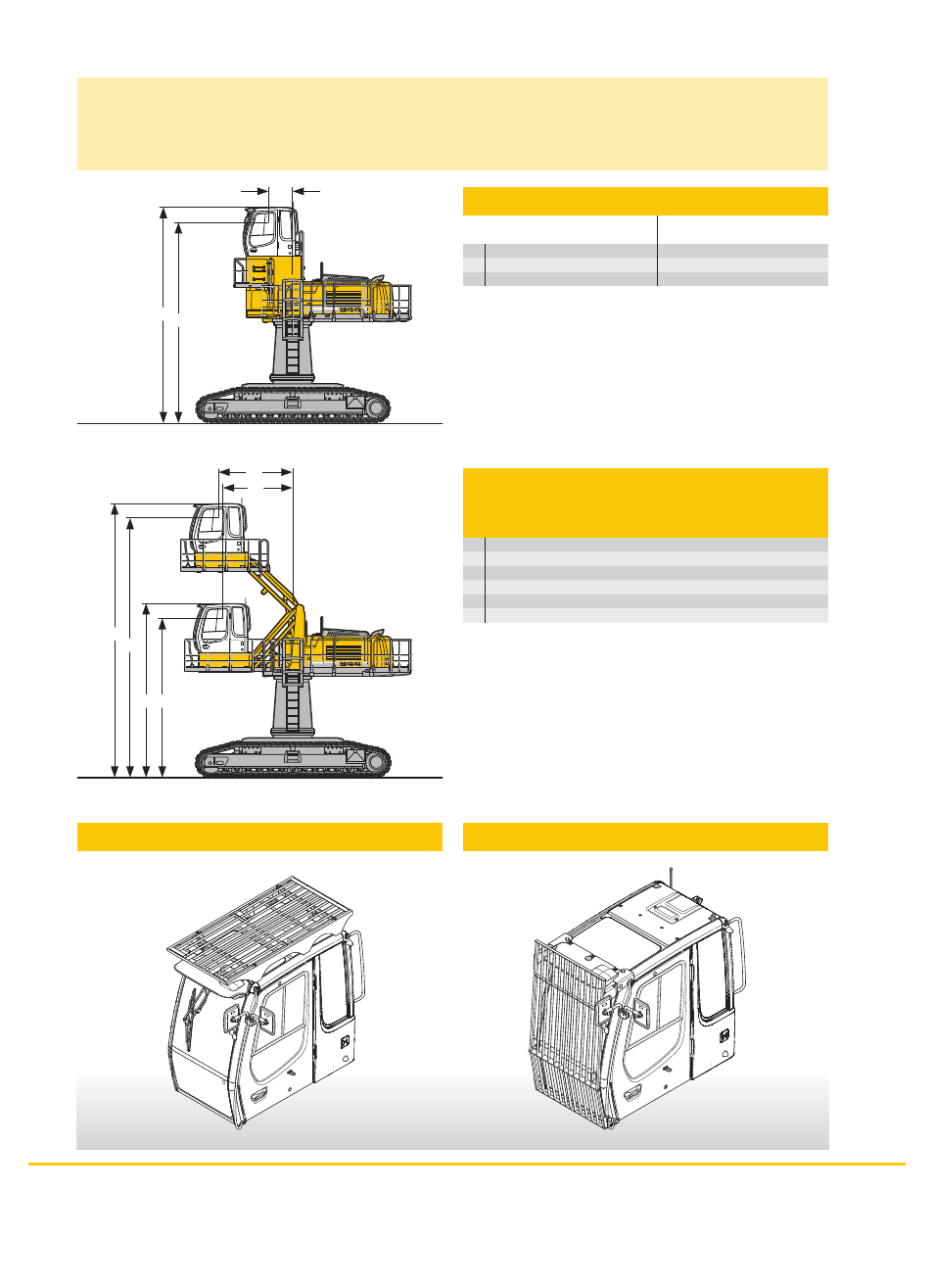

Choice of Cab Elevation
and Cab Protection
Rigid Cab Elevation
Height 1,200 mm 2,000 mm
B 6,380 mm 7,180 mm
C 6,890 mm 7,690 mm
D 880 mm 880 mm
Decreased weight with Rigid Cab Elevation 1,200 mm in relation to
Hydraulic Cab Elevation Parallelogram + Intermediate Piece 0.5 m:
1,800 kg
Decreased weight with Rigid Cab Elevation 2,000 mm in relation to
Hydraulic Cab Elevation Parallelogram + Intermediate Piece 0.5 m:
1,600 kg
Hydraulic Cab Elevation
Parallelogram
+ Intermediate Piece 0.5 m
B1 5,680 mm
B2 9,265 mm
C1 6,180 mm
C2 9,765 mm
D1 2,500 mm
D2 2,650 mm
FOPS Guard Front Guard
C2
B2
C1 B1
D1
D2
C1
B1
D
