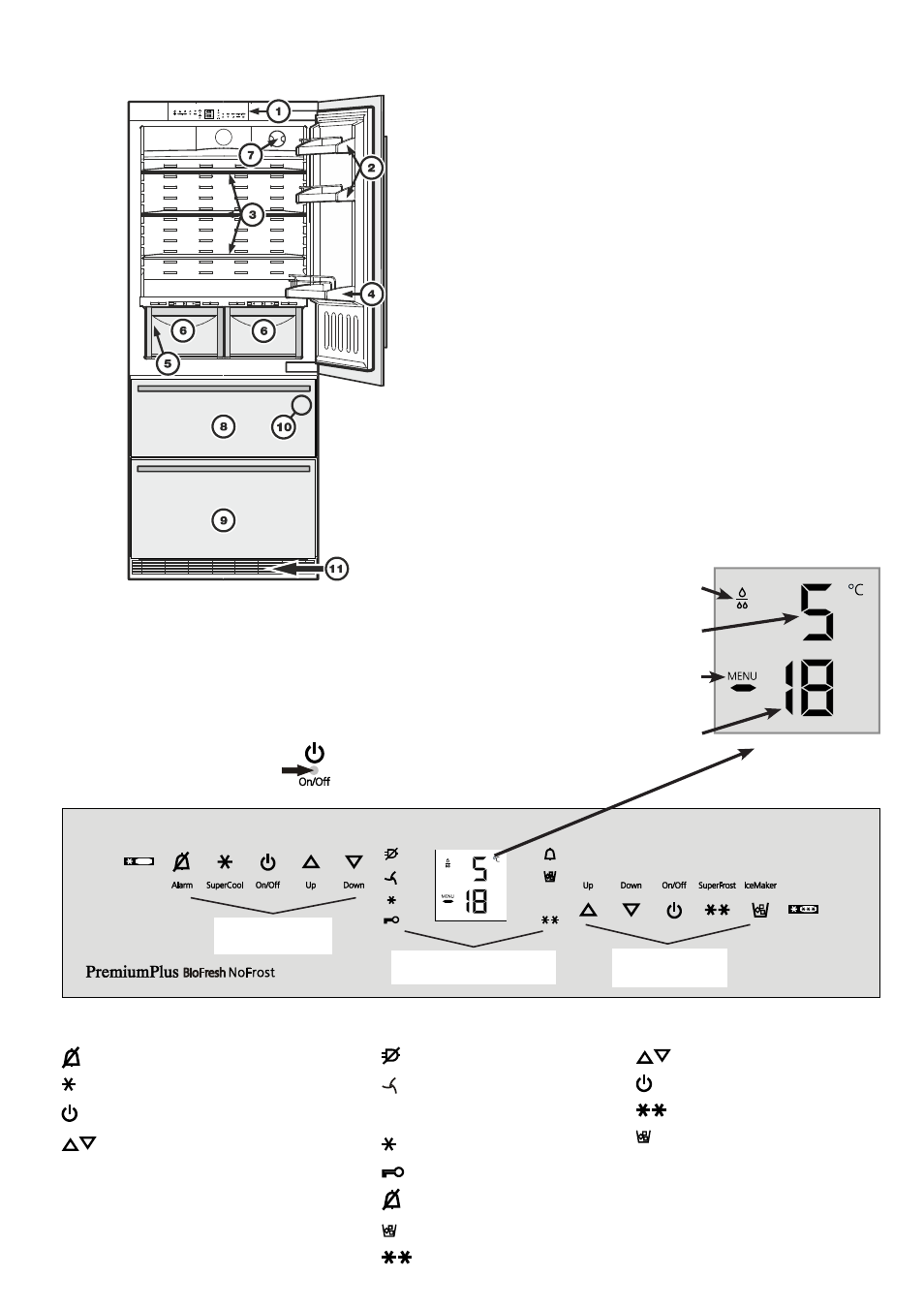

Description of the appliance
1 Operating and control elements
2 Adjustable door racks
3 Adjustable storage shelves
4 Bottle racks
5 Type plate (behind the vegetable drawer on the left-hand side)
6 Vegetable drawers
7 Water filter
8 Upper freezer drawer
9 Lower freezer drawer
bl IceMaker (in the interior of the upper freezer drawer)
bm Ventilation grille. In this area, the exchange of air for the refrigeration
unit takes place.
Never cover this grille or otherwise obstruct the air flow!
Freezer operating icons
Temperature setting icons
Freezer ON/OFF
SuperFrost
IceMaker ON/OFF
Refrigerator
operating icons
Refrigerator operating icons
Mute alarm (refrigerator and freezer)
SuperCool
Refrigerator ON/OFF
Temperature setting buttons
Freezer
operating icons
Control icons
Power failure LED
Dust filter LED
The dust filter in the appliance
plinth must be cleaned.
SuperCool LED
Child lock LED
Alarm LED
IceMaker ON LED
SuperFrost LED
Control
icons
Temperature and control display
Refrigerator temperature display
Freezer temperature display
Water filter has to be changed
Menu mode is activated
(for setting additional functions)
Operating and control elements
The electronic control panel has the "touch capacitance
technology". Any function can be activated by touching the
corresponding icon.
The exact contact point
is between the symbol and its label
